Bosch Rexroth R026130000

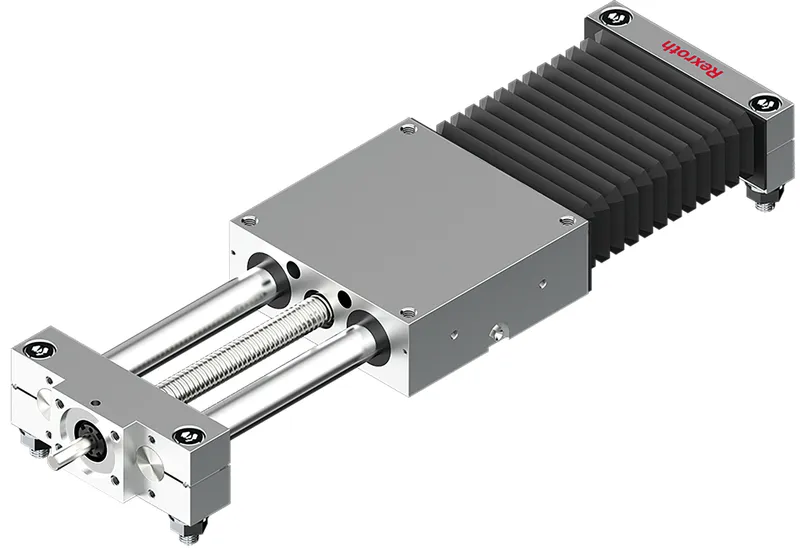

LINEAR SLIDE SGK-160-NN-1
- MPN
- R026130000
- Category
- Linear motion slides
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R026130000?
Closed format for unsupported installation
High feed forces
Particularly suitable for environments with high contamination levels (closed bellows)
High travel speed due to large leads
Rexroth precision ball screw assembly in rolled version, tolerance grade T7 in accordance with DIN 69051 with backlash-free cylindrical nut
Cost-effective maintenance through central lubrication (grease lubrication) on both sides of the guide system
Easy motor attachment via locating feature and threads
Extensive accessories available
Specifications
Specifications
| Nominal size [mm] | SGK-160 |
| Linear axes variant | Closed with ball screw assembly |
| Maximum acceleration rate amax [m/s²] | 27.0 |
| Maximum permissible linear speed vmax [m/s] | 1.26 |
| Max. length Lmax [mm] | 3000.0 |
| Dynamic load capacity, guideway Cgw [N] | 12830 |
| Dynamic load capacity, fixed bearing Cfb [N] | 17000 |
| Dynamic load capacity, ball screw assembly Cbs [N] | 15700 |
| Dynamic torsional moment load capacity Mt [Nm] | 564.0 |
| Dynamic longitudinal moment load capacity ML [Nm] | 596.0 |
| Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] | 192 |
| Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | 203 |
| Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | 203 |
| Maximum dynamic load in y-direction Fy max [N] | 4360 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | No dropping below dew point |
| Weight [kg] | 0 |
| Maximum dynamic load in z-direction Fz max [N] | 4360 |
