Linear motion slides Parts
Compare Linear motion slides
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Dynamic load capacity, guideway Cgw [N] | Dynamic torsional moment load capacity Mt [Nm] | Dynamic longitudinal moment load capacity ML [Nm] | Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] |
|---|---|---|---|---|---|
| R026560000 | SOO-280 | 36380 | 1687.0 | 1853.0 | 644 |
| R026550000 | SOO-230 | 24950 | 928.0 | 1057.0 | 350 |
| R026540000 | SOO-180 | 14520 | 425.0 | 447.0 | 177 |
| R026530000 | SOO-160 | 11950 | 320.0 | 339.0 | 127 |
| R026520000 | SOO-130 | 6100 | 134.0 | 141.0 | 49 |
| R026510000 | SOO-100 | 3440 | 39.0 | 41.0 | 16 |
| R026500000 | SOO-085 | 2850 | 25.0 | 27.0 | 10 |
| R026660000 | SOK-280 | 36380 | 1687.0 | 1853.0 | 644 |
| R026650000 | SOK-230 | 24950 | 928.0 | 1057.0 | 350 |
| R026640000 | SOK-180 | 14520 | 425.0 | 447.0 | 177 |
| R026630000 | SOK-160 | 11950 | 320.0 | 339.0 | 127 |
| R026620000 | SOK-130 | 6100 | 134.0 | 141.0 | 49 |

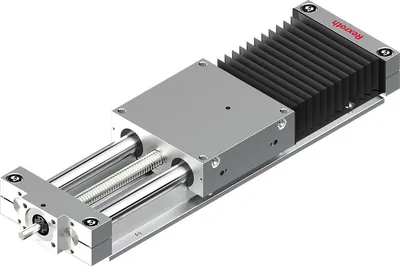

| R026610000 | SOK-100 | 3440 | 39.0 | 41.0 | 16 |
| R026600000 | SOK-085 | 2850 | 25.0 | 27.0 | 10 |
| R026060000 | SGO-280 | 39180 | 2977.0 | 3271.0 | 983 |
| R026050000 | SGO-230 | 26770 | 1633.0 | 1860.0 | 531 |
| R026040000 | SGO-180 | 15600 | 748.0 | 787.0 | 268 |
| R026030000 | SGO-160 | 12830 | 564.0 | 596.0 | 192 |
| R026020000 | SGO-130 | 6560 | 236.0 | 249.0 | 76 |
| R026010000 | SGO-100 | 3310 | 89.0 | 94.0 | 29 |

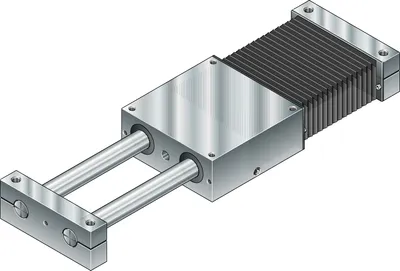

| R026000000 | SGO-085 | 2700 | 56.0 | 62.0 | 18 |
| R026090000 | SGO-065 | 1040 | 16.0 | 17.0 | 8 |
| R026160000 | SGK-280 | 39180 | 2977.0 | 3271.0 | 983 |
| R026150000 | SGK-230 | 26770 | 1633.0 | 1860.0 | 531 |
Common to all listed parts
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | No dropping below dew point |
| Weight [kg] | 0 |
