Bosch Rexroth R026090000

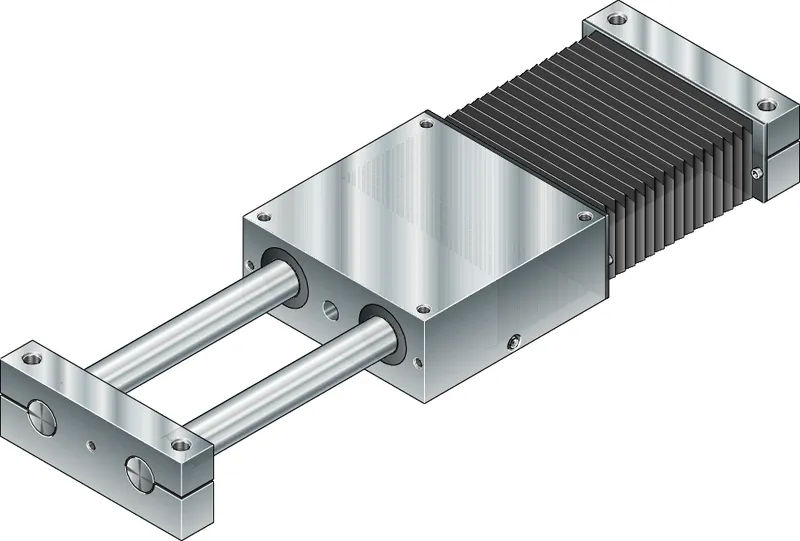

LINEAR SLIDE SGO-065-NN-1

MPN: R026090000
Category: Linear motion slides

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R026090000?

Closed format for unsupported installation

Particularly suitable for environments with high contamination levels (closed bellows)

Specifications

Nominal size [mm]	SGO-065
Linear axes variant	Closed without drive
Maximum acceleration rate amax [m/s²]	150.0
Note: Max. acceleration amax	For linear motion slides without drive SGO/SOO, unlike the SGK/SOK, there is no ball screw assembly
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by the increased wear of the plastic parts.
Max. length Lmax [mm]	700.0
Dynamic load capacity, guideway Cgw [N]	1040
Dynamic torsional moment load capacity Mt [Nm]	16.0
Dynamic longitudinal moment load capacity ML [Nm]	17.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]	8
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]	8
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]	8
Maximum dynamic load in y-direction Fy max [N]	480
Permissible ambient temperature with Rexroth servo motor (min. ... max.)	0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)	No dropping below dew point
Weight [kg]	0
Maximum dynamic load in z-direction Fz max [N]	480
