Bosch Rexroth 3842998634

BELT SECTION CSS/NT-4

MPN: 3842998634
Category: Belt section CSS/NT

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998634?

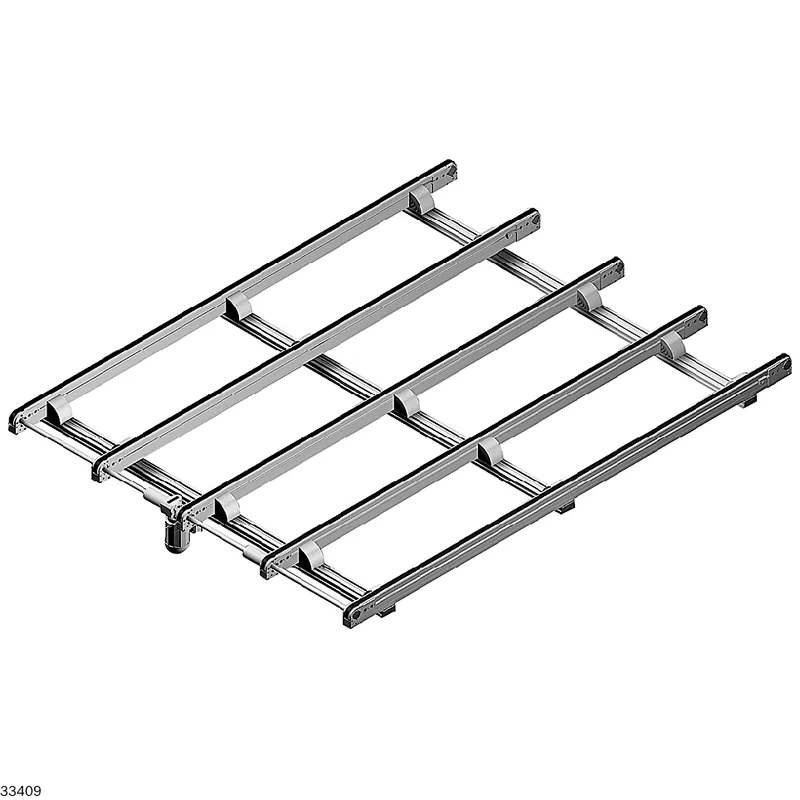

Belt section CSS/NT-4

Transport of plates up to 160 °C, e.g. as transport system after lamination

Conveyor medium with high friction coefficient allows high acceleration and deceleration

No slipping of the modules on the belt section

Longitudinal conveyor for glass modules

Suitable for transport of plates up to 160 °C, e.g. as transport system after lamination

Not intended for accumulation operation

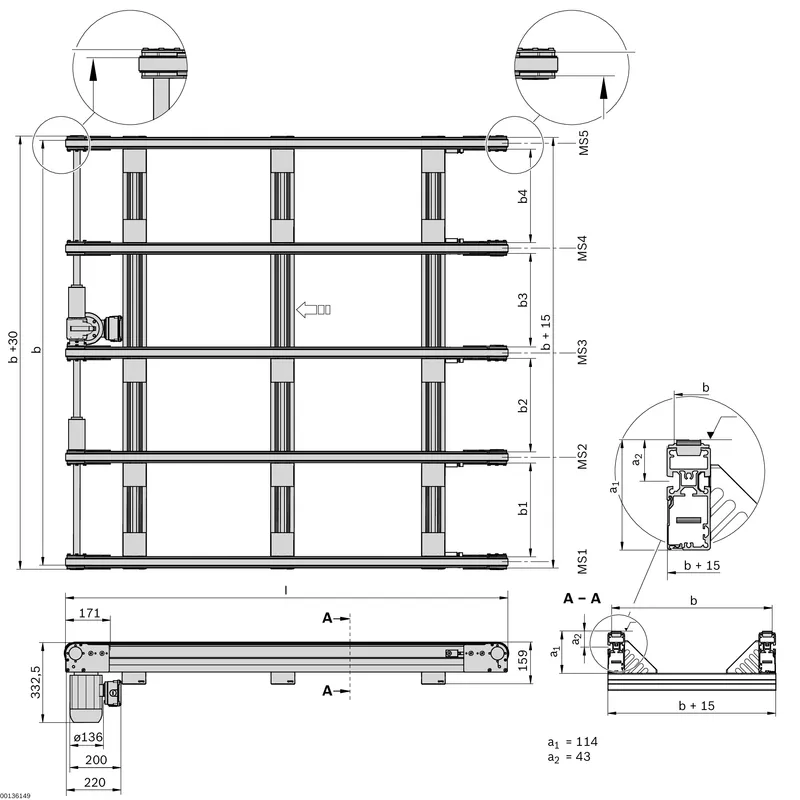

Belt section consisting of two to five tracks for secure support of the glass modules across the entire width. Distance between the tracks can be determined individually (b1 to b4). Comply with minimum dimensions

Permissible load:

‒ Per track: max. 0.3 kg/cm support surface length and max. 60 kg

‒ Per belt section: max. 120 kg

Suitable for reversible operation up to 1500 mm section length

Special textile toothed belt with Viton coating

Dynamic belt tensioner for offsetting the belt stretching due to the temperature exposure

Simple exchange of the continuous toothed belts by dismantling from the side without realignment. Also possible for inner tracks due to couplings on the hexagonal shaft

Gear motors are suitable for operation with frequency converter

Price benefit when ordering certain standard lengths as well as significant shortening of the delivery time for toothed belts in case of servicing

Suitable for use in cleanroom environments up to cleanroom class 7 in accordance with ISO 14644-1

Specifications

Length max [l max] [mm]	3000
Length min [L min] [mm]	550
Track width in direction of transport [b max] [mm]	2300
Track width in direction of transport [b min] [mm]	255
Section load in accumulation operation [kg]	120
Nominal speed [vN]	0 m/min, U = 0, f = 0: ohne Motor und ohne Getriebe; 0 m/min, U = 0, f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll); 12 m/min; 15 m/min; 18 m/min; 36 m/min; 6 m/min; 9 m/min
Tracks	4
Delivery information	Motor included separately
Notice	Length deviation ± 0.5%; bx<sub>min</sub> = 350 mm for motor mounting between the tracks
Track width [b1 min] [mm]	180
Track width [b1 max] [mm]	1000
Track width [b2 min] [mm]	180
Track width [b2 max] [mm]	1000
Track width [b3 min] [mm]	180
Track width [b4 min] [mm]	180
Track width [b3 max] [mm]	1000
Track width [b4 max] [mm]	1000
Recommended accessories	Frames SFS; Frequency converter FU; Leg set SZS/N; Toothed belt tensioner (as tool for belt replacement)
Weight [kg]	0
