What is the Bosch Rexroth 3842998249?

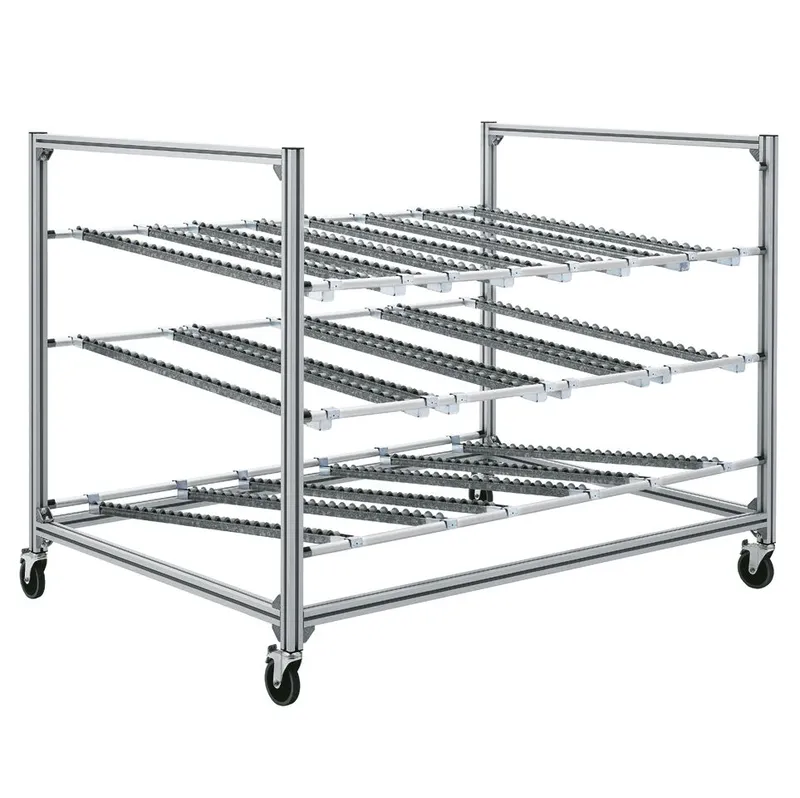

Flow Rack XLean

Material supply in the supermarket or directly at the workstation

Cost-effective solution with conveyor tracks consisting of steel profiles and plastic rollers

Available as ESD-conductive version

Design: Fully assembled or as a kit for self-assembly

Allows for the addition of any desired modules, including cross ties and conveyor tracks as well as individual components

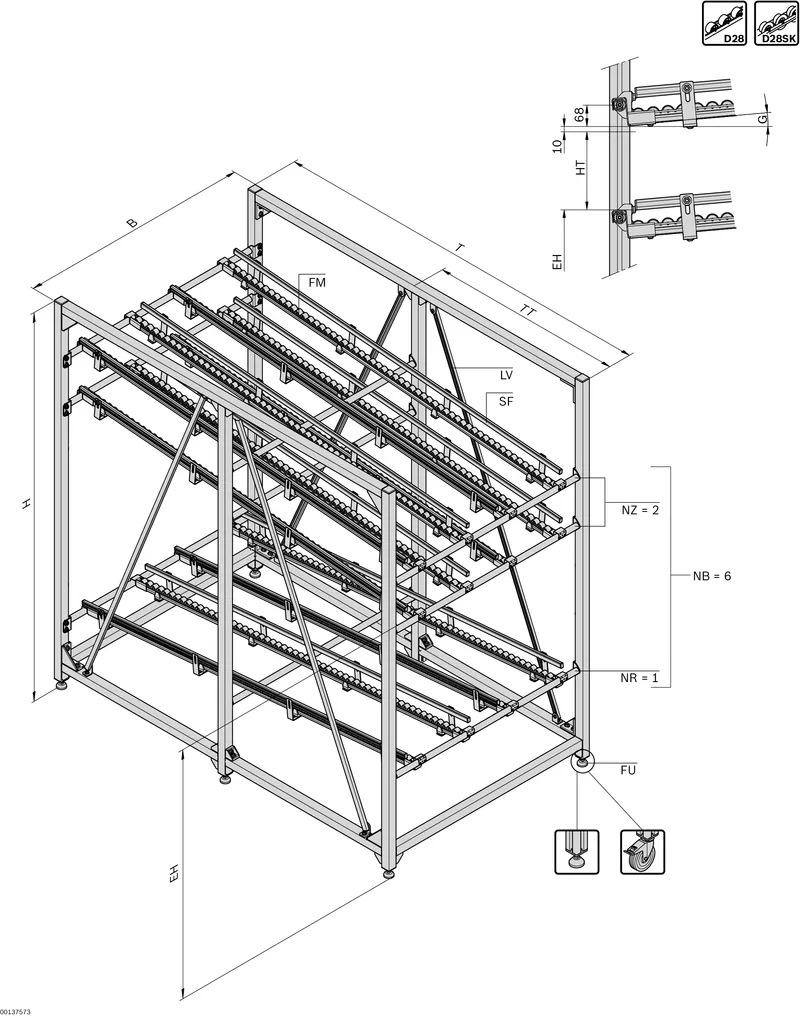

Specifications

Conductivity [ESD]	yes, no
Packaging unit	1
Version [A]	Disassembled, assembled
Foot type [FU]	Leveling foot, LR
Load version [LV]	400 kg, 2000 kg
Conveyor medium FM	Rollers with Ø28 mm with/without roller flange
Gradient G	0 ... 10 % (recommended: 6 %)
Lateral guide SF	with; without
Number of conveyor tracks [NB]	0 ... 64
Number of return levels [NR]	0 ... 7
Number of supply levels [NZ]	1 ... 8
Cross tie type [PT]	Tubular cross tie, tubular cross tie with bracket, double tubular cross tie
Number of side elements [Typ]	0, 1, 2
Flow rack system width min [B] [mm]	400
Flow rack system width max [B] [mm]	1500
Removal height of the lower supply level min [EH] [mm]	263
Removal height of the lower supply level max [EH] [mm]	1800
Flow rack system height min [H] [mm]	600
Flow rack system height max [H] [mm]	2000
Flow rack system depth min [T] [mm]	400
Flow rack system depth max [T] [mm]	6000
Transportation height min [HT] [mm]	80
Transportation height max [HT] [mm]	1200
Weight [kg]	0
