Bosch Rexroth

Bosch Rexroth 3842996320

CONVEYOR LEG SET SZ 2

MPN: 3842996320
Category: Leg sets TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842996320?

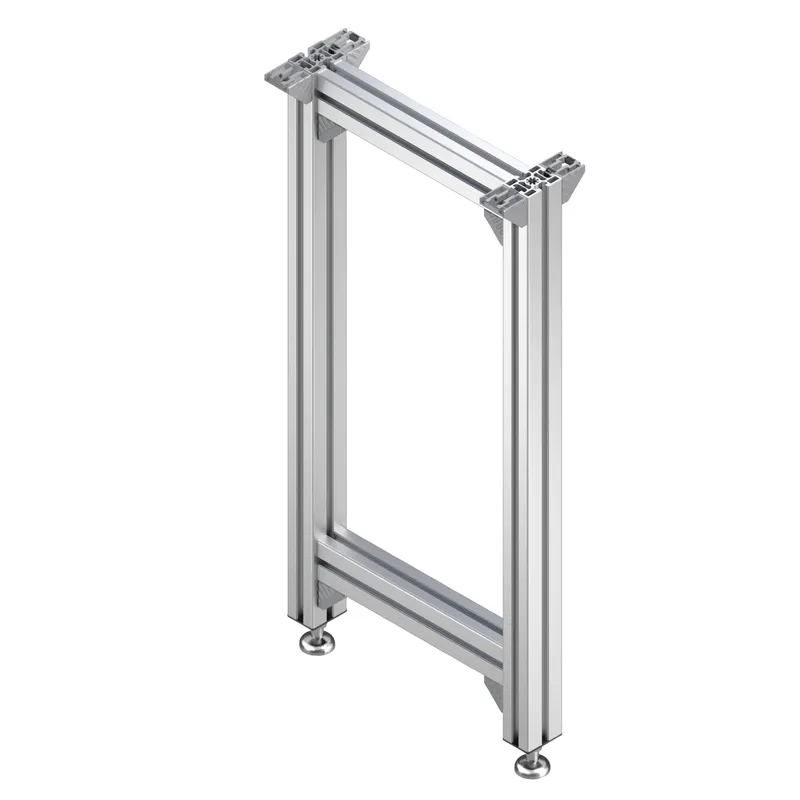

Leg set SZ 2

The leg sets support one belt section or one conveyor unit

Leg set for single-track conveyor sections on one conveying level.

Standard version

Installation location AO = 55: SP 2/B-50

Installation location AO = 60: Lift gate

Installation location AO = 80: ST 2/B; SP 2/BH; BS 2; BS 2/M

Installation location AO = 100: ST 2/B-100; ST 2/C-100; ST 2/R-100; ST 2/C-H; ST 2/R-H; ST 2/R-V; BS 2/C; BS 2/C-H; BS 2/R; BS 2/R-H; BS 2/R-V; CS/C

Specifications

ESD	Yes
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Kit [MT]	0 = unmontiert; 1 = montiert
Transportation height [H]	Lift Gate: 355 ... 2000; ST 2/B-100: 395 … 2000; ST 2/B-50: 350 … 2000; ST 2/B: 375 … 2000

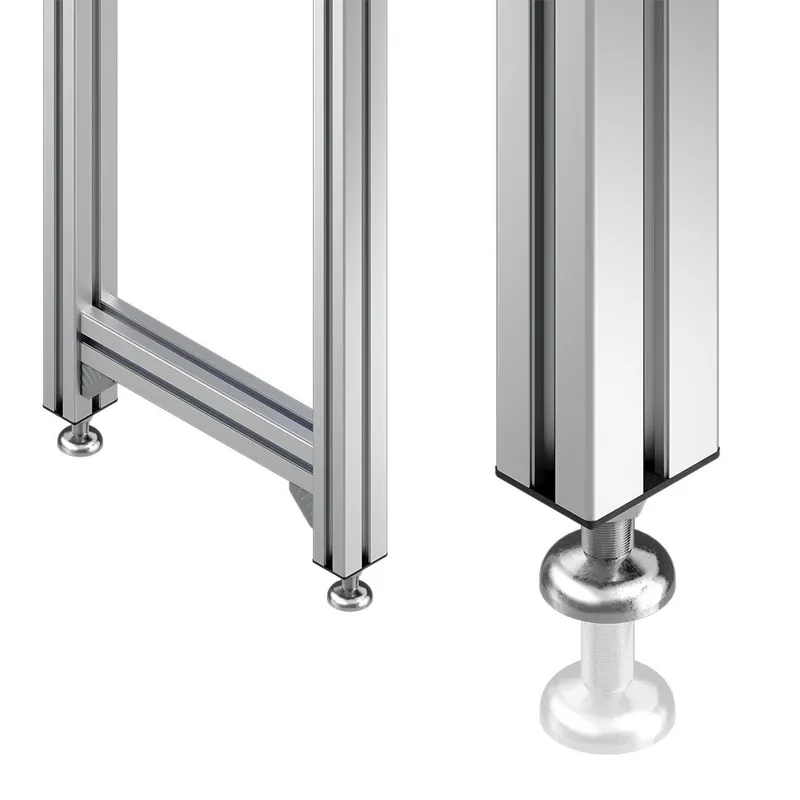

Scope of delivery	Incl. all fastening material to mount on conveyor section, drive module or return unit; Including height-adjustable bases
Delivery information	Fully assembled; Not assembled

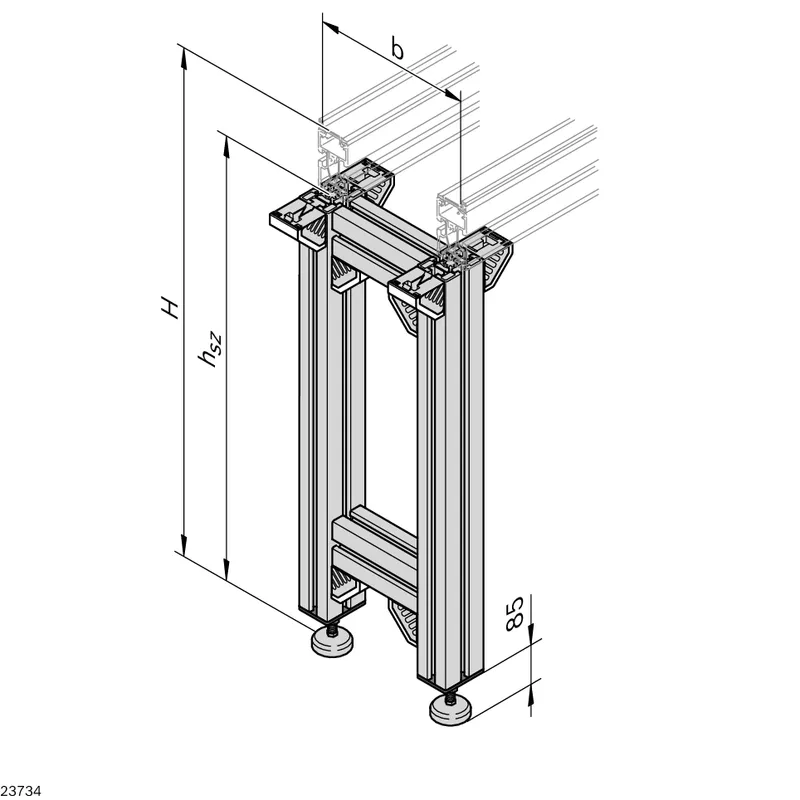

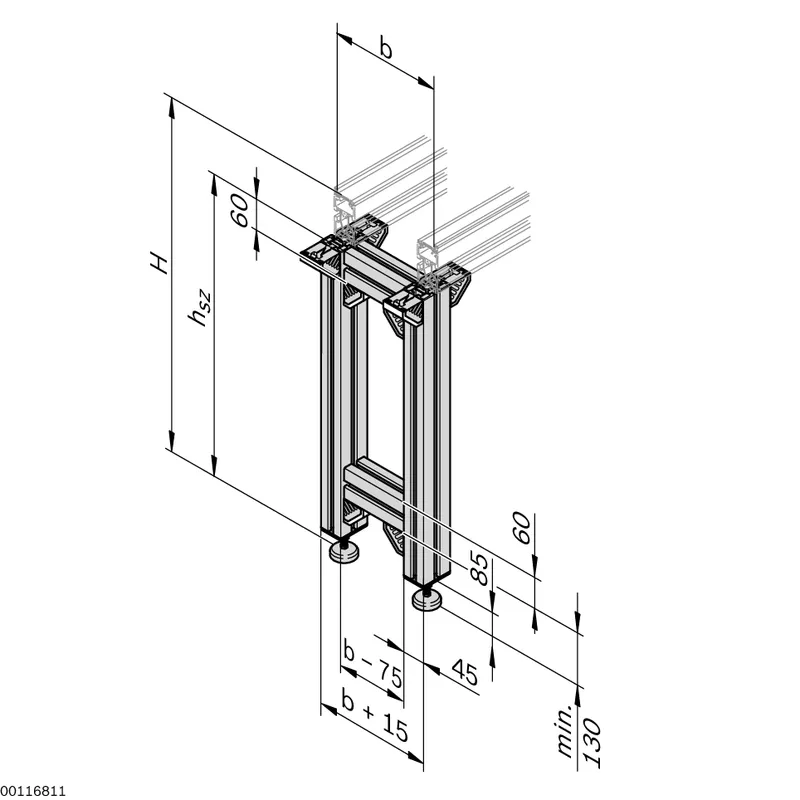

Notice	Transportation height H = leg set height hSZ + installation location AO (section profile height)
Material information	Bracket: Diecast aluminum; Leveling foot: Steel; galvanized; Profile: Aluminum
Required accessories	Floor dowel; Foundation bracket
Recommended accessories	Cover Caps for Bracket
Weight [kg]	0
