Bosch Rexroth 3842996323

CONVEYOR LEG SET SZ 2/U-H

MPN: 3842996323
Category: Leg sets TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842996323?

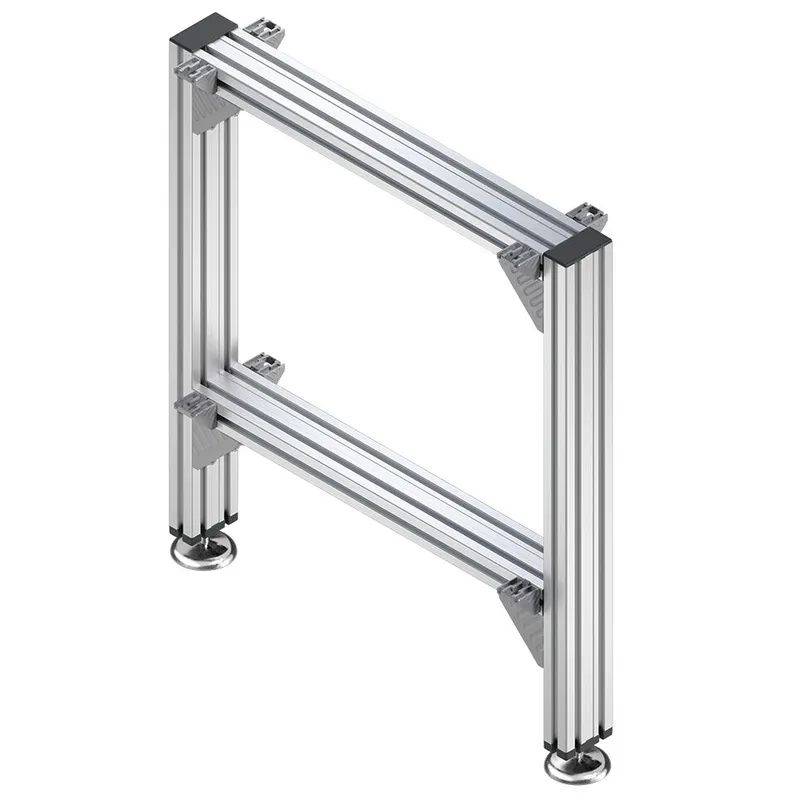

SZ 2/U-H Leg Set

Leg set for heavy-duty single-track conveyor sections on two conveying levels.

Specifications

ESD	Yes

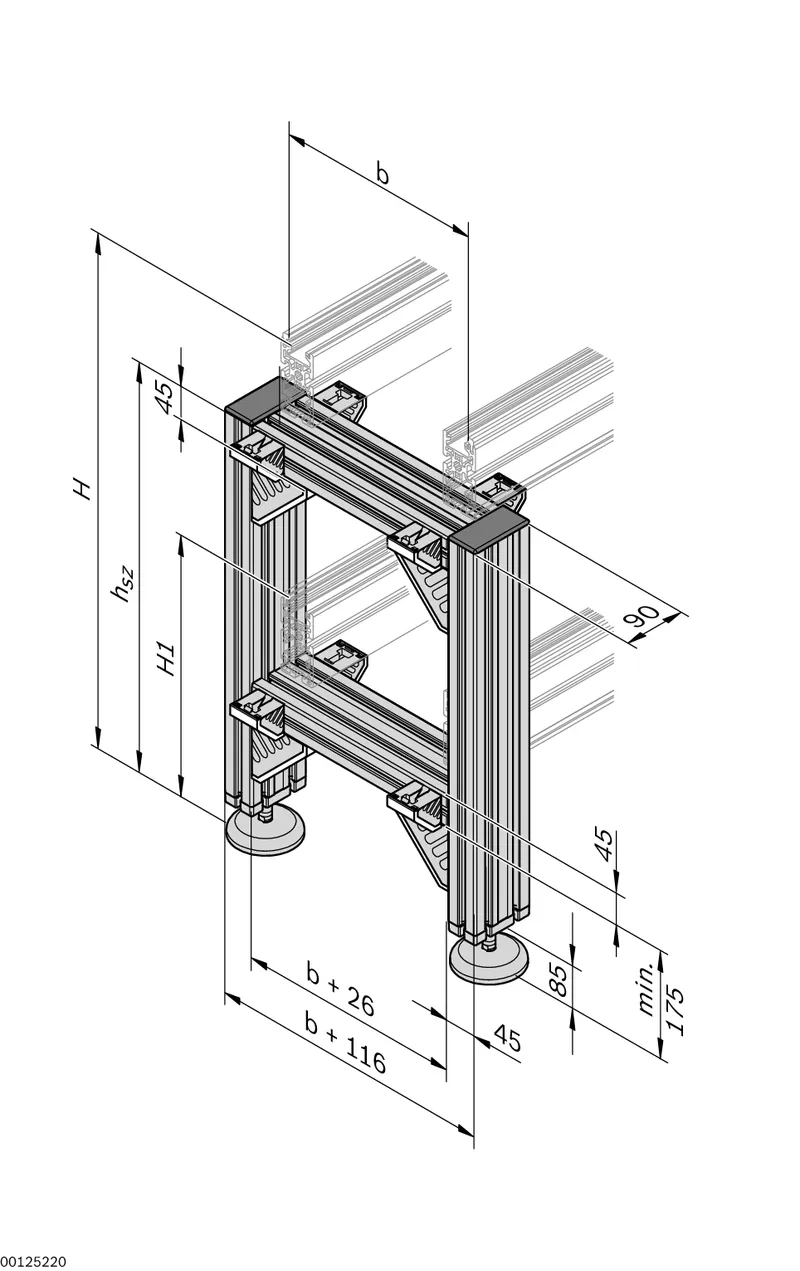

Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	400
Kit [MT]	0 = unmontiert; 1 = montiert
Transportation height [H]	ST 2/B-100: 625 … 2000; ST 2/B-50: 535 … 2000; ST 2/B: 585 … 2000
Transportation height [H1]	ST 2/B-100: 320 ... 1695; ST 2/B-50: 275 ... 1740; ST 2/B: 300 ... 1715
Scope of delivery	Incl. all fastening material to mount on conveyor section, drive module or return unit; Including height-adjustable bases
Delivery information	Fully assembled; Not assembled
Notice	h<sub>SZ1</sub> = leg set height lower transport level; h<sub>SZ</sub> = leg set height upper transport level
Material information	Bracket: Diecast aluminum; Leveling foot: Steel; galvanized; Profile: Aluminum
Required accessories	Floor dowel; Foundation bracket
Recommended accessories	Cover Caps for Bracket
Weight [kg]	0
