Home / Bosch Rexroth / Round tube / Bosch Rexroth 3842996192

Bosch Rexroth 3842996192

SECTION TUBE D28L;N10

MPN: 3842996192
Category: Round tube

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

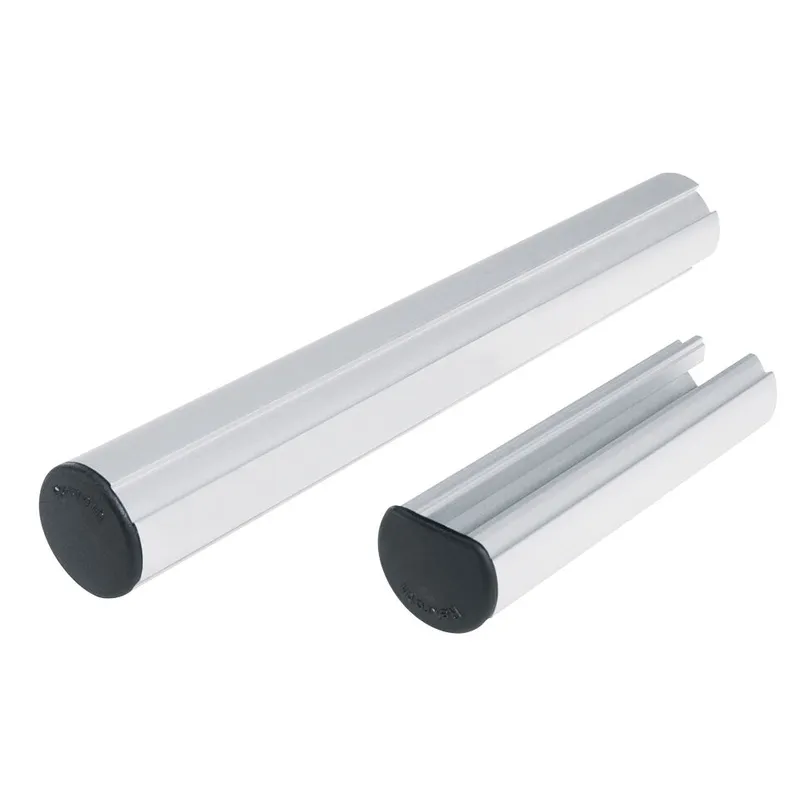

What is the Bosch Rexroth 3842996192?

D28L round tube, N10 L50-5600

D28L round tube with 4 interfaces for attaching EcoShape connectors

D28L round tube, N10 with a 10 mm slot for mounting accessories from the modular aluminum framing system

3 interfaces for attaching EcoShape connectors

Slide rail for creating a simple conveyor track or manual slide section by clipping the slide rail onto the D28L or D28L round tube, N10

Cover cap for D28L and D28L round tube, N10

Impact protection device for D28 and D28L round tube

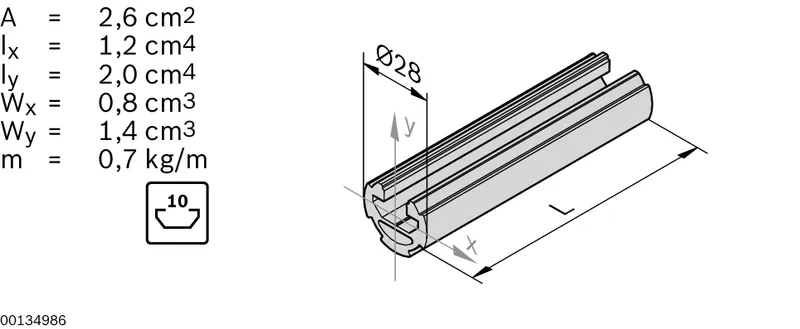

Specifications

Condition on delivery	Variable length
Profile slot	10
Delivery unit	1
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Mass [m] [kg]	0.7
Area moment of inertia in x-direction [lx] [cm⁴]	1.2
Area moment of inertia in y-direction [ly] [cm⁴]	2
Profile surface [A] [cm²]	2.6
Moment of resistance in the x-direction [Wx] [cm³]	0.8
Moment of resistance in the y-direction [Wy] [cm³]	1.4
Material	Aluminum, anodized
Weight [kg]	0

3842996192: frequently asked questions

When can 3842996192 be shipped?

3842996192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842996192 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842996192 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842996192, subject to availability and destination.
