Home / Bosch Rexroth / Strut profile / Bosch Rexroth 3842993673

Bosch Rexroth

Bosch Rexroth 3842993673

STRUT PROFILE 80X160L Q&E

MPN: 3842993673
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993673?

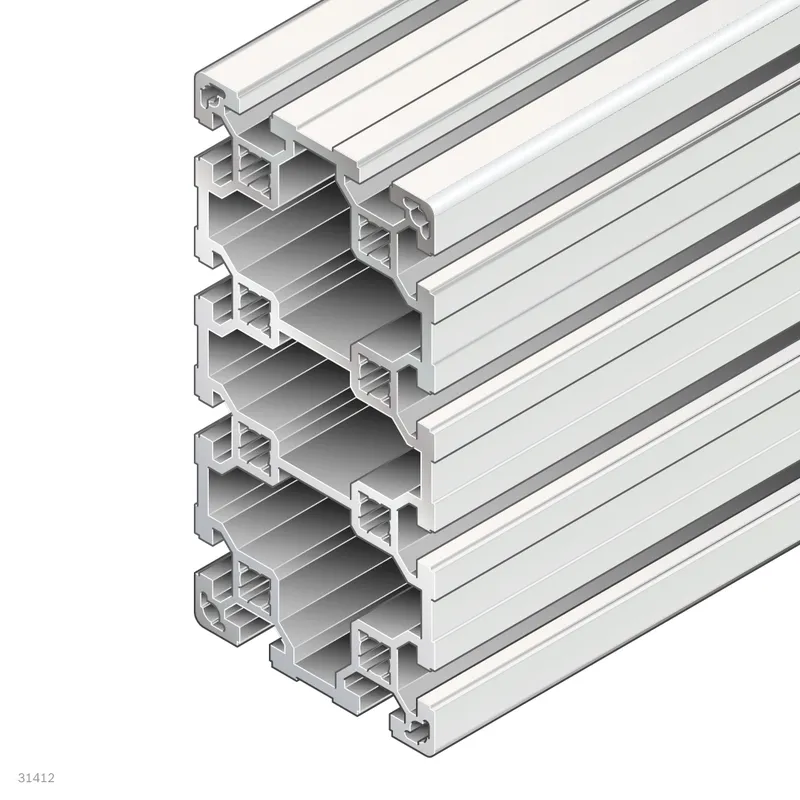

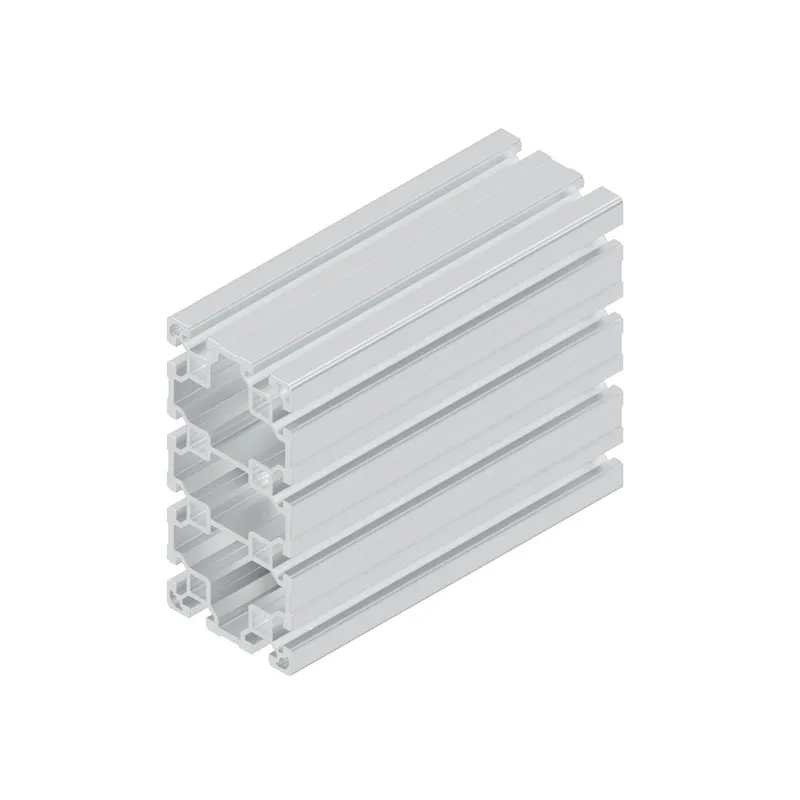

Strut profile 80x160L Q&E

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

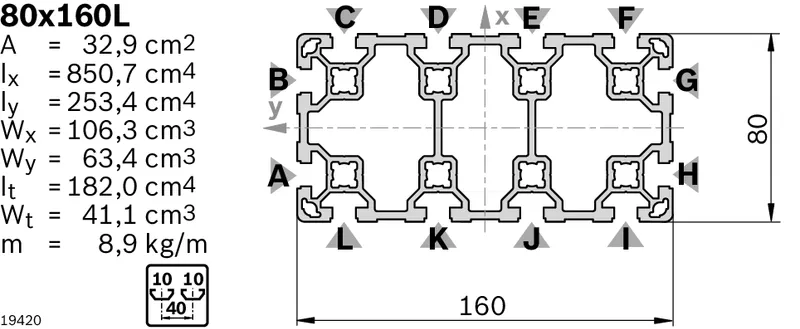

Cross-section	80x160L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	80x160
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	80
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M12 / D9,8(C,D,E,F,I,J,K,L)<sup>1)</sup> / D17(C,D,E,F,I,J,K,L)<sup>1)</sup> / DB17 / F1(A,G)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	8.9
Area moment of inertia in x-direction [lx] [cm⁴]	850.7
Area moment of inertia in y-direction [ly] [cm⁴]	253.4
Profile surface [A] [cm²]	32.9
Moment of resistance in the x-direction [Wx] [cm³]	106.3
Moment of resistance in the y-direction [Wy] [cm³]	63.4
Torsional moment of inertia [It] [cm⁴]	182.0
Moment of torsion resistance [Wt] [cm³]	41.1
Notice	DGmax = 45°, Lmin1 / Lmin2 = 460/620mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 80x80, signal gray; Mounting hole plug 80x80, black
Weight [kg]	0
