Bosch Rexroth 3842993661
STRUT PROFILE 45X90 Q&E
- MPN
- 3842993661
- Category
- Strut profile
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

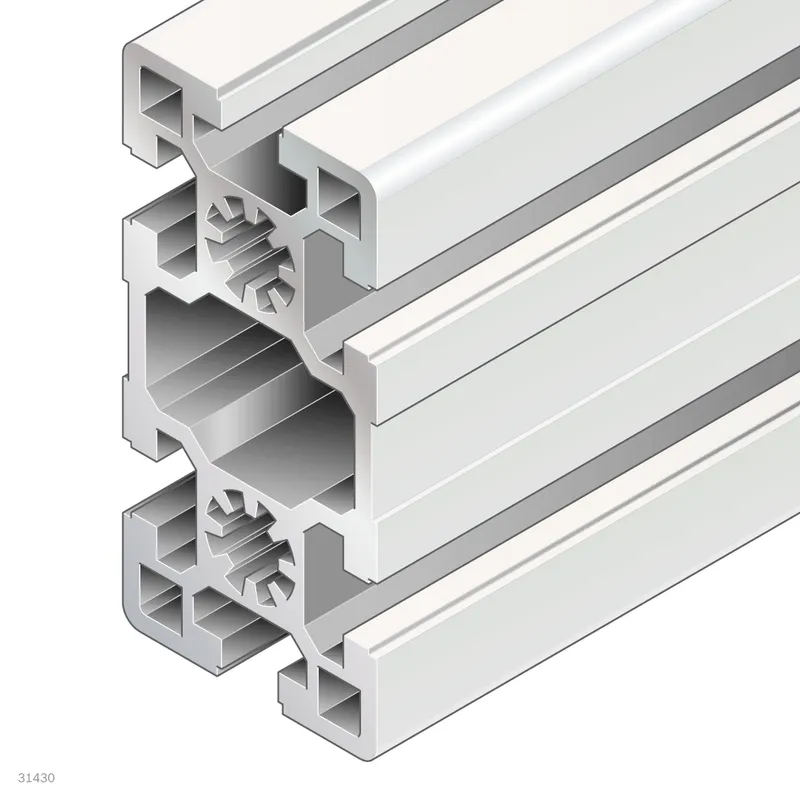

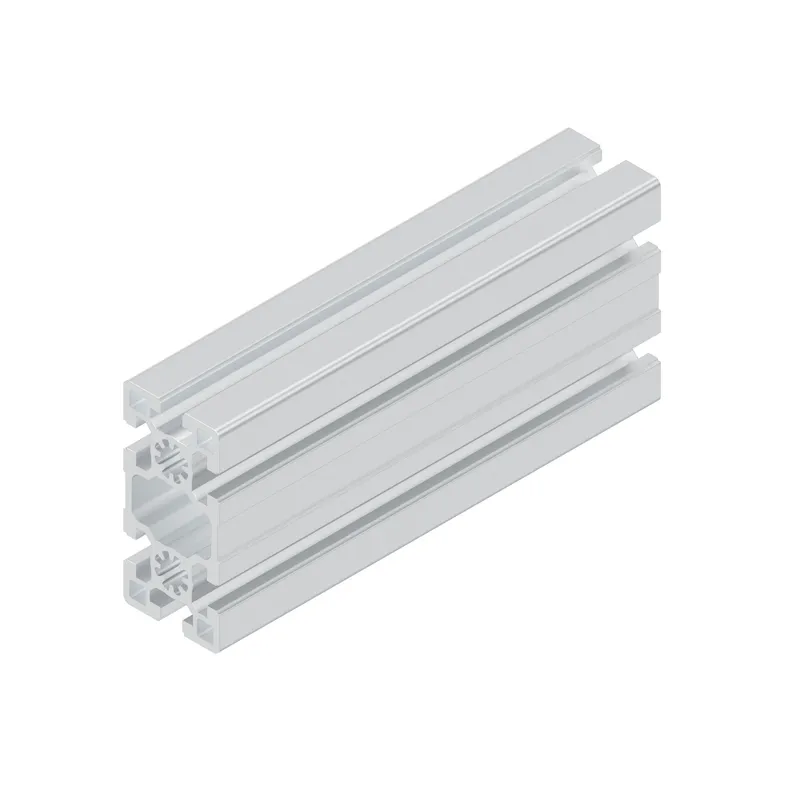

What is the Bosch Rexroth 3842993661?
Strut profile 45x90 Q&E
Minimum profile lengths for profile finishing: see table
Specifications
Specifications
| Condition on delivery | Profile finishing |
| Cross-section | 45x90 |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Dimensions | 45x90 |
| Open slots | 6.0 |
| Profile type | Standard |
| Color | Natural |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 50 |
| Packaging unit | 1 |
| Customized profile finishing | DI / DIS / MT / MTS / MI / MIS / DG |

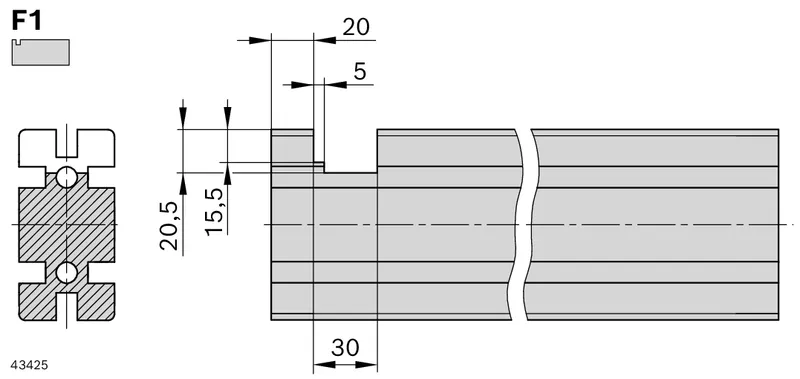

| Standard profile finishing | M12 / M16 / D9,8 / D17 / DB17 / F1(A,D) |
| Standard profile finishing minimum length | Observe minimum length |
| Mass [m] [kg] | 4.2 |

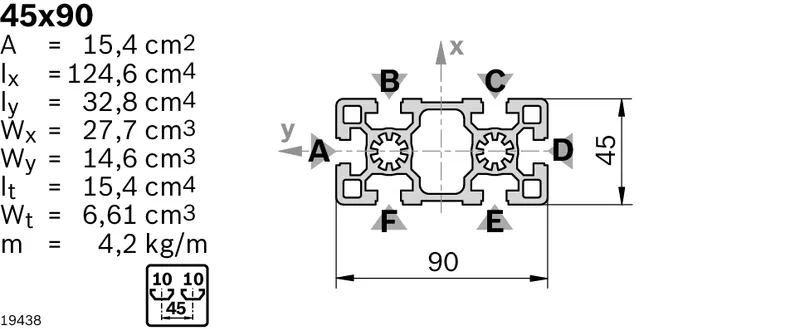

| Area moment of inertia in x-direction [lx] [cm⁴] | 124.6 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 32.8 |
| Profile surface [A] [cm²] | 15.4 |
| Moment of resistance in the x-direction [Wx] [cm³] | 27.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 14.6 |
| Torsional moment of inertia [It] [cm⁴] | 15.4 |
| Moment of torsion resistance [Wt] [cm³] | 6.61 |
| Notice | DGmax = 45°, Lmin1 / Lmin2 = 456/612mm; Standard profile finishing at specified slots |
| Material | Aluminum, anodized |
| Individual profile finishing [L max i] [mm] | 4900 |
| Standard profile finishing [L max] [mm] | 6000 |
| Recommended accessories | Cover cap 45x90, black; Cover cap 45x90, signal gray; Cover cap with hole 45x90, black; Cover cap with hole 45x90, signal gray |
| Weight [kg] | 0 |
No matching specifications
3842993661: frequently asked questions
When can 3842993661 be shipped?
3842993661 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842993661 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842993661 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993661, subject to availability and destination.
