Bosch Rexroth 3842993664
STRUT PROFILE 50X150L Q&E
- MPN
- 3842993664
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842993664?

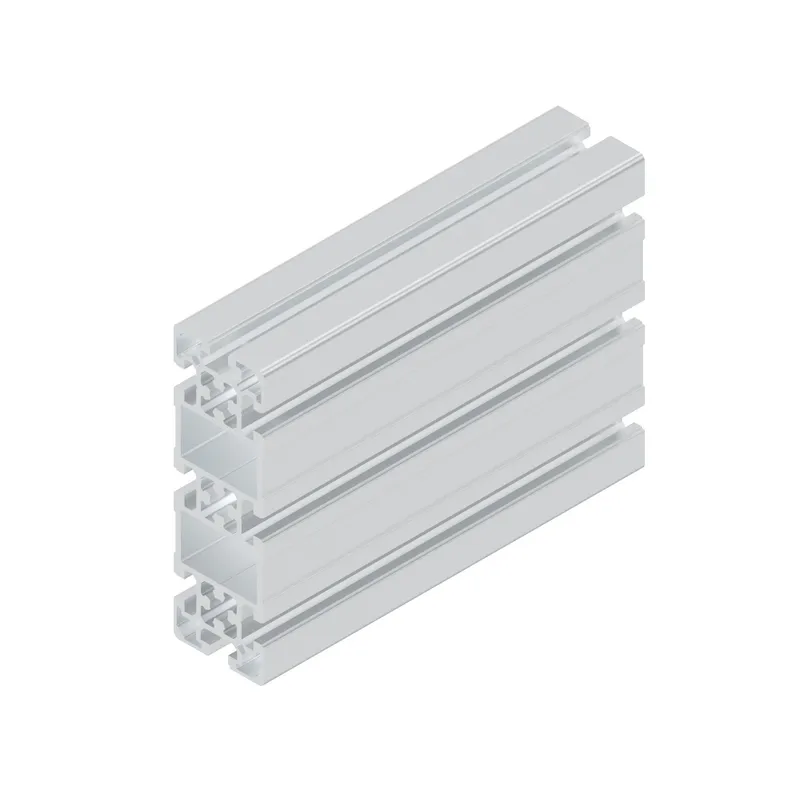

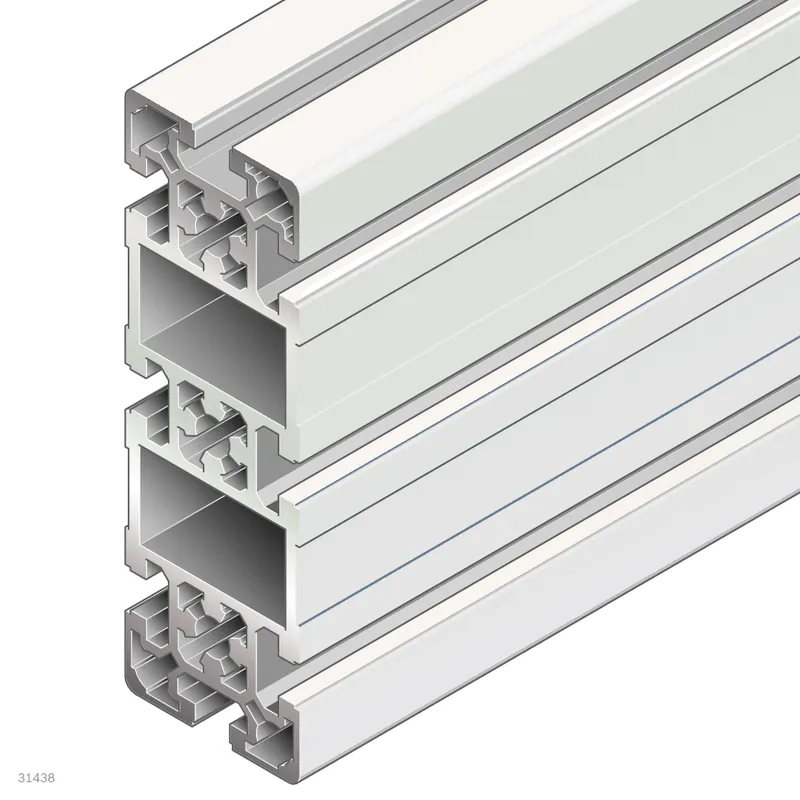

Strut profile 50x150L Q&E
Minimum profile lengths for profile finishing: see table
Specifications
Specifications
| Condition on delivery | Profile finishing |
| Cross-section | 50x150L |
| Modular dimension [mm] | 50 |
| Profile slot | 10 |
| Open slots | 8.0 |
| Profile type | Standard |
| Dimensions | 50x150 |
| Color | Natural |
| Packaging unit | 1 |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 80 |
| Notice | DGmax = 45°, Lmin1 / Lmin2 = 450/600mm; Standard profile finishing at specified slots |
| Material | Aluminum, anodized |
| Individual profile finishing [L max i] [mm] | 5400 |
| Standard profile finishing [L max] [mm] | 6000 |
| Customized profile finishing | DI / DIS / MT / MTS / MI / MIS / DG |
| Standard profile finishing | M12 / M16 / D9,8(B,C,D,F,G,H)<sup>1)</sup> / D17(B,C,D,F,G,H)<sup>1)</sup> / DB17 / F1(A,E) |
| Standard profile finishing minimum length | Observe minimum length |
| Mass [m] [kg] | 6.9 |

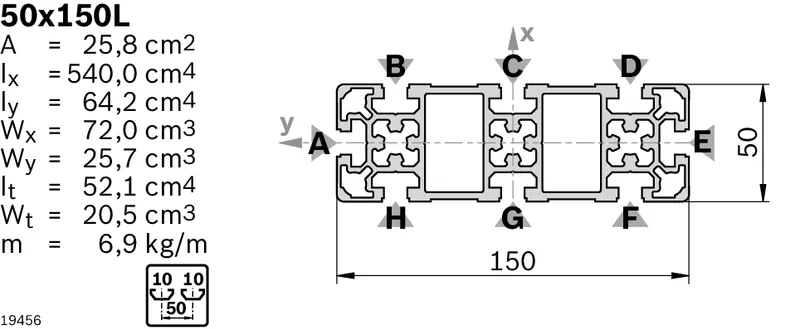

| Area moment of inertia in x-direction [lx] [cm⁴] | 540 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 64.2 |
| Profile surface [A] [cm²] | 25.8 |
| Moment of resistance in the x-direction [Wx] [cm³] | 72 |
| Moment of resistance in the y-direction [Wy] [cm³] | 25.7 |
| Torsional moment of inertia [It] [cm⁴] | 52.1 |
| Moment of torsion resistance [Wt] [cm³] | 20.5 |
| Recommended accessories | Cover cap 50x150, signal gray; Mounting hole plug 50x150, black |
| Weight [kg] | 0 |
