Bosch Rexroth 3842992376

STRUT PROFILE 45X60 D9,8/

MPN: 3842992376
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992376?

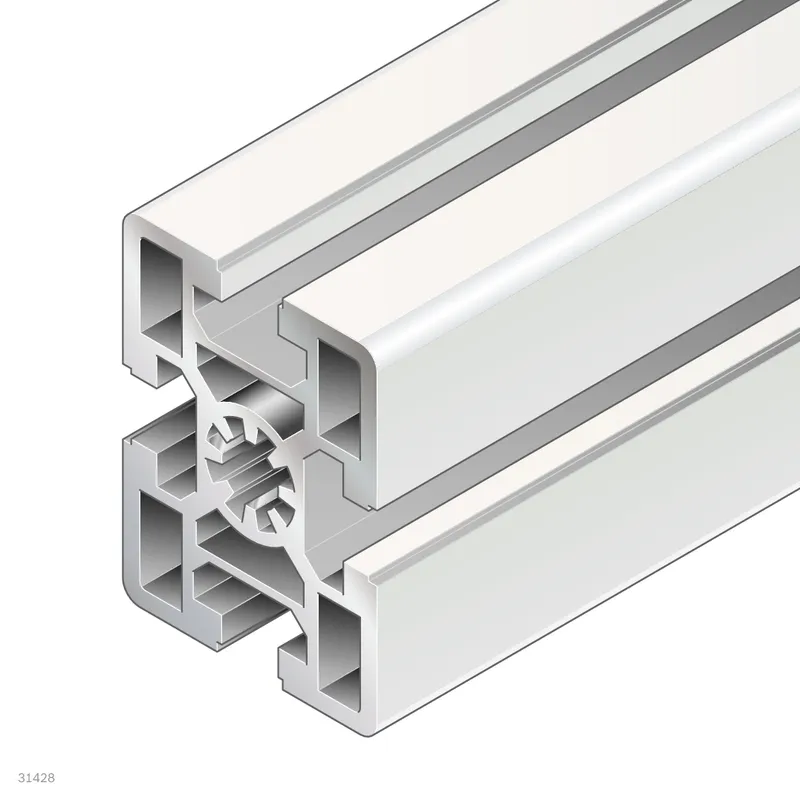

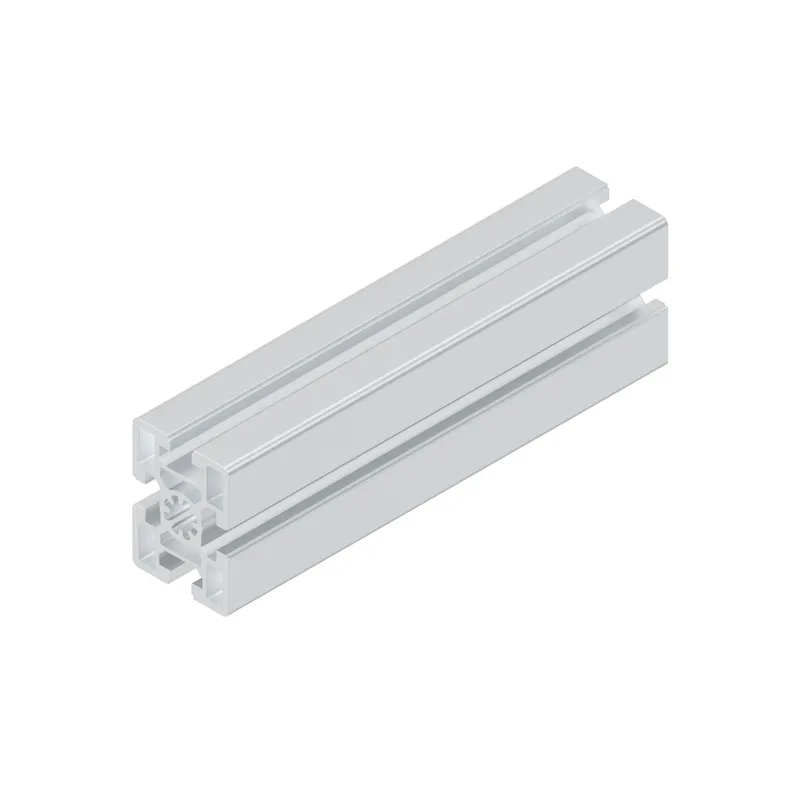

Strut profile 45x60 D9,8/-

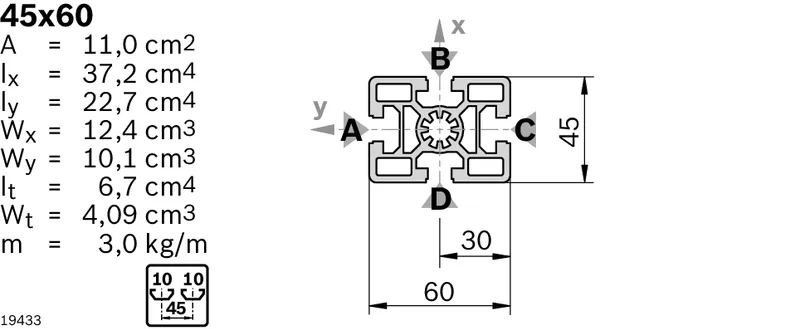

Specifications

Condition on delivery	Profile finishing
Cross-section	45x60
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x60
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	3
Area moment of inertia in x-direction [lx] [cm⁴]	37.2
Area moment of inertia in y-direction [ly] [cm⁴]	22.7
Profile surface [A] [cm²]	11
Moment of resistance in the x-direction [Wx] [cm³]	12.4
Moment of resistance in the y-direction [Wy] [cm³]	10.1
Torsional moment of inertia [It] [cm⁴]	6.7
Moment of torsion resistance [Wt] [cm³]	4.09
Profile adaption	D9.8, D17: in slots B/D; D9.8V, D17V: in slots A/C; F1: in slot A; LF: in slots A/C
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x60, black; Cover cap 45x60, signal gray; Cover cap with hole 45x60, black; Cover cap with hole 45x60, signal gray
Weight [kg]	0
