Bosch Rexroth 3842990725

STRUT PROFILE 30X30 D11/D11

MPN: 3842990725
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842990725?

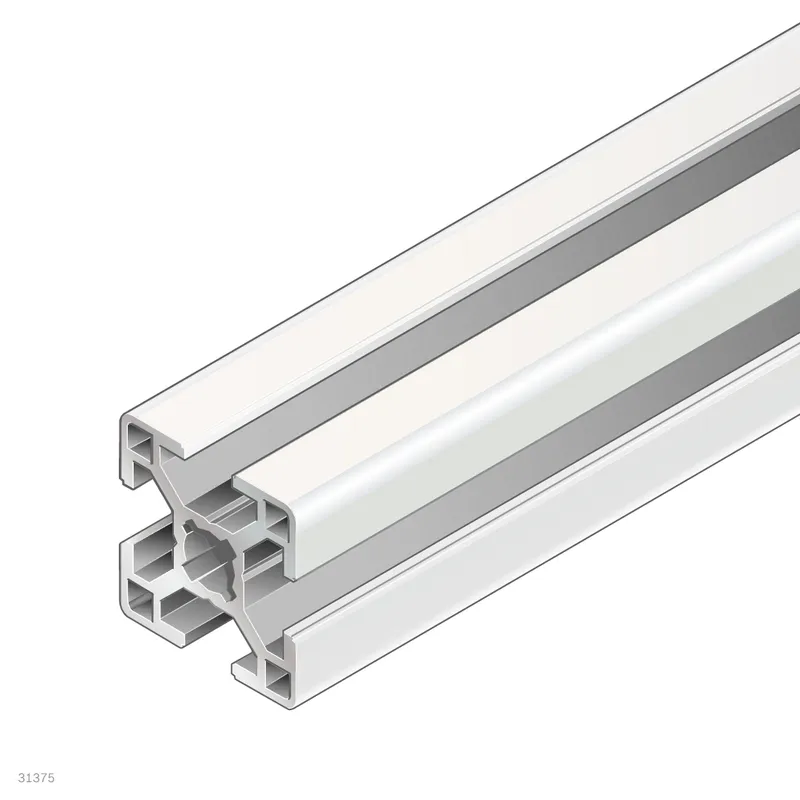

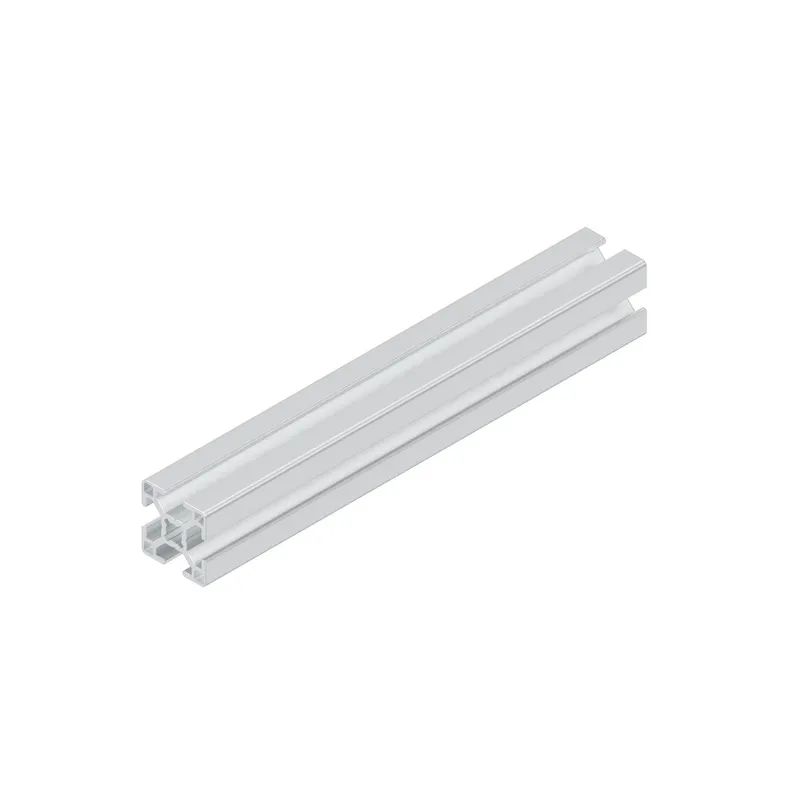

Strut profile 30x30 D11/D11

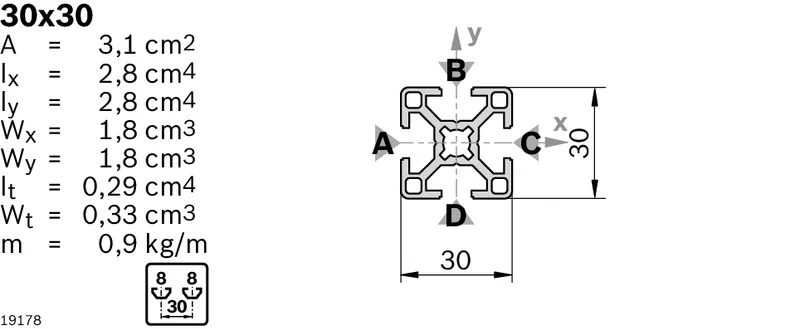

Specifications

Condition on delivery	Profile finishing
Cross-section	30x30
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x30
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Packaging unit	1
Mass [m] [kg]	0.9
Area moment of inertia in x-direction [lx] [cm⁴]	2.8
Area moment of inertia in y-direction [ly] [cm⁴]	2.8
Profile surface [A] [cm²]	3.1
Moment of resistance in the x-direction [Wx] [cm³]	1.8
Moment of resistance in the y-direction [Wy] [cm³]	1.8
Torsional moment of inertia [It] [cm⁴]	0.29
Moment of torsion resistance [Wt] [cm³]	0.33
Material	Aluminum, anodized
Recommended accessories	Cover cap 30x30, black; Cover cap 30x30, signal gray; Cover cap with hole 30x30, black; Cover cap with hole 30x30, signal gray
Weight [kg]	0
