Bosch Rexroth 3842572922

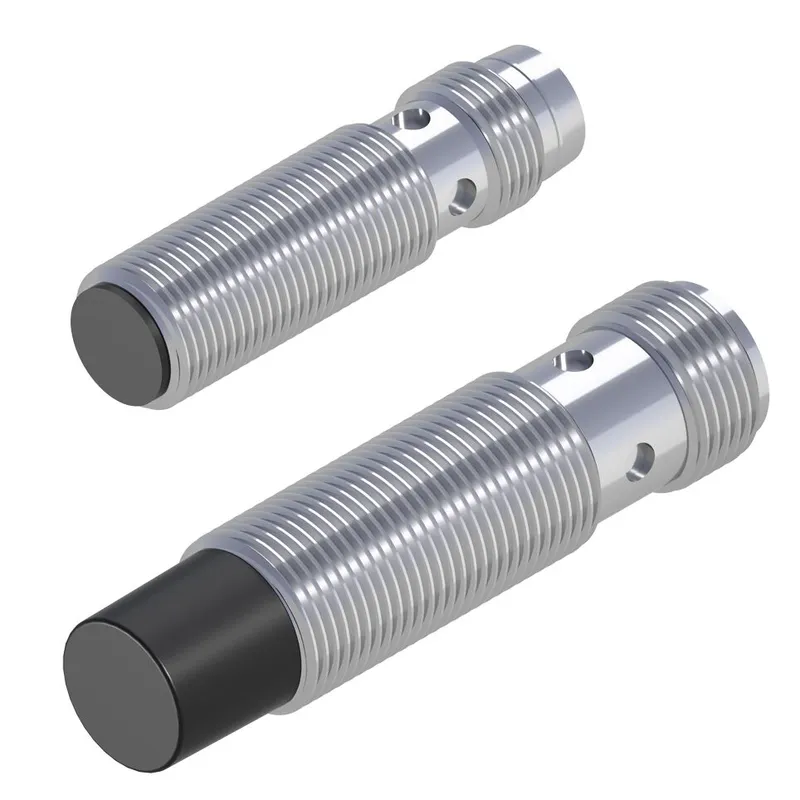

PROXIMITY SWITCH BES M18MG-PSC16F-S04G COMP
- MPN
- 3842572922
- Category
- Sensors TS 5
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842572922?
M18x1 sensor
Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.

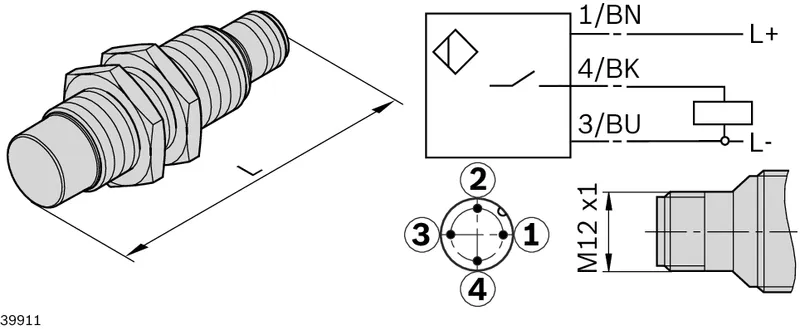

Specifications
Specifications
| Conformity | CE; cULus |
| Thread size | M18x66 |
| Protection class | IP68 |
| Ambient temperature [T] | -25 ... +70 °C |
| Push-in fitting | M18x1 |
| Nominal switching distance [Sn] [mm] | 12.8 |
| Switching frequency [Hz] | 430 |
| Operating current [mA] | 200 |
| Mechanical installation | Not flush |
| Function display | LED |
| Switching output | PNP |
| Switching function | Normally open (NO) |
| Operating voltage DC [V] | 10 ... 30 |
| Length [L] | 66.0 |
| Notice | IEC 60947-5-2 |
| Material information | Active surface: PBT; Housing: CuZn, nickel-free coating |
| Required accessories | Assembly kit for switch bracket; Clamping holder for sensor; Switch bracket SH 2/U-H |
| Weight [kg] | 0.06 |
