Home / Bosch Rexroth / Damper TS 2plus / Bosch Rexroth 3842572746

Bosch Rexroth

Bosch Rexroth 3842572746

DAMPER DA 2/150-E

MPN: 3842572746
Category: Damper TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572746?

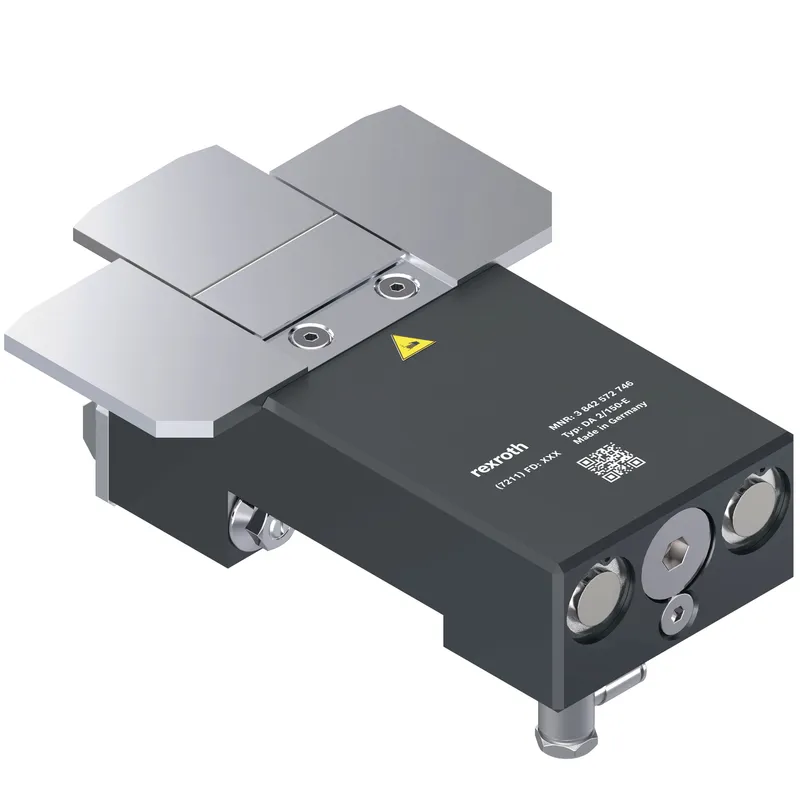

Damper DA 2/150-E

Hydraulic damper with closed damping system

Before outfeed via lift transverse unit HQ 2/U-H, HQ 2/C-H or HQ 2/G-H

For permitted total weight of workpiece pallets up to 130 kg with belts, toothed belts or flat top chains

For permitted total weight of workpiece pallets up to 150 kg with accumulation roller chains

Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

Installation location: Lift transverse unit HQ 2/U-H, HQ 2/C-H or HQ 2/G-H

The damper cushions the impact of the arriving workpiece pallet

Suitable for outfeed via HQ 2/U-H, HQ 2/C-H or HQ 2/G-H

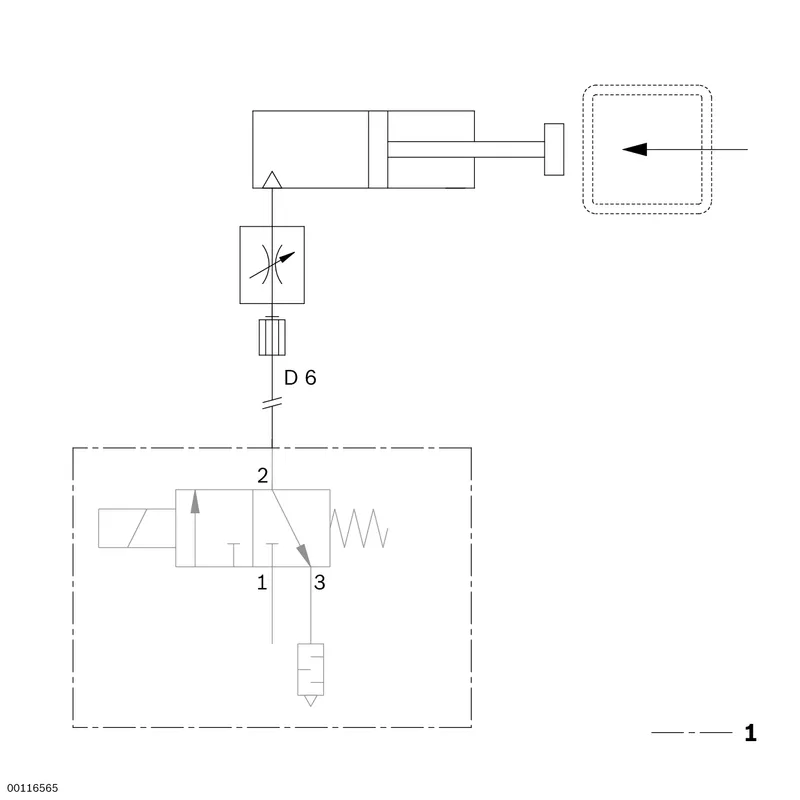

The pneumatic return occurs as the stop gate opens, which permits the workpiece pallet to move toward the damper

The damper is traversable

Specifications

ESD	Yes
Operating temperature [T] max	0 … +60
Workpiece pallet total weight [mG] [kg]	150
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Damper DA 2/150-E for outfeeding the workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H via an HQ 2/U-H, HQ 2/C-H or HQ 2/G-H; Incl. fastening material
Delivery information	Not assembled
Notice	High-temperature damper on request
Material information	Housing: aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	Gurt, Zahnriemen, Flachplattenkette: 15 kg; Staurollenkette: 60 kg
Weight [kg]	2.55
