Home / Bosch Rexroth / Damper TS 2plus / Bosch Rexroth 3842572742

Bosch Rexroth

Bosch Rexroth 3842572742

DAMPER DA 2/100-E

MPN: 3842572742
Category: Damper TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

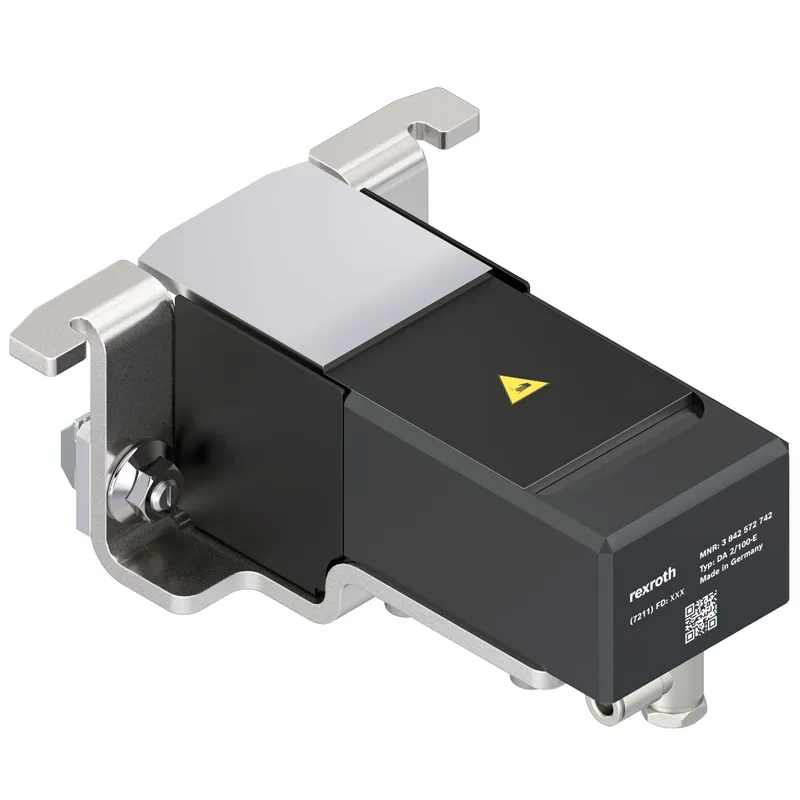

What is the Bosch Rexroth 3842572742?

Damper DA 2/100-E

For permitted total weight of workpiece pallets up to 100 kg

Pneumatic damper

Infinitely adjustable

Optimal damping at a ratio of 2:1 between heavy and light workpiece pallets

Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

Installation location: Lift transverse unit HQ 2/U-H, HQ 2/C-H or HQ 2/G-H

The damper cushions the impact of the arriving workpiece pallet

Suitable for outfeed via HQ 2/U-H, HQ 2/C-H or HQ 2/G-H

The pneumatic return occurs as the stop gate opens, which permits the workpiece pallet to move toward the damper

The damper is traversable

Specifications

ESD	Yes
Operating temperature [T] max	0 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	100; 100; 55; 95
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Damper DA 2/100-E for outfeeding the workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H via an HQ 2/U-H, HQ 2/C-H or HQ 2/G-H; Incl. fastening material
Delivery information	Not assembled
Notice	High-temperature damper on request
Material information	Housing: aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	5 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	95 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	55 kg
Weight [kg]	2.2
