Bosch Rexroth 3842572125

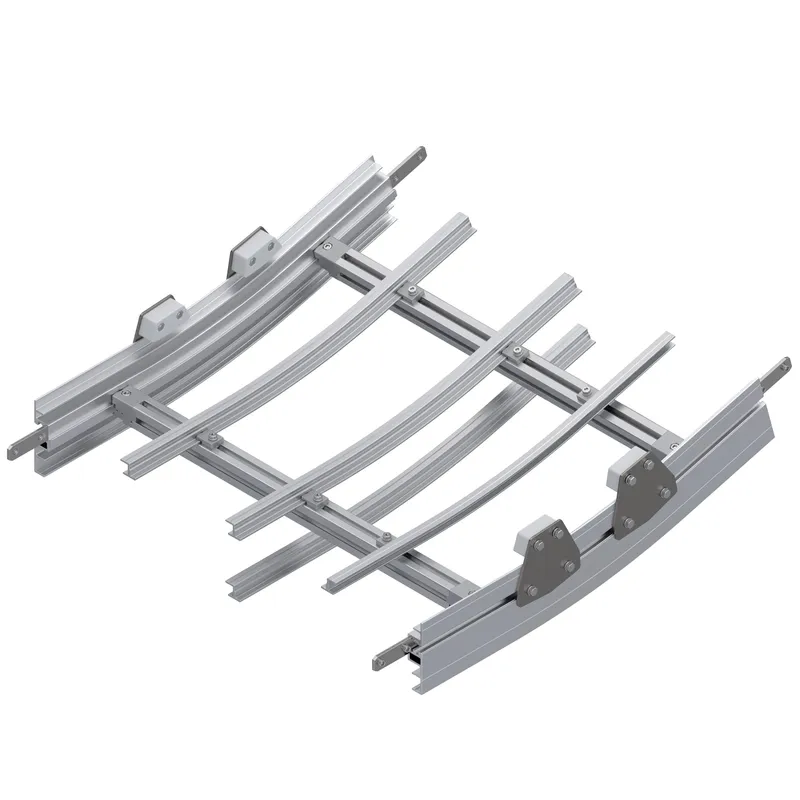

CURVE 622MB VER AL15°R1000U

MPN: 3842572125
Category: Curve AL VarioFlow belt

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572125?

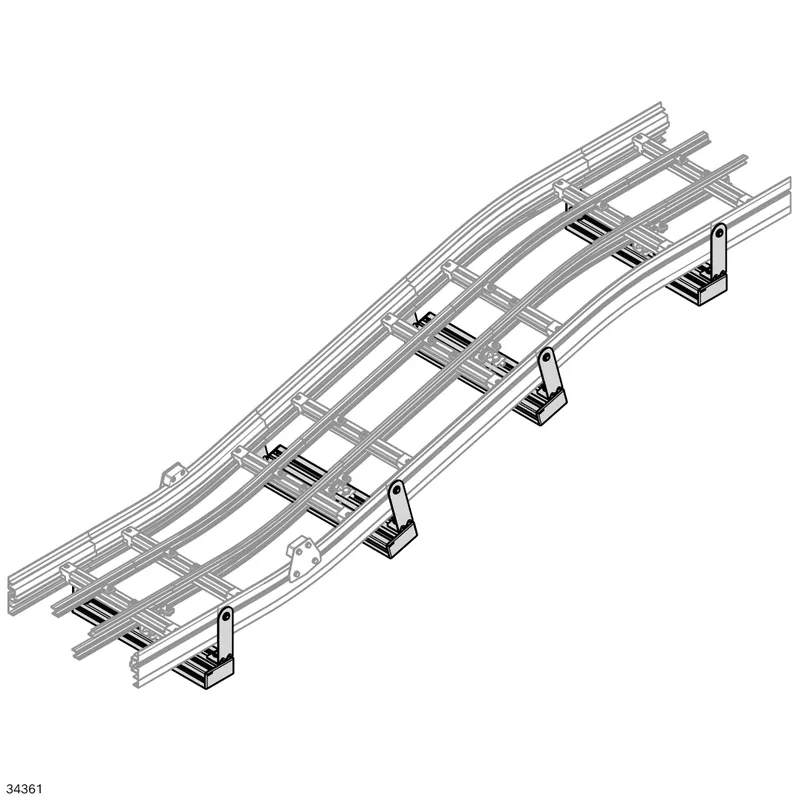

Before and after a vertical curve, a straight section with belt width (additional section profile with a minimum length of 458 mm) must be provided. Two additional support struts are required for the assembly of the attached support profile.

The usable track width is reduced by the use of lateral holding-down clamps for guiding the modular belt close to the profile in the vertical curve. Despite the use of the holding-down clamps, the modular belt may bulge in the vertical curves. The maximum bulging can be up to 35 mm in the center of the belt, depending on curve angle, chain tensile force and speed.

Use in abrasive environments is not permissible

Maximum permissible belt tensile force: 450 N

Specifications

Delivery unit	1

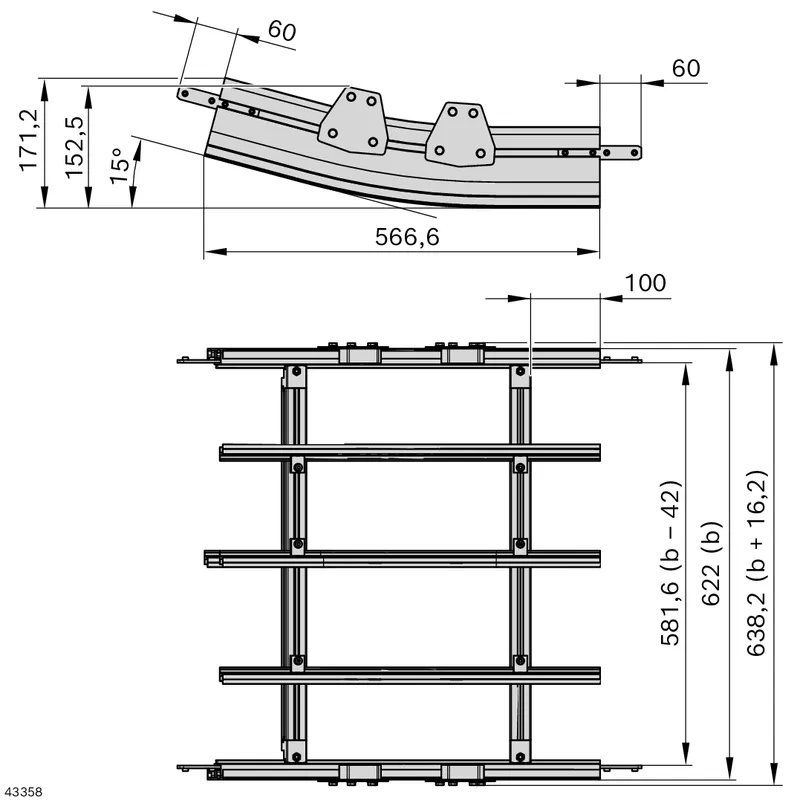

Size [b] [mm]	622
Scope of delivery	Incl. fastening material
Notice	A start ramp is recommended to limit the excessive spring deflection of the modular belt during start-up.
Modification	Additional track widths are available on request from our modification department. (COS@boschrexroth.de)
Material information	Clamping heads: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized

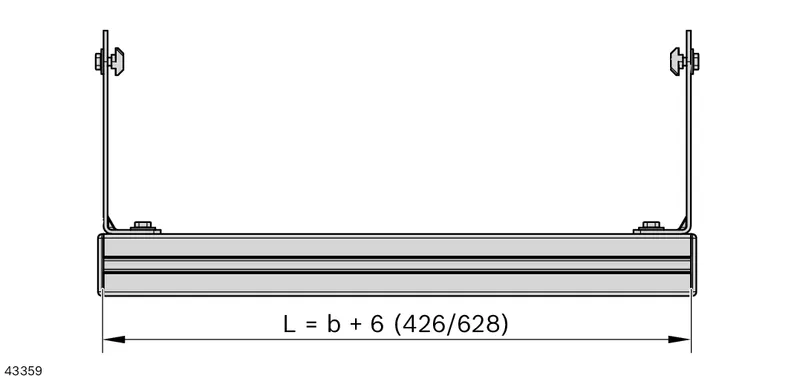

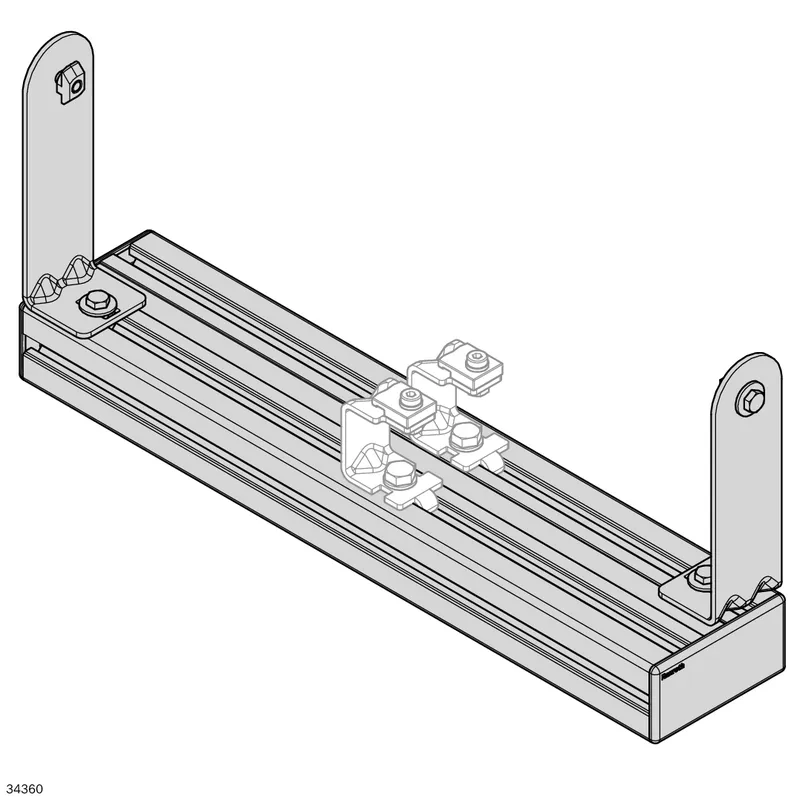

Required accessories	10mm supporting bracket STS (2x); Clamping piece VF belt (2x); Cover cap 45x90 (2x); Holder support profile modular belt (2x); Per support strut: Strut profile 45x90L (1x)
Weight [kg]	4.67
