Bosch Rexroth

Bosch Rexroth 3842572169

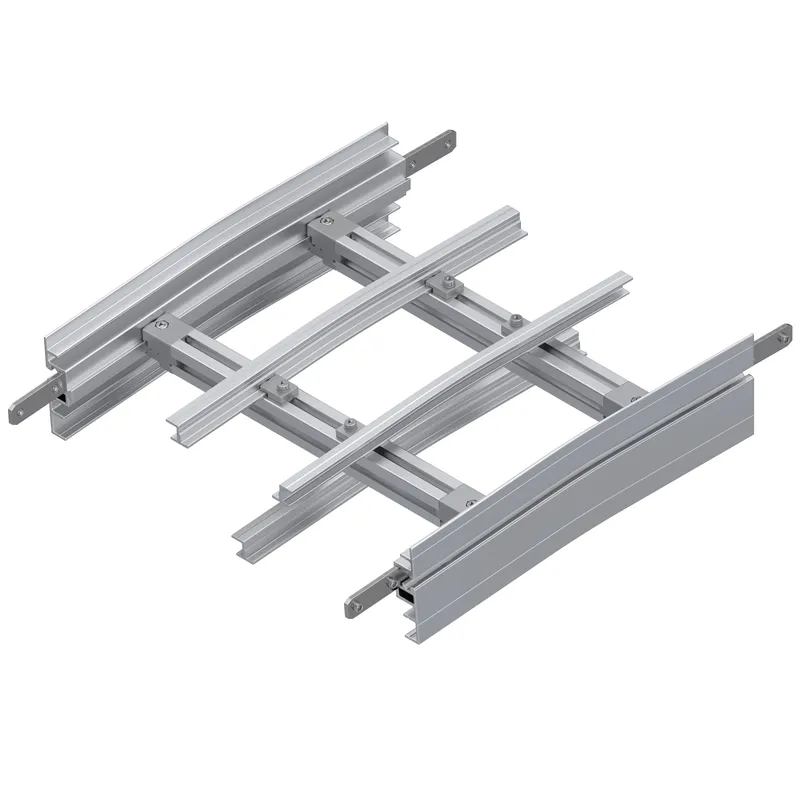

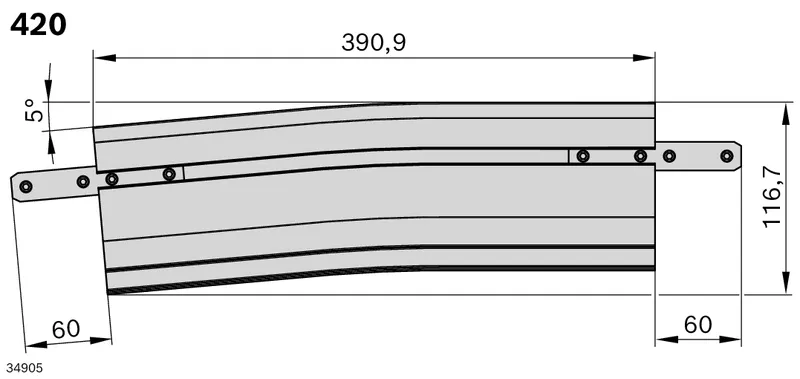

CURVE 420MB VER AL 5°R1000D

MPN: 3842572169
Category: Curve AL VarioFlow belt

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572169?

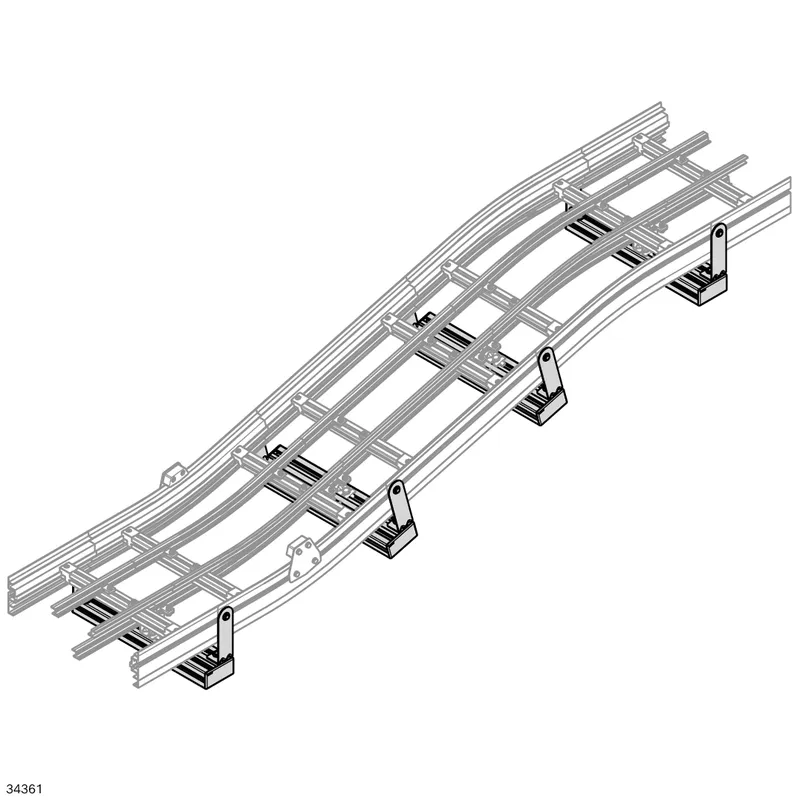

Before and after a vertical curve, a straight section with belt width (additional section profile with a minimum length of 256 mm) must be provided. Two additional support struts are required for the assembly of the attached support profile.

Use in abrasive environments is not permissible

Maximum permissible belt tensile force: 450 N

Specifications

Delivery unit	1

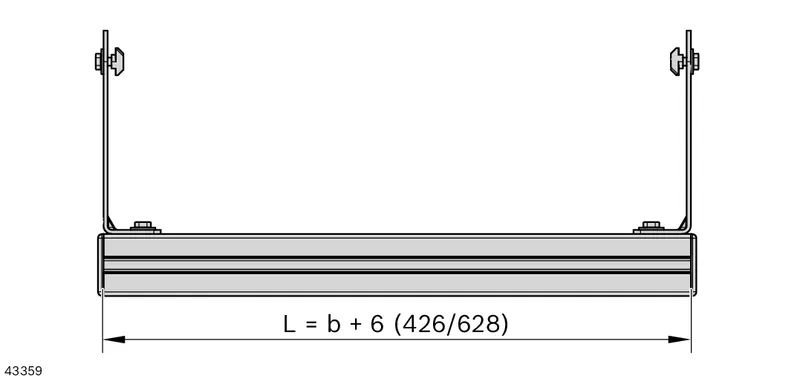

Size [b] [mm]	420
Scope of delivery	Incl. fastening material
Notice	A start ramp is recommended to limit the excessive spring deflection of the modular belt during start-up.
Modification	Additional track widths are available on request from our modification department. (COS@boschrexroth.de)
Material information	Clamping heads: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized

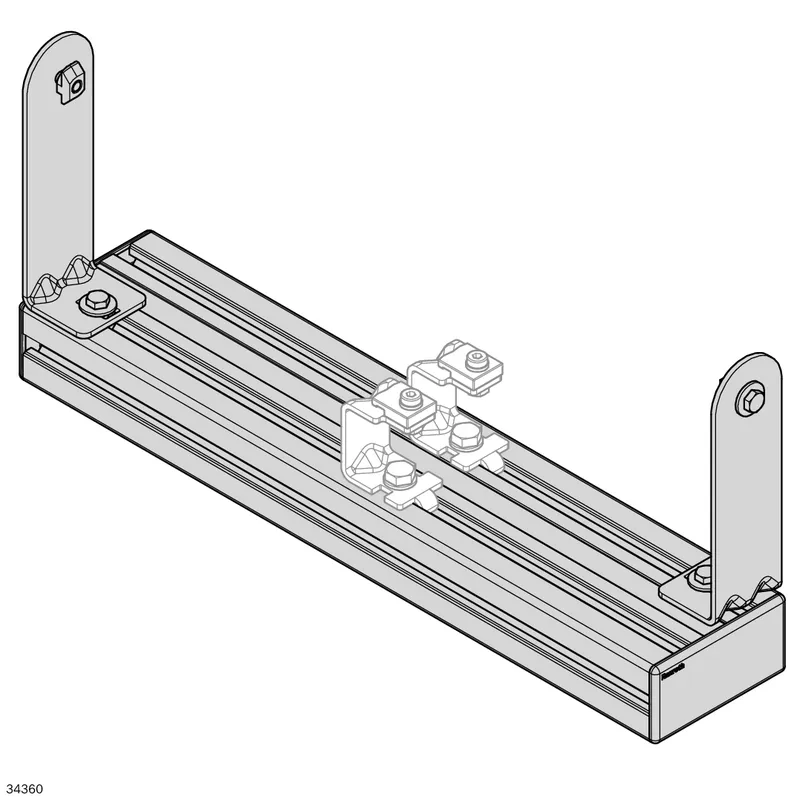

Required accessories	10mm supporting bracket STS (2x); Clamping piece VF belt (2x); Cover cap 45x90 (2x); Holder support profile modular belt (2x); Per support strut: Strut profile 45x90L (1x)
Weight [kg]	2.89
