Bosch Rexroth 3842572102
SUPPORTING STRUCTURE MB AL 12X3000
- MPN
- 3842572102
- Category
- Maintenance section elements
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842572102?

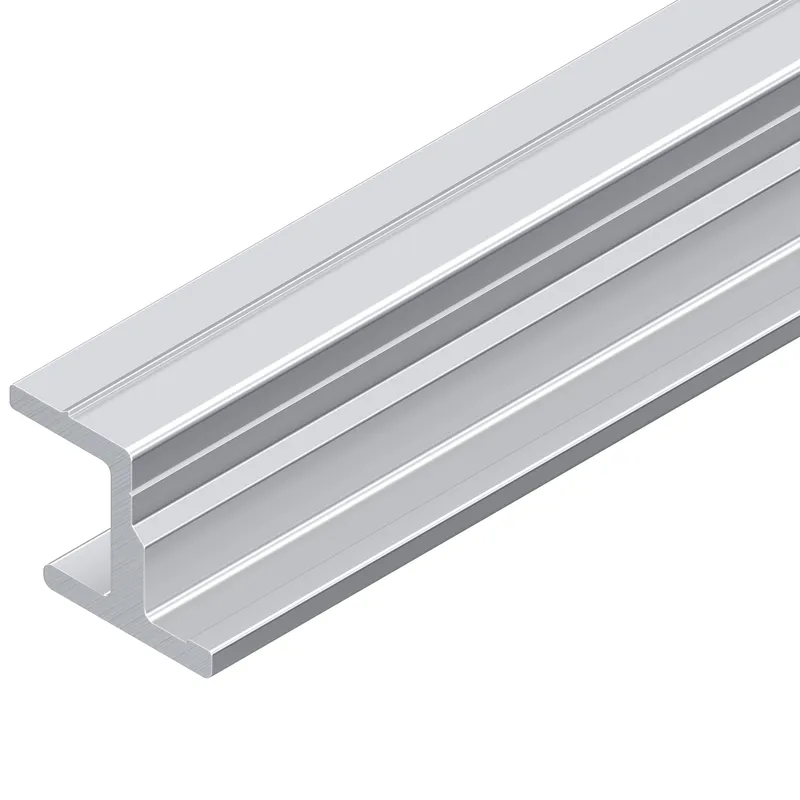

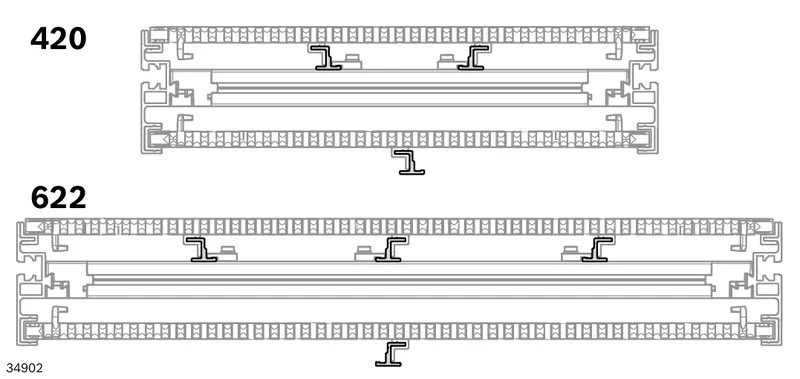

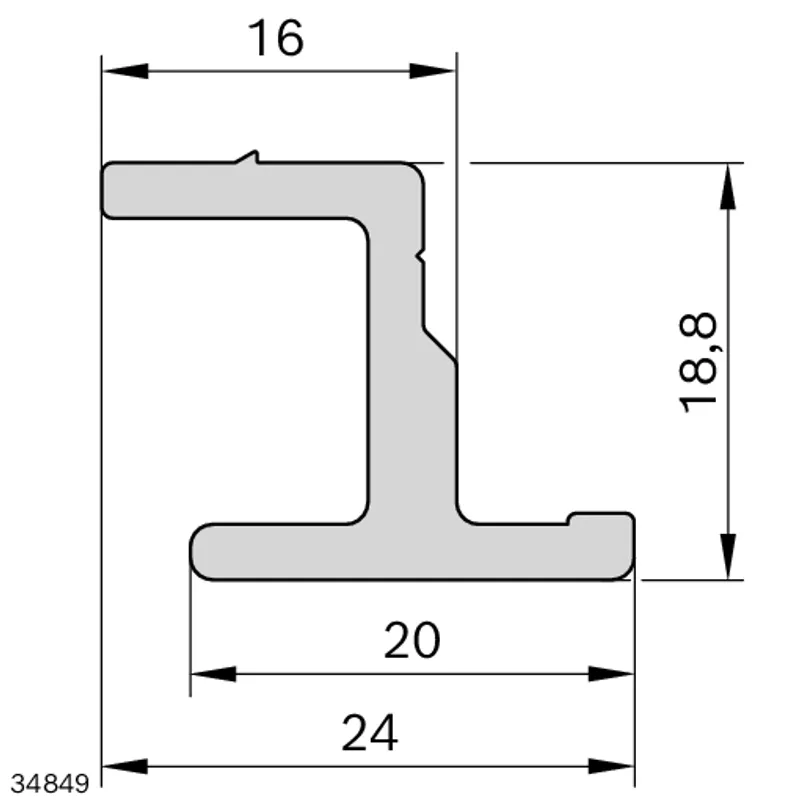

The main task of the support profile onto which the L-shaped sliding rail is clipped is to provide a running surface with the lowest possible friction and to reduce the wear of the modular belt. The system width determines the necessary number of support profiles.
In the upper run, the support profile projects by 490 mm into the drive and by 197 mm into the return unit and must be designed accordingly longer. In the lower run, the support profile should be about 10 – 20 mm shorter than the section profile.
If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid
The support profile is fastened to the cross connectors with the clamping piece
Specifications
Specifications
| Color | Natural |
| Delivery unit | 12 |
| Length [L] | 3000.0 |
| Material | Aluminum, anodized |
| Required accessories | Clamping piece, L-shaped sliding rail |
| Weight [kg] | 17.5 |
