Bosch Rexroth 3842572099

MODULAR BELT 406MB FRICTION L2997

MPN: 3842572099
Category: Modular belt

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

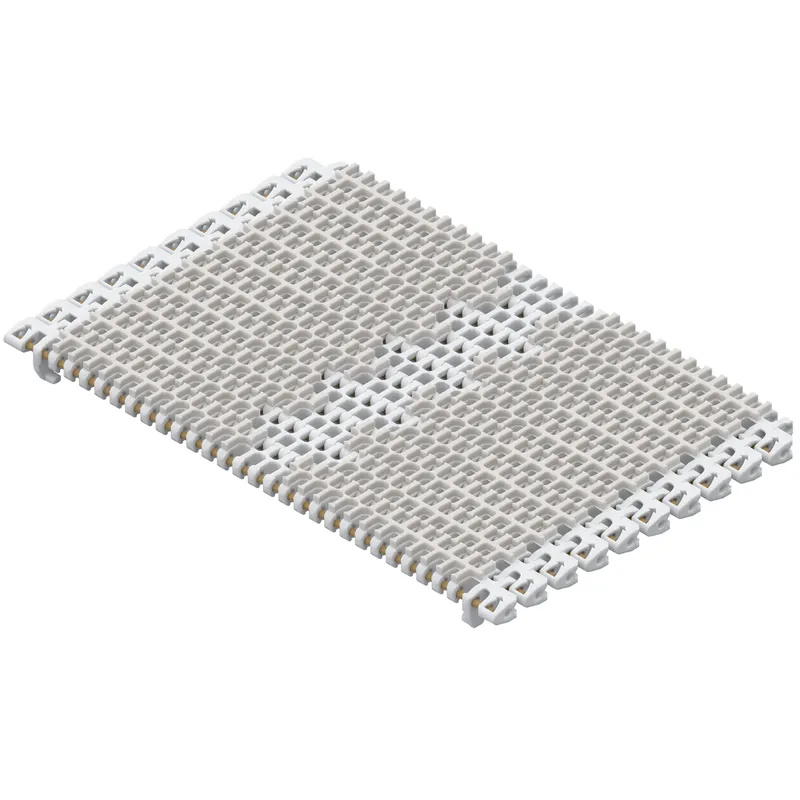

What is the Bosch Rexroth 3842572099?

All module members are provided with a static friction lining, the grip of which is maintained by regular cleaning. The lining-free edge and central zone of the surface serves to guide the modular belt. The lining is not suitable for transporting sharp-edged objects. The modular belts are assembled in a brick bond, in which the modules interlock to give the belt special lateral strength.

The use of the complete modular belt surface is possible, since on the underside, the belt is equipped with integrated holding-down clamps. As a result, even overwide products can be transported on a horizontal section path.

Accumulation operation not permitted

Only suitable for dry operation

Curving on both sides

Maximum permissible belt tensile force: 1250 N

Transport on ascending or descending sections up to about 15° possible. The maximum gradient depends on the properties of the material conveyed, section length, velocity and ambient conditions (test required)

Materials meet the requirements of EU 10/2011 and FDA CFR 21 (limitation static friction lining: Do not use in direct contact with fatty food.)

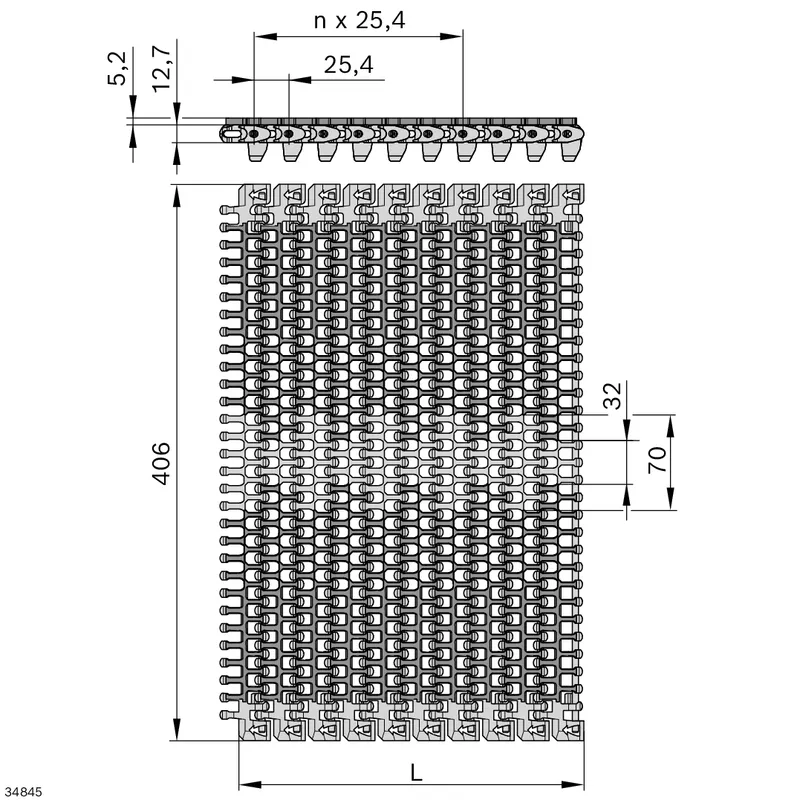

Specifications

Condition on delivery	Assembled
Delivery unit	1
Size [b] [mm]	420
Scope of delivery	Complete, incl. hinge rod
Length [L]	2997.0
Notice	If the static friction modular belt is used in an accessible area, the drive must be secured by the customer
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Belt element: PP; Hinge rod: PA; Static friction coating: TPE
Weight [kg]	7.7
