Bosch Rexroth 3842567562

STOP GATE VE 2/D-220

MPN: 3842567562
Category: Dampened stop gates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842567562?

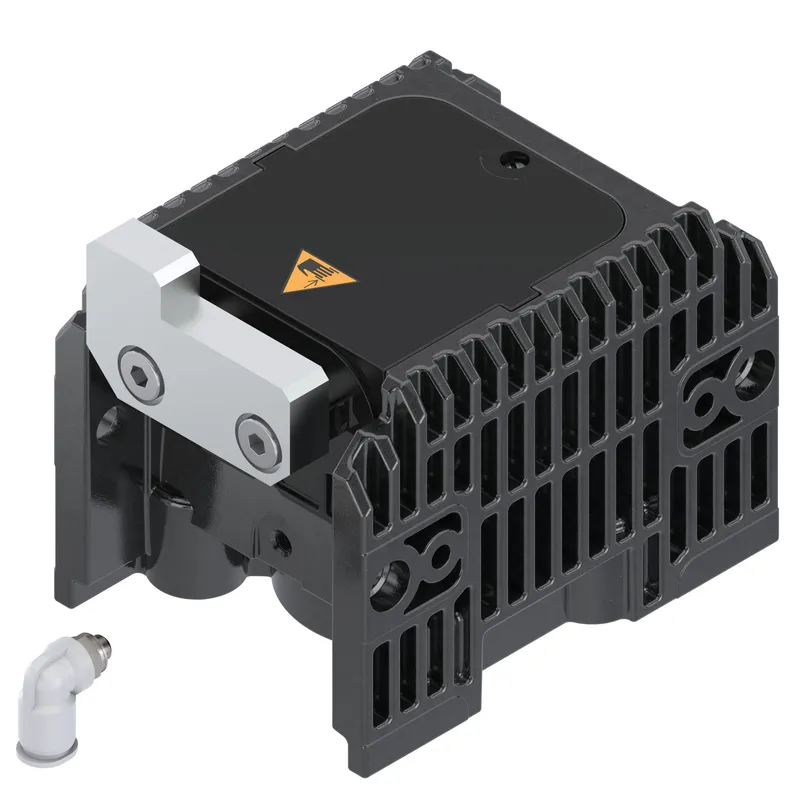

The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface. When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped. Mounted inside the tracks, directly on the conveyor section.

Pneumatic stop gate

Economical plastic version with double piston damper

Infinitely adjustable damping

Optimal damping for total WT weights up to 220 kg

Damping path 27.5 mm

Linear lowering stroke

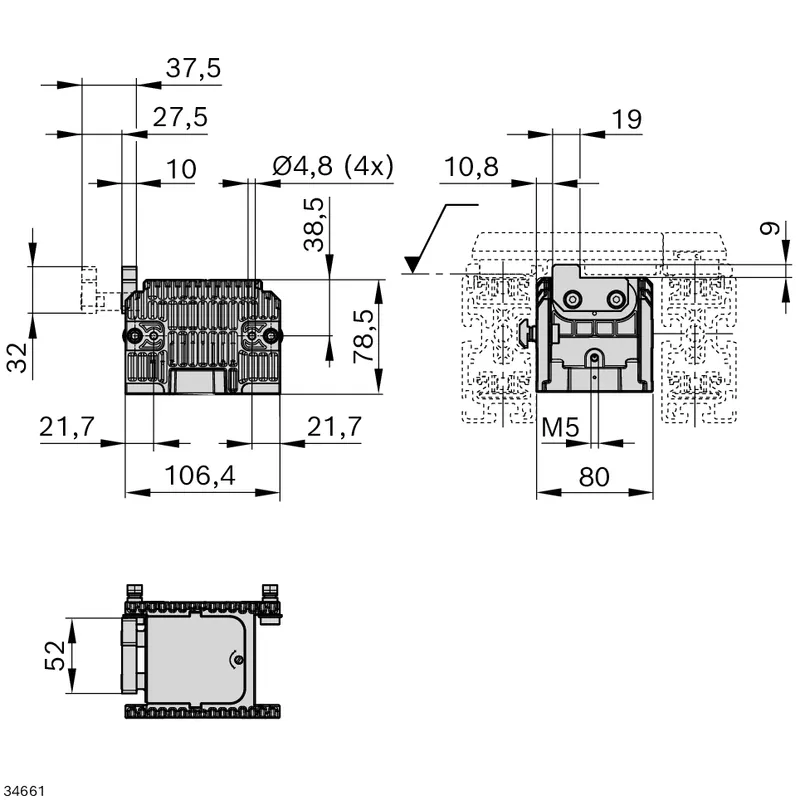

Short installation dimension

Can be combined with WT 2 and WT 2/F

Prepared for scanning the upper and lower positions with inductive proximity switches

Specifications

Condition on delivery	Assembled
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	+5 … +60 °C
Workpiece pallet total weight [mG] [kg]	220; 220
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. fastening material for assembly on the conveyor section ST 2/...; Pneumatic elements
Material information	Housing: Plastic; Stop cam: Steel, hardened

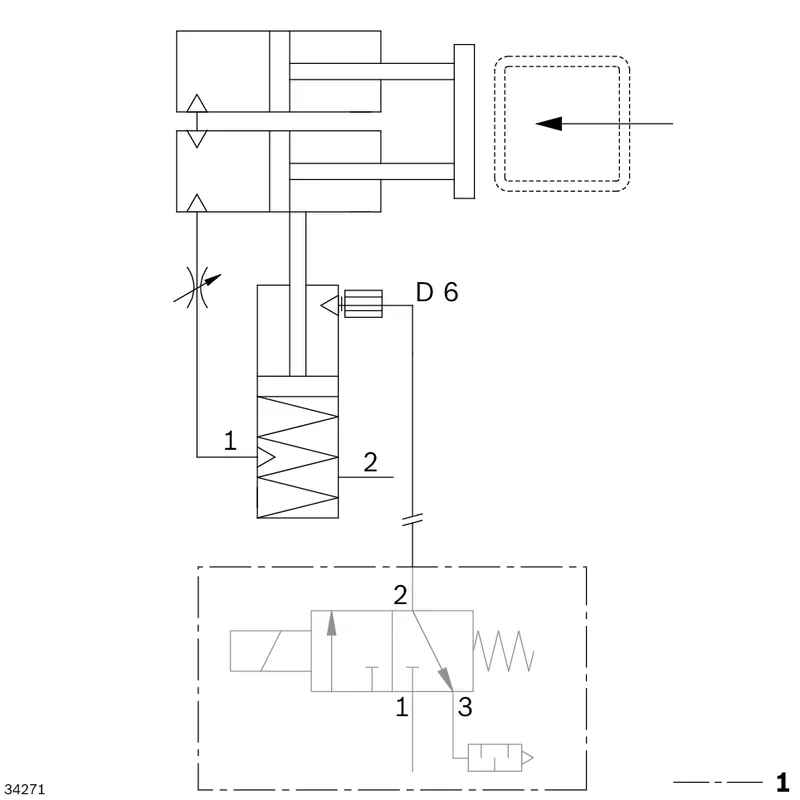

Pneumatic circuit diagram	1 Not included in the scope of delivery
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	28 ... 220 (accumulation roller chain); 8.5 ... 110 (belt/toothed belt); 8.5 ... 138 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	28 ... 180 (accumulation roller chain); 8.5 ... 110 (belt/toothed belt); 8.5 ... 138 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	28 ... 165 (accumulation roller chain); 8.5 ... 110 (belt/toothed belt); 8.5 ... 138 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	28 ... 135 (accumulation roller chain); 8.5 ... 108 (flat top chain); 8.5 ... 98 (belt/toothed belt)
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	28 ... 115 (accumulation roller chain); 8.5 ... 75 (belt/toothed belt); 8.5 ... 85 (flat top chain)
Recommended accessories	Return stop VE 2/RS
Weight [kg]	0.7
