Bosch Rexroth 3842567561

STOP GATE VE 1/D-15

MPN: 3842567561
Category: Pneumatic stop gate TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842567561?

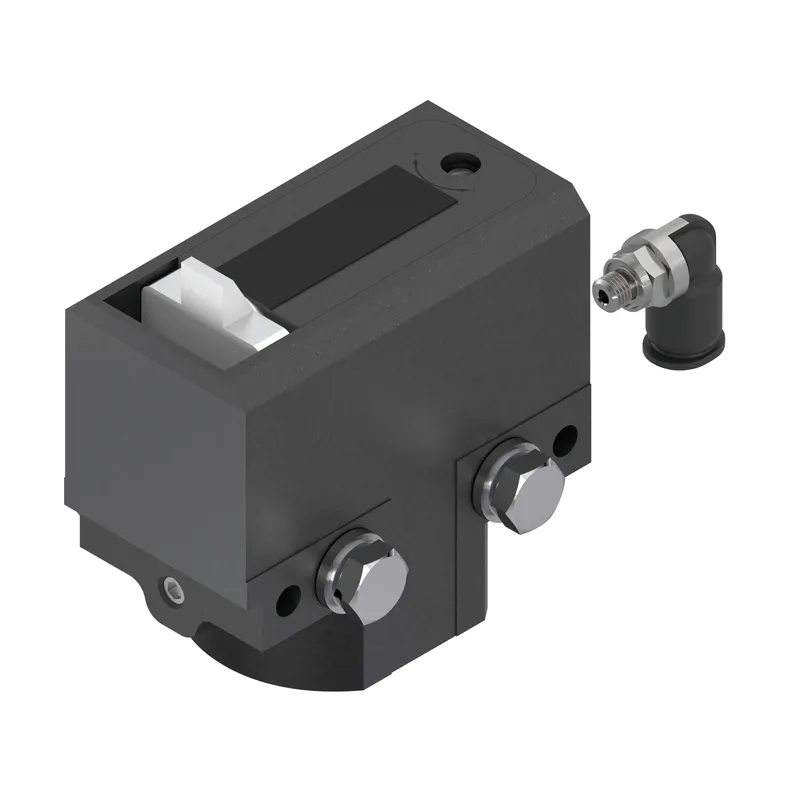

Pneumatic plastic separator VE 1/D-15 with damping allows optimum damping at a WT total weight of up to 15 kg.

Stops one or more accumulating workpiece pallets at the defined stop surface

The air damping can be adjusted via a throttle screw

Single-acting

The accessories must be adapted to the ambient conditions

The housing is made of plastic and the stop cam is made of hardened steel

Lowering stroke is 7 mm

Specifications

Condition on delivery	Assembled
Workpiece pallet total weight [mG] [kg]	15
Pneumatic straight connection [Ø] [mm]	4
Weight workpiece pallet [mWT] [kg]	0.17
Scope of delivery	Incl. fastening material for assembly on conveyor section; Pneumatic elbow fitting (pushlock type)
Notice	Clean room on request; Dry room on request
Min. workpiece pallet weight m	0.25 kg
Required accessories	Switch bracket
Recommended accessories	Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min
Weight [kg]	0.17
