Bosch Rexroth 3842564813
FRAME PROFILE 22,5X45 PG 24X6070MM
- MPN
- 3842564813
- Category
- Protective grille profile WG30
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth 3842564813?

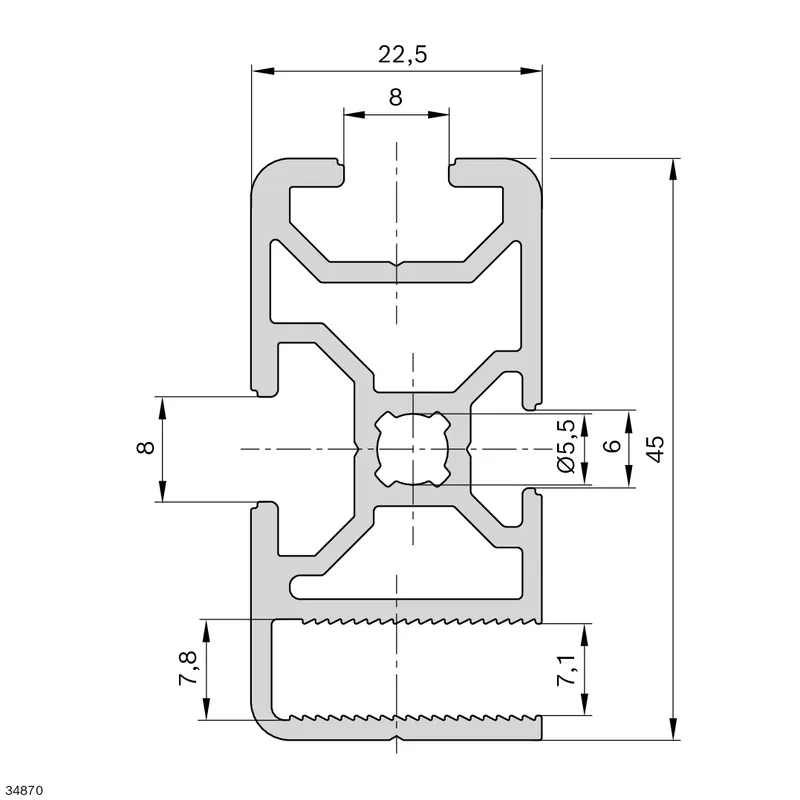

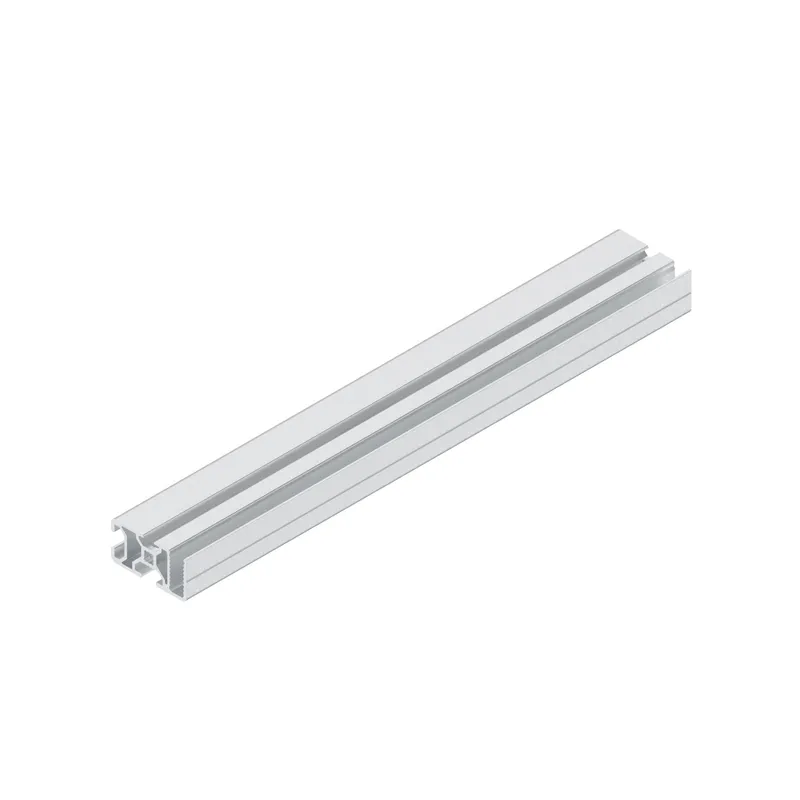

Frame profile 22.5x45 PG 24x6070 mm
For the low-cost assembly of protective frame with weld grille, woven wire grille WG40 or panel elements
Fastening of spot welding and woven wire grilles: Directly in the special profile slot
Fastening of panel elements: In the special profile slot using clamping profile (accessories)
Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |
| Profile slot | 6; 8 |
| Delivery unit | 24 |
| Length-related mass [m'] [kg/m] | 0.9 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 1.9 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 6.3 |
| Profile surface [A] [cm²] | 3.4 |
| Moment of resistance in the x-direction [Wx] [cm³] | 1.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 2.7 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Type - frame profile | 22.5x45 |
| Weight [kg] | 148.4 |
