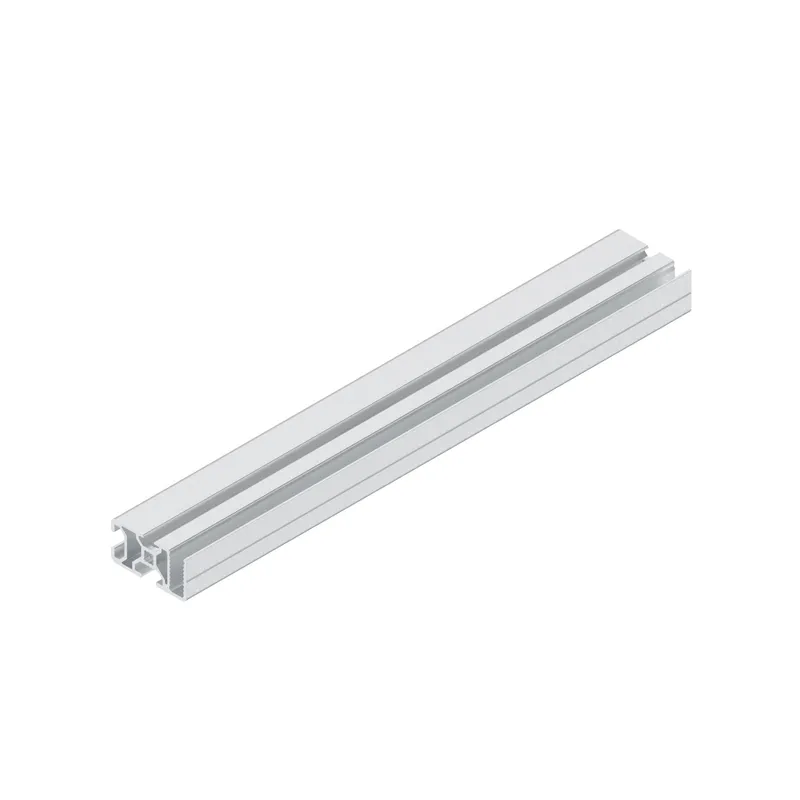

FRAME PROFILE 22,5X45 PG 6170MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Protective grille profile WG30 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842564812 be shipped?
3842564812 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842564812 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842564812 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842564812, subject to availability and destination.

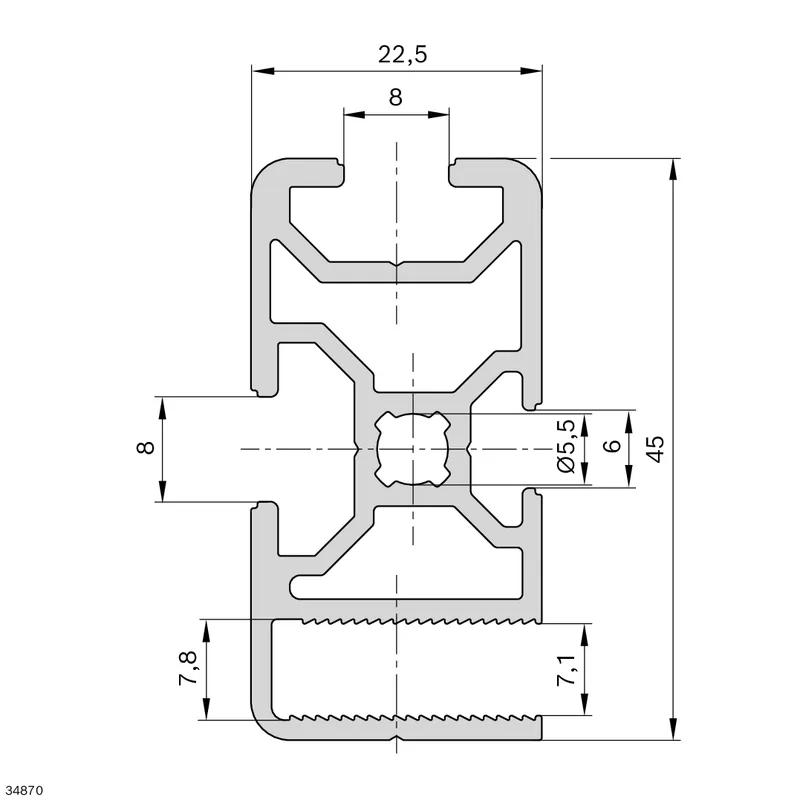

Frame profile 22.5x45 in usable length 6070 mm (+100 mm) Fastening of spot welding and woven wire grilles: Directly in the special profile slot Fastening of panel elements: In the special profile slot using clamping profile (accessories) For the low-cost assembly of protective frame with weld grille, woven wire grille WG40 or panel elements
Specifications
Specifications
| Condition on delivery | Single rod in standard length |
| Profile slot | 8; 6 |
| Packaging unit | 1 |
| Profile surface [A] [cm²] | 3.4 |
| Moment of resistance in the x-direction [Wx] [cm³] | 1.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 2.7 |
| Length-related mass [m'] [kg/m] | 0.9 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 1.9 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 6.3 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Type - frame profile | 22.5x45 |
| Weight [kg] | 5.73 |
