Bosch Rexroth 3842564181

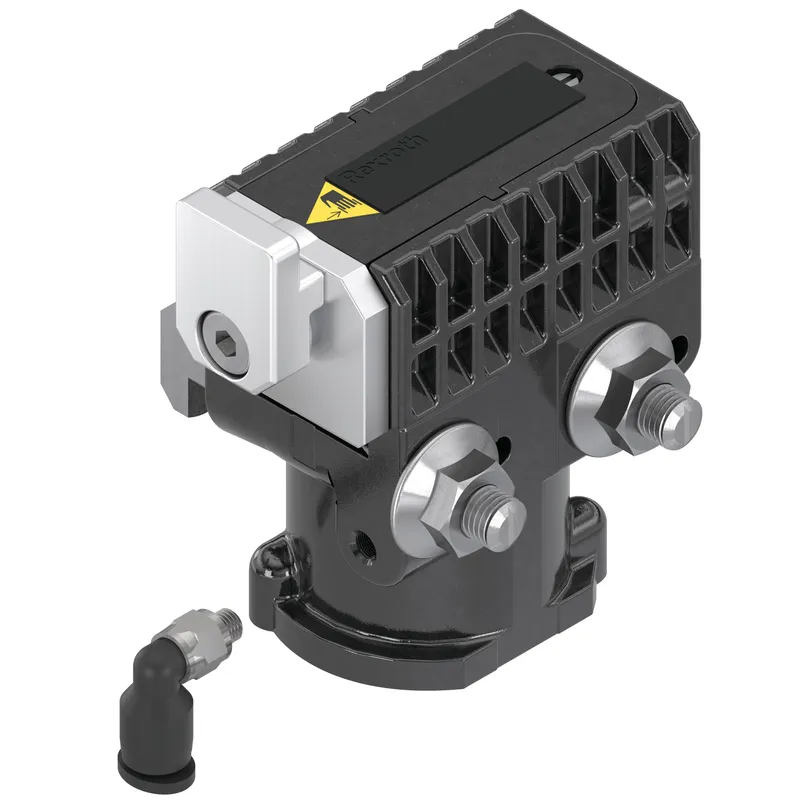

STOP GATE VE 2/D-80

MPN: 3842564181
Category: Dampened stop gates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842564181?

Dampened stopping of the first accumulating workpiece pallet

Pneumatic stop gate

Optimal damping for workpiece pallet total weights up to 80 kg

Infinitely adjustable damping

Can be combined with WT 2/E, WT 2 and WT 2/F

The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface

When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped

Mounted inside the tracks, directly on the conveyor section

In case of installation of the stop gate VE 2/D-80 inside the HP 2/L positioning plate, the mounting option is to be checked by means of CAD (MTpro)

Specifications

Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	80 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	60 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	40 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	26 kg
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Mass [m] [kg]	0.27
Operating temperature [T] max	+5 … +60 °C
Workpiece pallet total weight [mG] [kg]	80
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	Incl. fastening material for assembly on the conveyor section ST 2/...; Pneumatic elements
Delivery information	Fully assembled
Material information	Housing: Plastic; Stop cam: Steel, hardened
Min. workpiece pallet weight m	1 kg

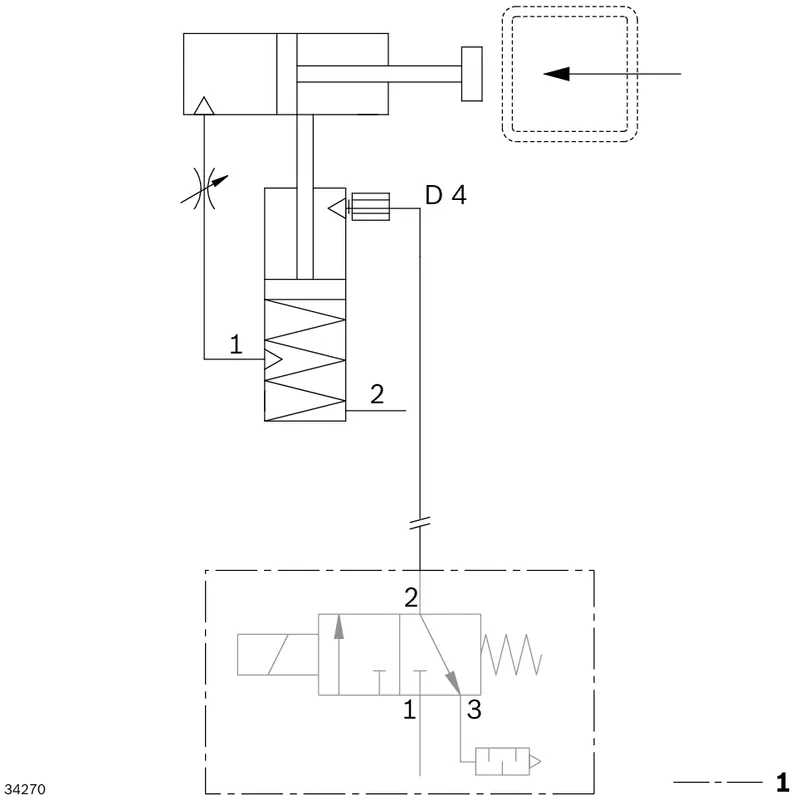

Pneumatic circuit diagram	1 Not included in the scope of delivery

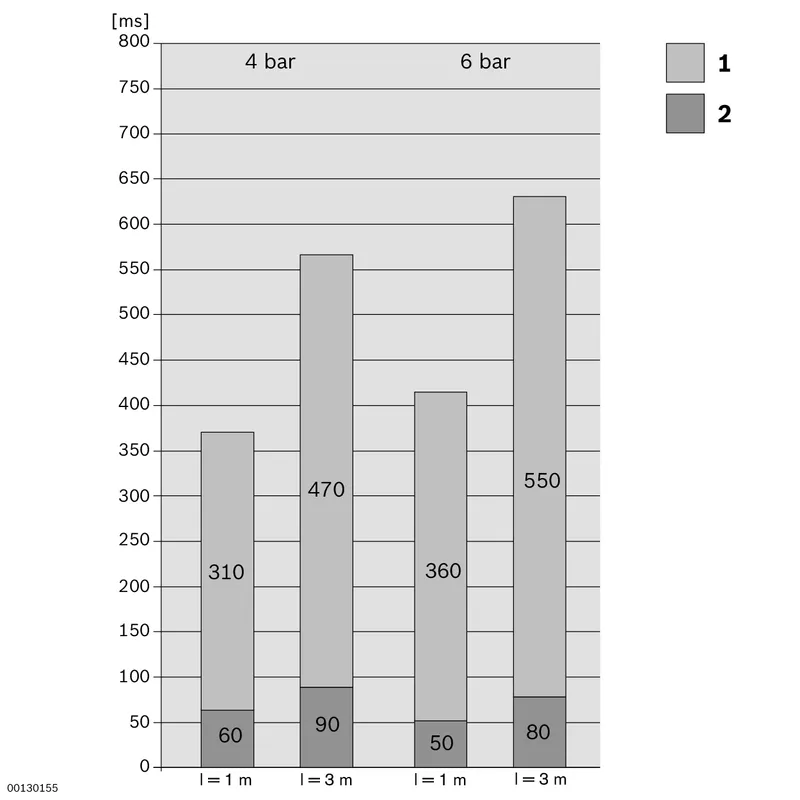

Opening/shutting times	1 Close; 2 Open at 4 bar; l = Hose length
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	18 kg
Recommended accessories	Position inquiry VE 2/D-80; Switch bracket for WT position inquiry; VE 2/RS Return Stop
Weight [kg]	0.41
