Bosch Rexroth 3842564155

HOLDING BRACKET SET 2X20PCS

MPN: 3842564155
Category: Height-adjustable workstation components

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842564155?

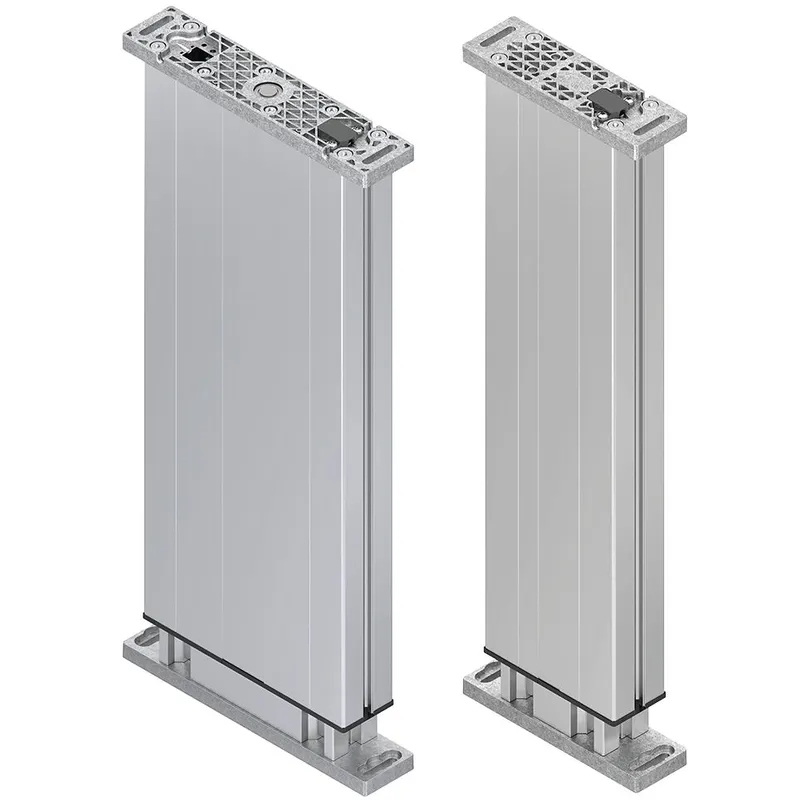

Holding bracket lift module set

Three lifting modules with different maximum lifting and pressure forces as well as lifting velocities for the continuous height adjustment of workplaces even under high loads.

Three lifting lengths per variant

Attachment by means of mounting plates at the face sides or using the integrated 10 mm slot

Incl. Connection cable; cable length: ~2m

Cable possible on the left or right side

Diagonal cover cap prevents crushing risk

All lifting modules are electrostatic discharge-enabled

Mounting plates are connected in a conductive manner

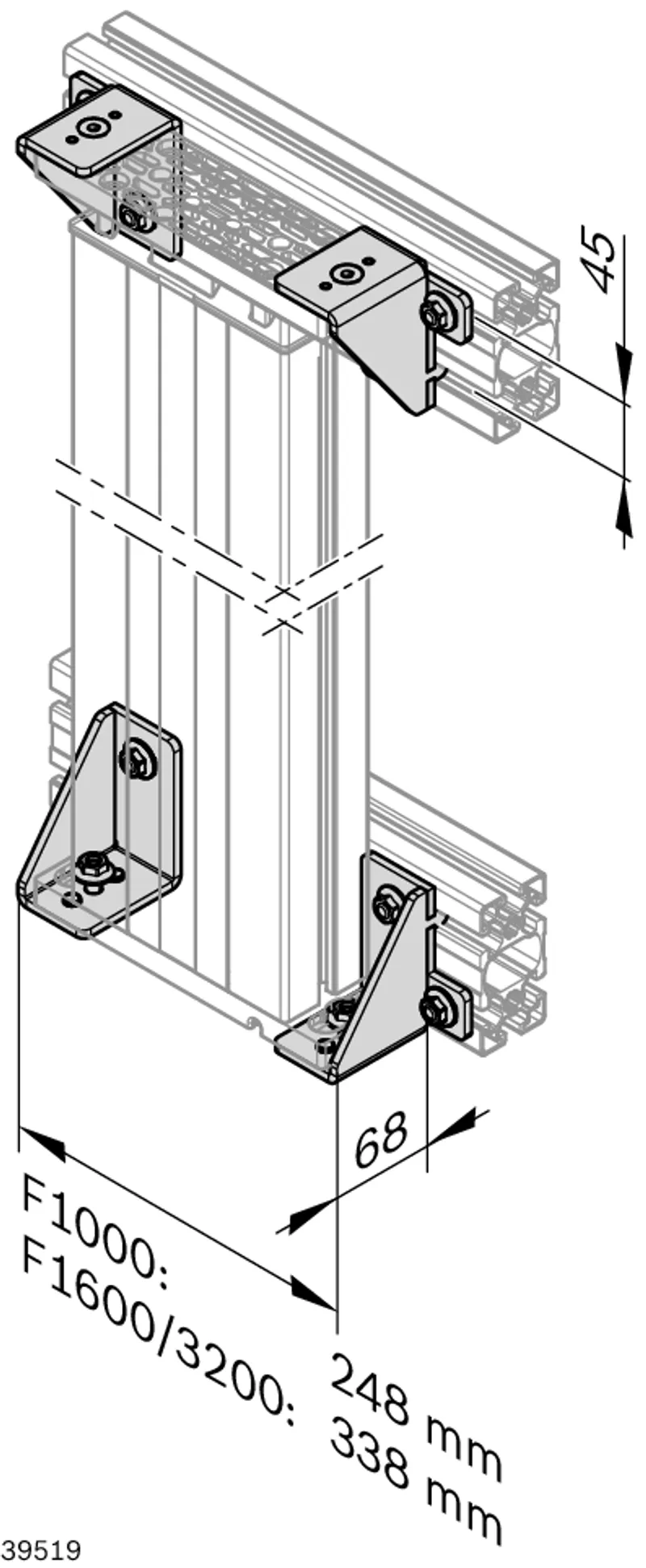

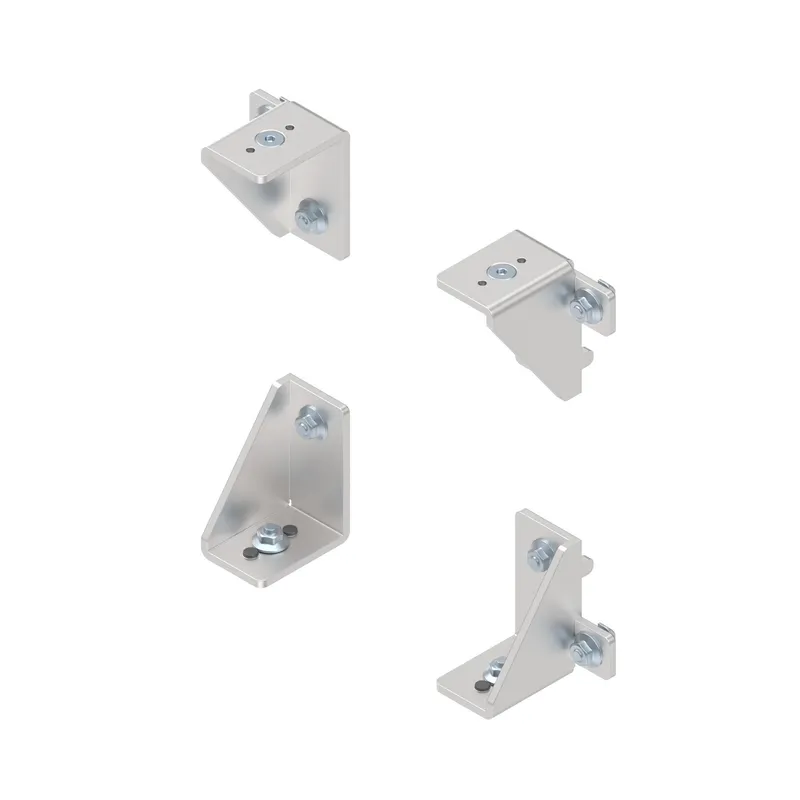

Attachment bracket set suitable for F1000, F1600 or F3200 lifting modules for lateral profile attachment (grid dimension 45mm)

Notice: According to DIN EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1: General requirements - 15.1 Sockets for accessories, the following applies: If the machinery or its associated equipment is equipped with outlets intended for accessories (e.g. hand-held power-operated tools, test equipment), the following shall apply:[...]- circuits supplying outlets with a rated current not exceeding 20 A shall be additionally protected by a residual current device (RCD) with a rated differential current of ≤ 30 mA.

Specifications

Maximum load version [Fmax] [N]	3200
Minimum load version [Fmin] [N]	1000
Notice	2x20: 40 x (suitable) for ten lifting modules
Material	Steel, galvanized
Weight [kg]	15.6
