Bosch Rexroth 3842563511
STOP GATE VE 2/D175-LS
- MPN
- 3842563511
- Category
- Dampened stop gates
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

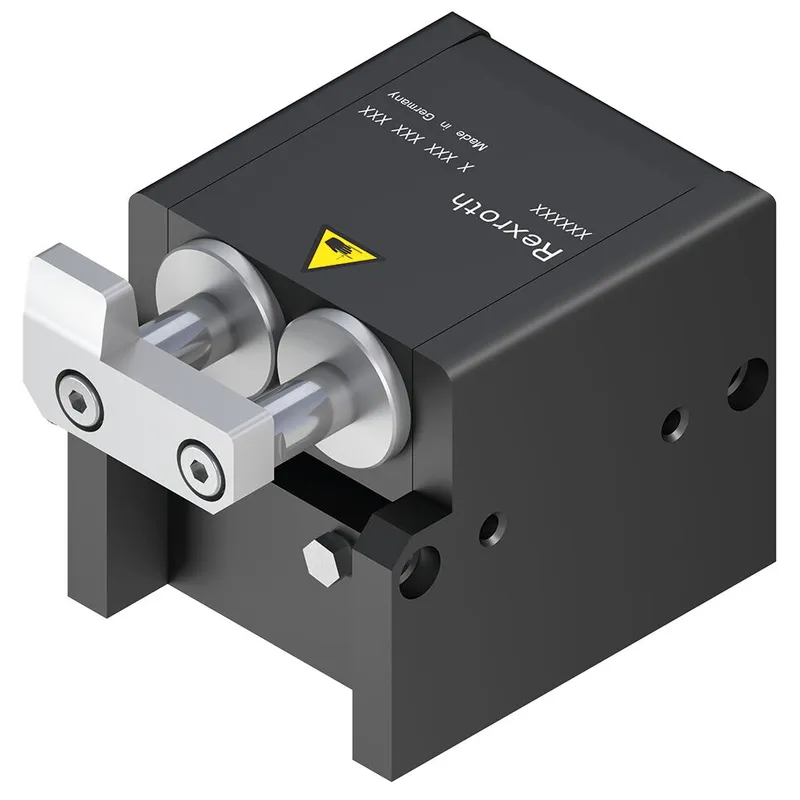

What is the Bosch Rexroth 3842563511?
Dampened stopping of the first accumulating workpiece pallet
Pneumatic stop gate
Especially sturdy all-metal design with double piston damper
Infinitely adjustable damping
Optimal damping for total WT weights up to 175 kg
Short damping path of 20 mm
Short damping time

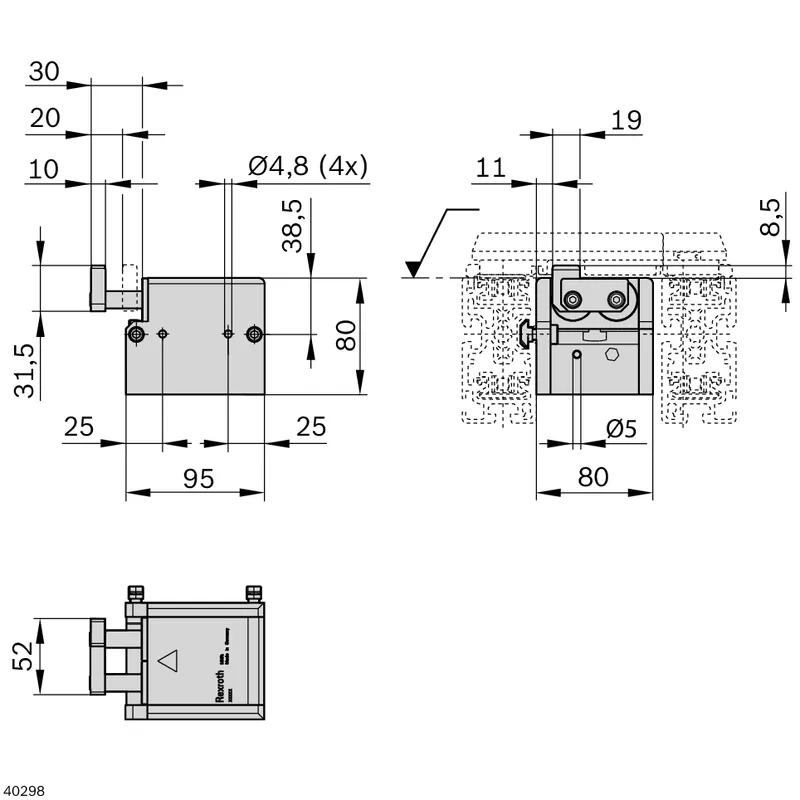

Short installation dimension
Can be combined with WT 2, WT 2/F and WT 2/LS
Suitable for use in an EPA
The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface
When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped
Mounted inside the tracks, directly on the conveyor section
Specifications
Specifications
| ESD | Yes |
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Operating temperature [T] max | +5 ... +60 °C |
| Workpiece pallet total weight [mG] [kg] | 175 |
| Pneumatic straight connection [Ø] [mm] | 6 |
| Scope of delivery | Incl. fastening material for assembly on the conveyor section ST 2/... |
| Delivery information | Assembled |
| Notice | High-temperature stop gate on request |
| Material information | Housing: aluminum, hard anodized; Stop cam: non-magnetic stainless steel; hardened |
| Min. workpiece pallet weight m | 5 kg |

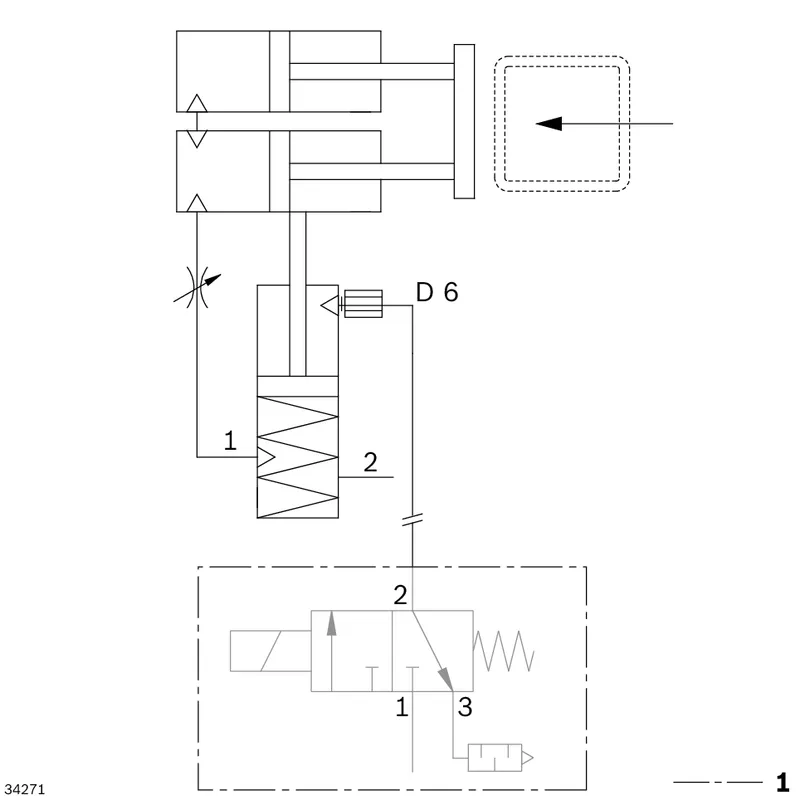

| Pneumatic circuit diagram | 1 Not included in the scope of delivery |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min | 175 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min | 160 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min | 145 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min | 110 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min | 90 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 24 m/min | 50 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 30 m/min | 35 kg |
| Recommended accessories | Return stop VE 2/RS |
| Weight [kg] | 1.6 |
