Bosch Rexroth 3842563538

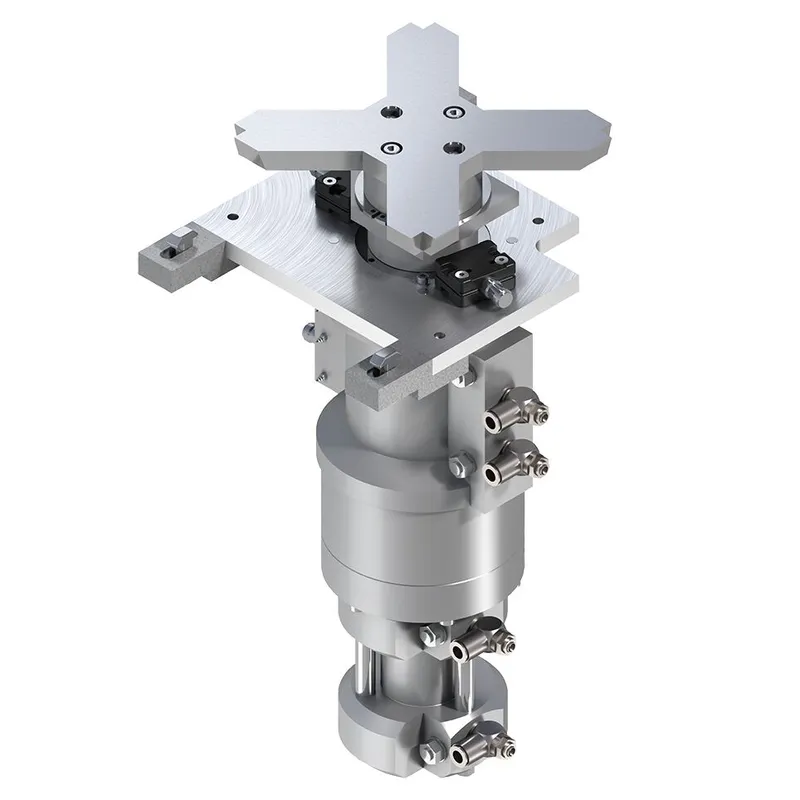

CHANGEOVER SET 240X240HD2-LS

MPN: 3842563538
Category: Lift rotary units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842563538?

Changeover kit HD 2-LS, 240 x 240

Turning angles on the Z axis: 90° or 180°. If necessary, the rotational direction of the HD 2/90° can be actuated individually for each workpiece pallet

WT lift 40 mm or 90 mm above transportation level. The version with a 40 mm lift is suitable for turning workpiece pallets directly above the conveyor section. If there are any components mounted at the side of the workpiece pallet, e.g. identification and data storage modules, it may be necessary to select the version with a 90 mm lift

Max. permitted total mass moment of inertia: 0.65 kgm 2

Can be combined with WT 2 and WT 2/LS (only with LS version)

Specifications

Scope of delivery	Incl. fastening material
Required accessories	Sensor M12x1 with rated switching distance S<sub>N</sub>≥ 4 mm, can be installed at 0.5 mm rather than being installed flush; Stop gate VE 2/...
Weight [kg]	0.72
