Bosch Rexroth 3842559549

SWITCH BRACKET SH 2/EP SET COMPL

MPN: 3842559549
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842559549?

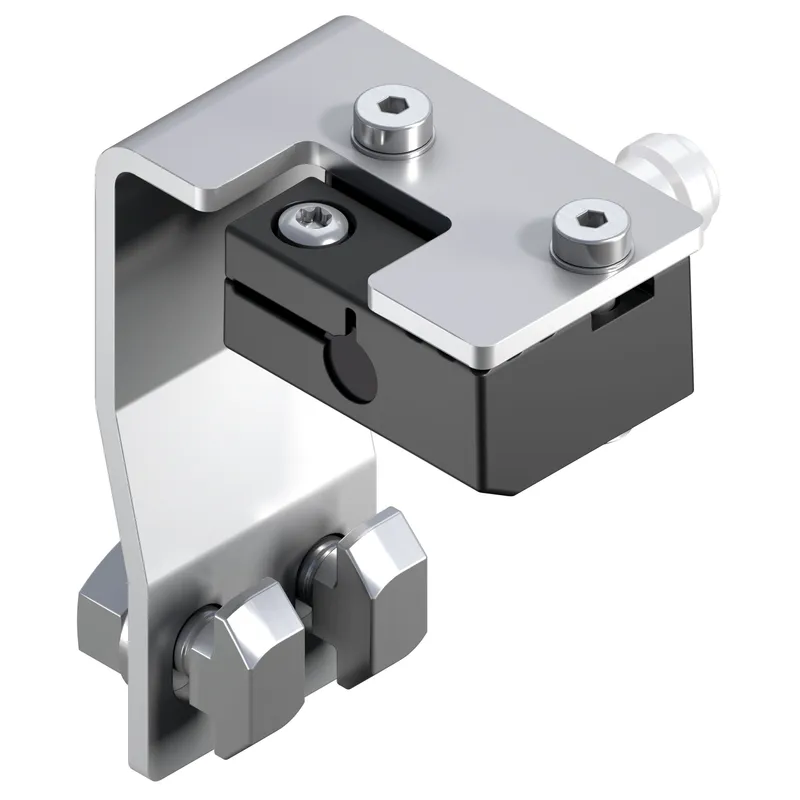

SH 2/EP switch bracket

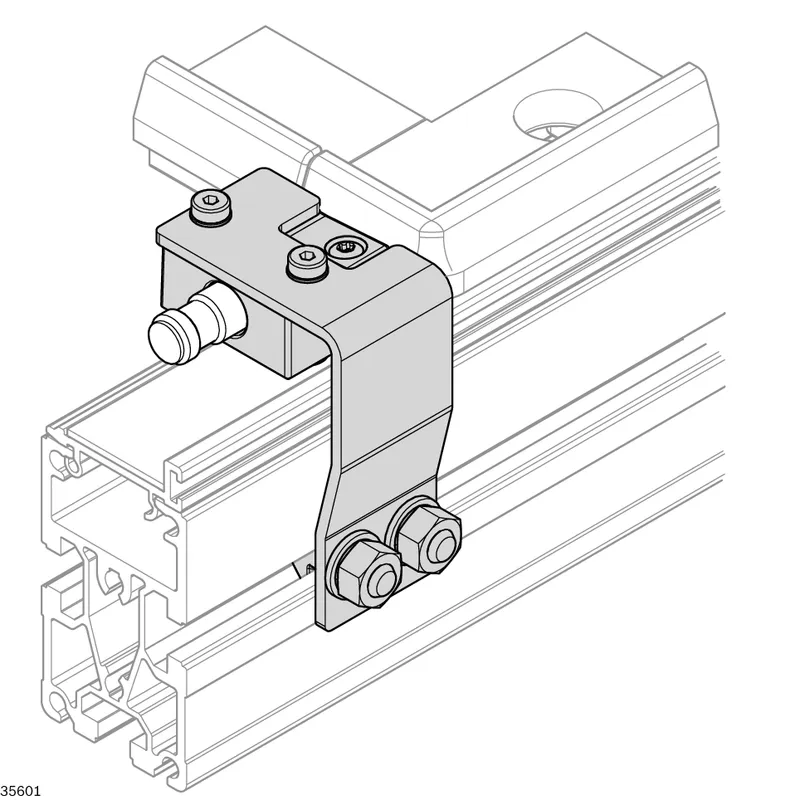

For fastening a sensor and attaching to the belt end of a conveyor section

Suitable for querying the workpiece pallet position

The switch bracket is not traversable

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

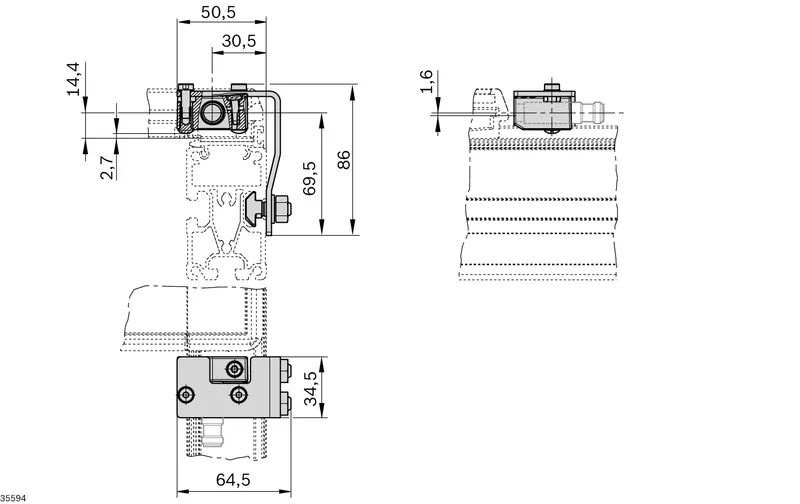

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The short length of the switch bracket enables recognition of the operating status of the sensor

The switch bracket is not suitable for node control on HQs and EQs

Specifications

Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Material	Steel/PA 66
Required accessories	Sensor M12x1, S<sub>N</sub> = 8 mm, L ≥ 44 mm can be installed flush or not flush
Weight [kg]	0.16
