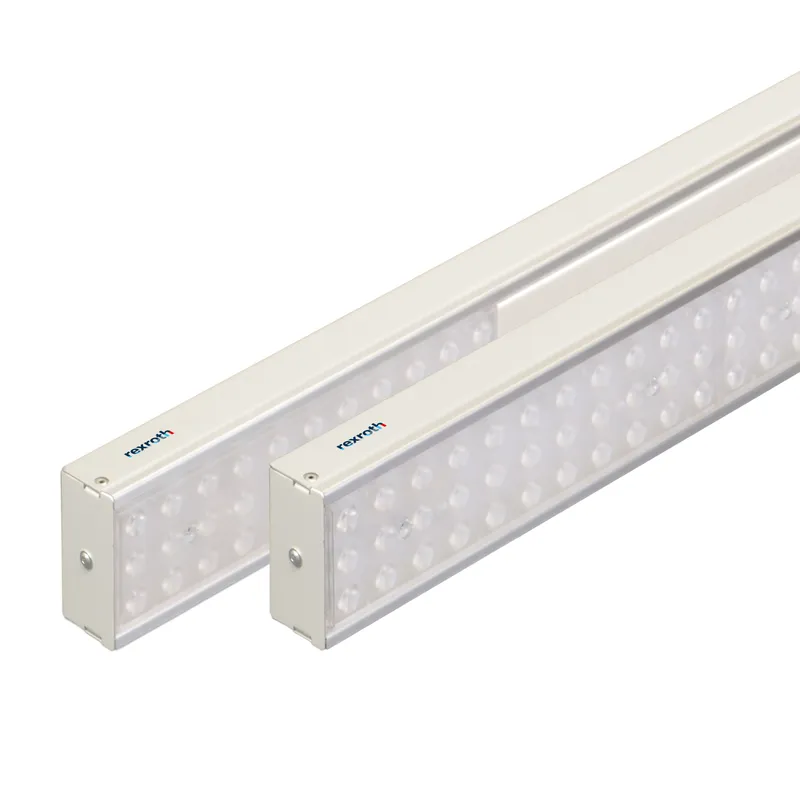

Bosch Rexroth 3842559393

SYSTEM LAMP SL12LED ECONOMIC WIDE

MPN: 3842559393
Category: Lighting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842559393?

System lamp SL 12 LED economic wide

Cost-efficient solution for the ergonomic lighting of workplaces

High light output with low energy consumption

Compact dimensions and low weight

Glare-free light and perfect beam angle thanks to matte wide optics

SL 12 LED economic ideal for workstations with dimensions up to 1000 x 600 mm

SL 12 LED economic wide ideal for workstations with dimensions up to 1600 x 600 mm

Mounting on profile rail or bottom side of profile rail

Note: According to IEC 60364-4-4 1: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a residual current protective device (RCD) in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use.

Specifications

Economic	Yes
Mass [m] [kg]	2.65
Protection class	IP20 (DIN EN IEC 60529)
Beam angle [°]	60
Color temperature [K] [K]	5000
Illuminance (lx) [lx]	550.0
Luminous efficiency [lm/W]	≈ 140
Energy efficiency	11,5 ± 0,5
Service life	50000
Voltage/frequency combination [U/f]	220-240 V/50 Hz; 60 Hz
Scope of delivery	Includes fastening kit (10 mm slot); Including short flexible connection cable (~ 16 cm) and GST plug
Notice	Measuring conditions: Workstation dimension 1600 x 600 mm and measuring distance between working plate and lamp 1.25 m
Material information	Housing: Sheet steel, painted
Required accessories	Mains cable or connecting cable
Recommended accessories	H-distributor POWER (230 V) or T-plug
Weight [kg]	2.8
