Bosch Rexroth 3842559395

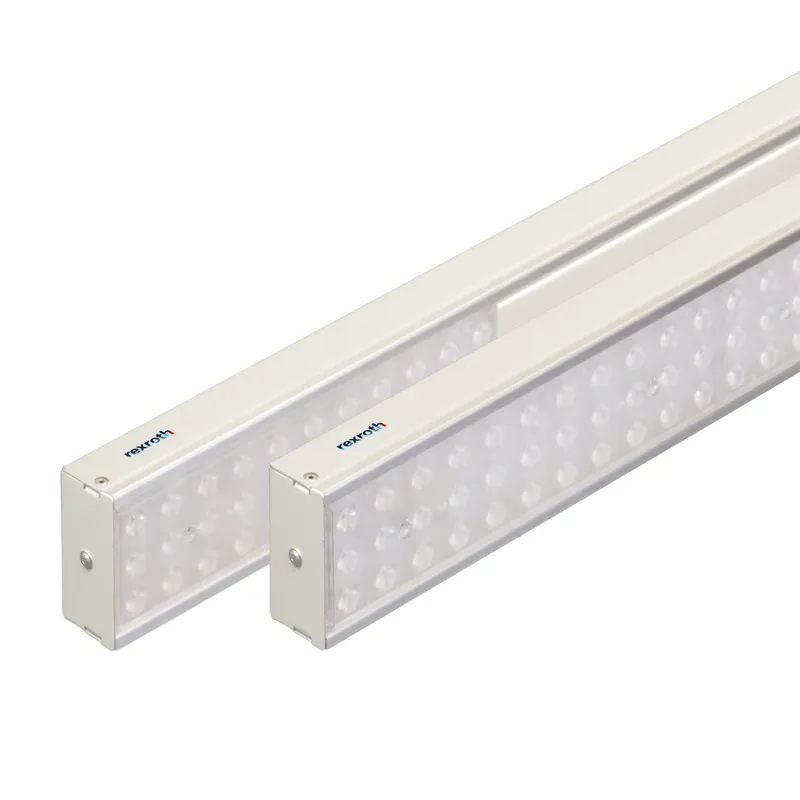

SYSTEM LAMP SL12LED ECO WIDE

MPN: 3842559395
Category: Lighting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842559395?

System lamp SL 12 LED economic wide

Compact dimensions and low weight

Glare-free light and perfect beam angle thanks to matte wide optics

Mounting on profile rail or bottom side of profile rail

Particularly suitable for workstations intended for packing operations and heavy assembly work

Specifications

Conformity	CSA; UL
Economic	Yes
Mass [m] [kg]	2.65
Protection class	IP20 (DIN EN IEC 60529)
Beam angle [°]	60
Color temperature [K] [K]	5000
Illuminance (lx) [lx]	550.0
Luminous efficiency [lm/W]	≈ 140
Energy efficiency	11,5 ± 0,5
Service life	50000
Voltage/frequency combination [U/f]	120-240 V/50 Hz; 60 Hz
Scope of delivery	Includes fastening kit (10 mm slot); Including short flexible connection cable (~ 16 cm) and GST plug
Notice	Measuring conditions: Workstation dimension 1600 x 600 mm and measuring distance between working plate and lamp 1.25 m
Material information	Housing: Sheet steel, painted
Required accessories	Mains cable or connecting cable
Recommended accessories	H-distributor POWER (230 V) or T-plug
Weight [kg]	2.8
