Bosch Rexroth 3842553029

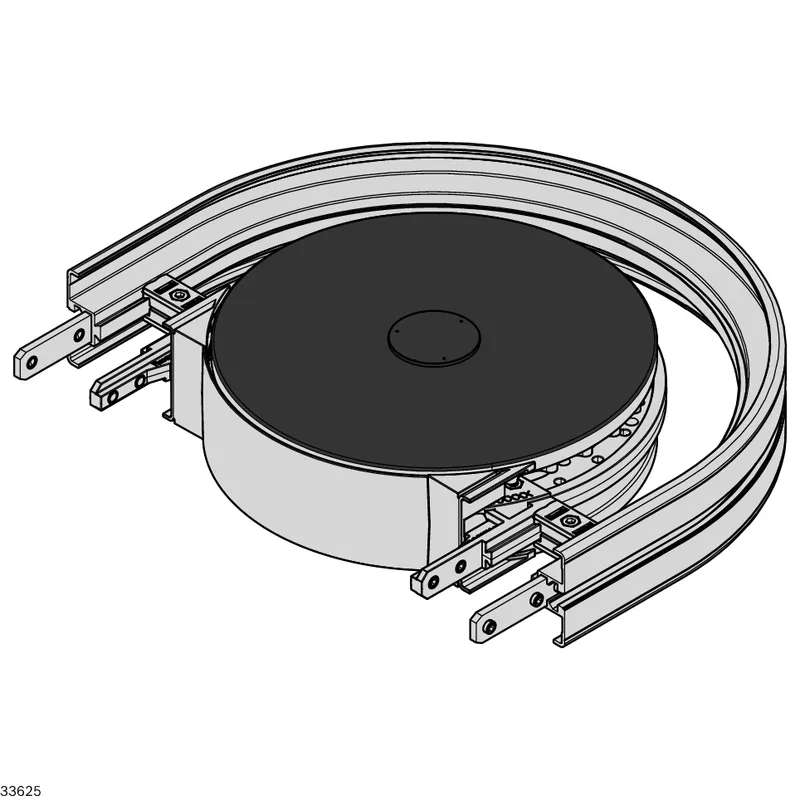

CAM WHEEL 65+ AL 30° ESD

MPN: 3842553029
Category: Curve wheel ESD

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842553029?

Curve wheel AL ESD VFplus 65 30°

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain

It enables low-friction direction changes with very small radii

No interfering contours above chain plate height

Specifications

ESD	Yes

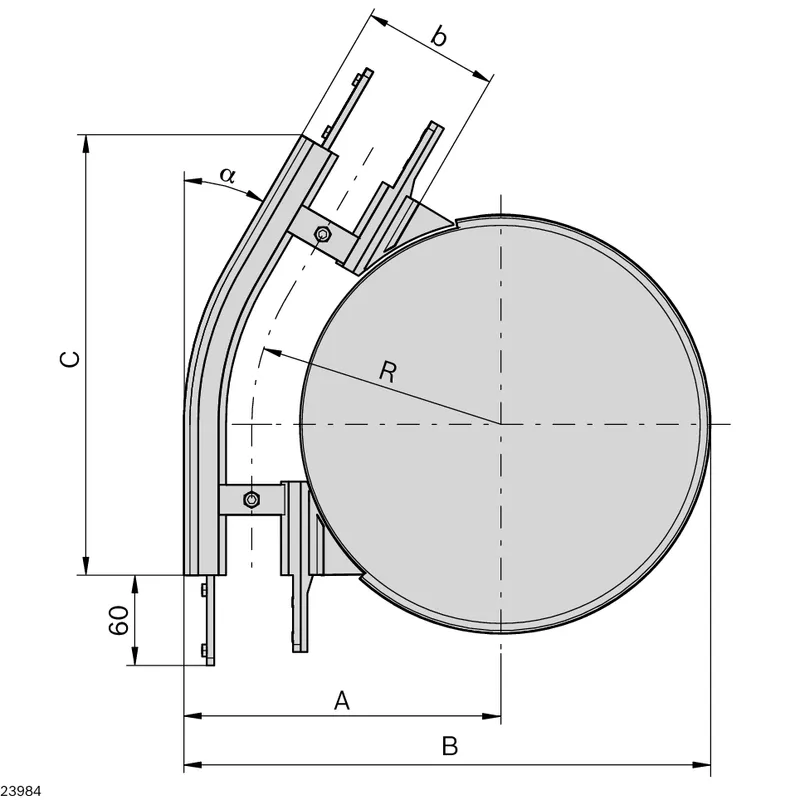

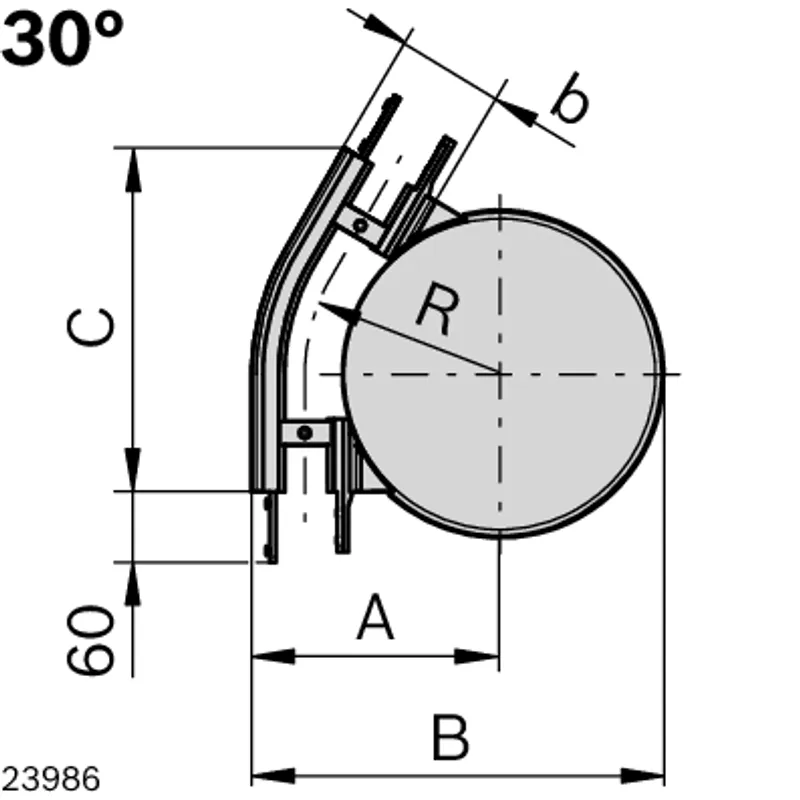

Deflection angle [α] [°]	30
Dimension A [mm] [mm]	185.5
Size [b] [mm]	65
Dimension b [mm]	324.5
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain wheel: PA ESD, black; Housing: Diecast aluminum
Actual chain length [m]	2x 0,28
Effective sliding rail length [m]	2x 0,34
Weight [kg]	3.46
