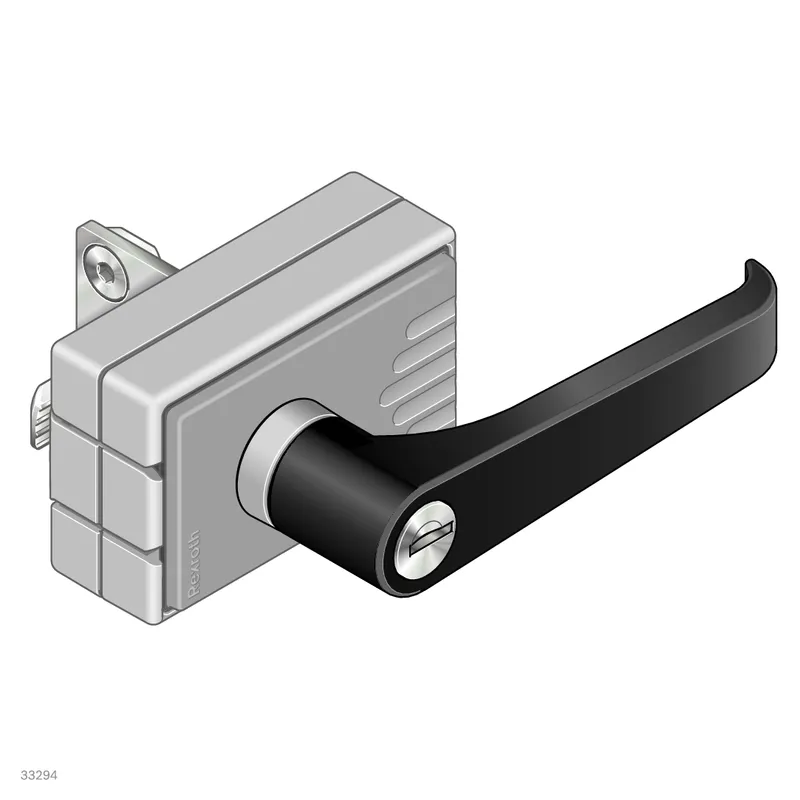

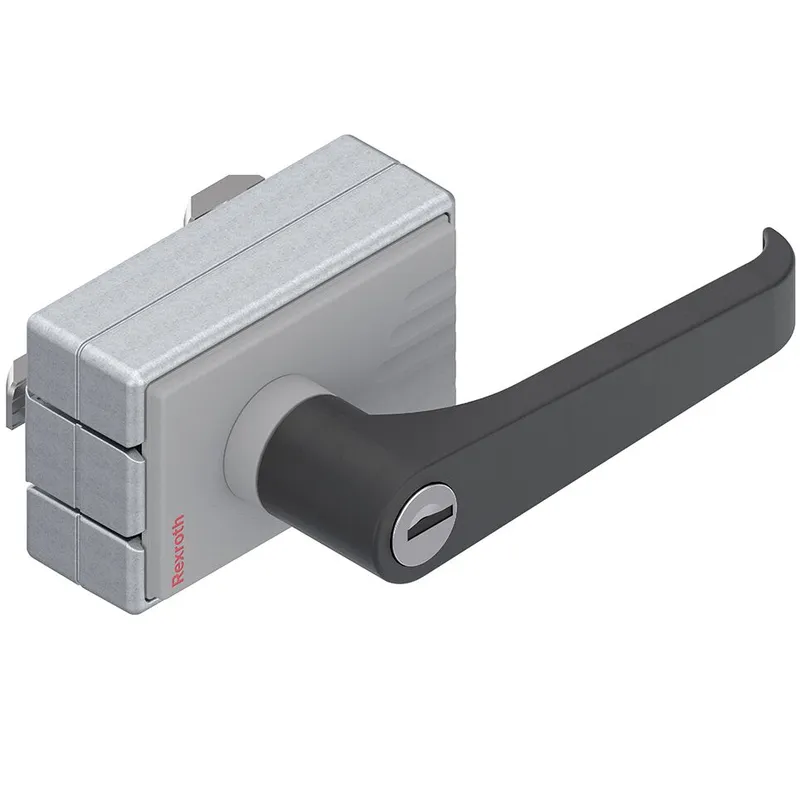

Bosch Rexroth 3842548971
DOOR LOCK MULTI USE,RANDOM KEY
- MPN
- 3842548971
- Category
- Door lock
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842548971?
Door lock "multi-use" for swing and sliding doors, standard closing

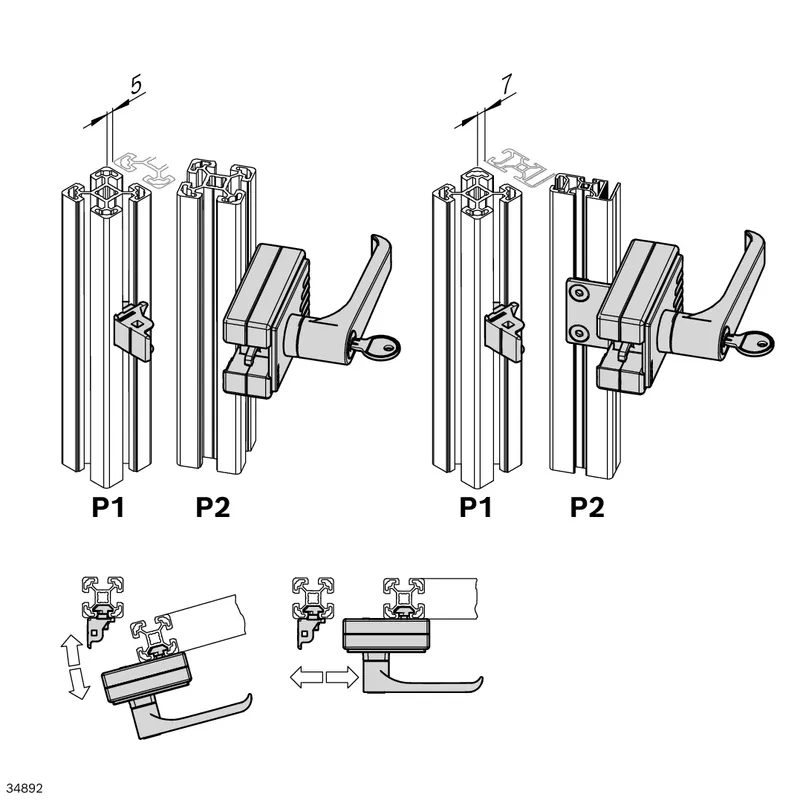

Opening to the right and left
Compatible with numerous profile combinations
“Standard locking” variant with random key selection (each lock has a different key)
Version with door handle or as two-way lock
Covered fastening screws

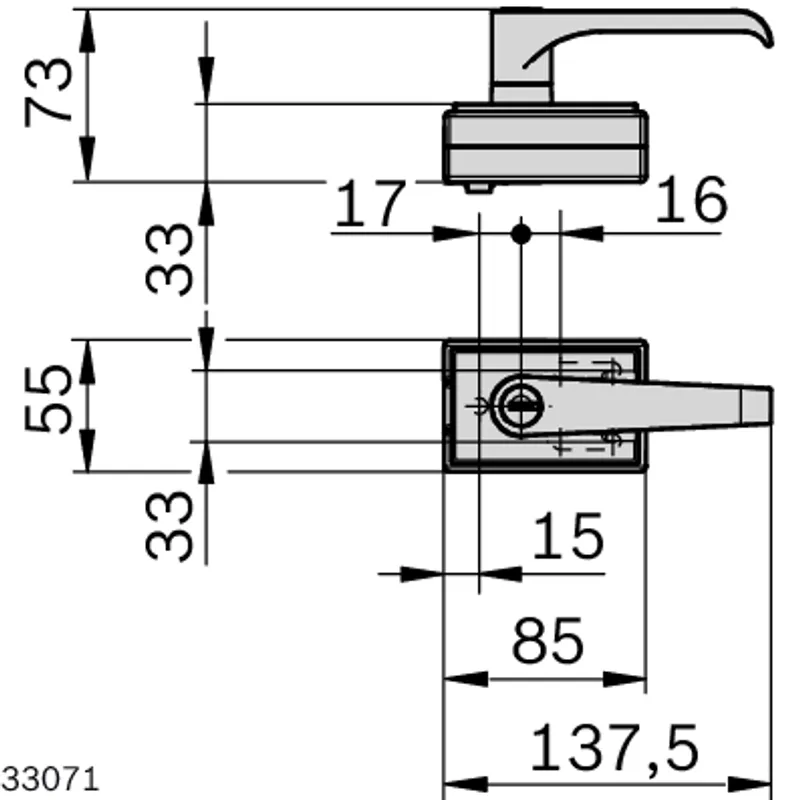

Differing gap measurements for doors <400 mm with modular dimensions up to 45 mm and <600 mm for modular dimensions of 50 mm (see assembly instructions 3 842 554 184)
Profile finishing: not required
Specifications
Specifications
| Profile slot | 10; 8 |
| Door type | Swing door; sliding door |
| Series | Multi Use |
| Packaging unit | 1 |
| Scope of delivery | Incl. 3 x key, fastening material (FS) |
| Material information | Cover: PP signal gray (RAL 7004); Door handle: PA6, black; Fastening material: Steel, galvanized; Housing: Diecast zinc |
| Fastening material | 1x cylinder head screw ISO4762-M6x12; 1x cylinder head screw ISO4762-M6x16; 2x cylinder head screw DIN7984-M6x30; 2x cylinder head screw DIN7984-M6x35; 3x T-nut 10 M6; 3x T-nut 8 M6; 3x washer ISO7089-6 |
| Recommended accessories | Adapter plate for assembly of the door lock to a WG40 or WG30 woven wire grille profile (p. ) |
| Weight [kg] | 0.68 |
3842548971: frequently asked questions
When can 3842548971 be shipped?
3842548971 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842548971 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842548971 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842548971, subject to availability and destination.
