Bosch Rexroth

Bosch Rexroth 3842549017

CONNECTING KIT 120+ BRIDGE PASS

MPN: 3842549017
Category: Drive and return unit AL, connection kit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842549017?

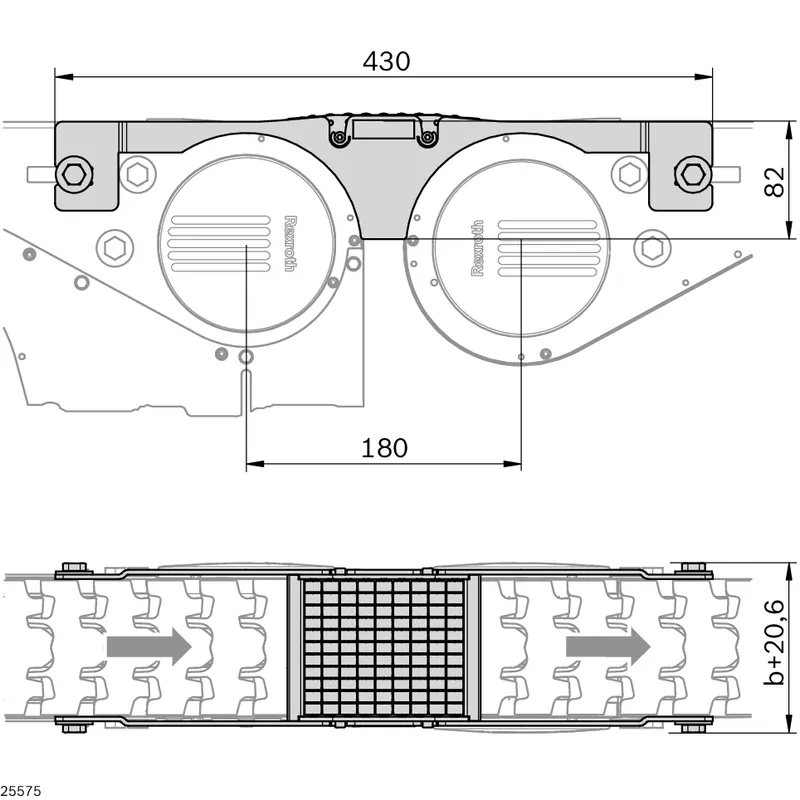

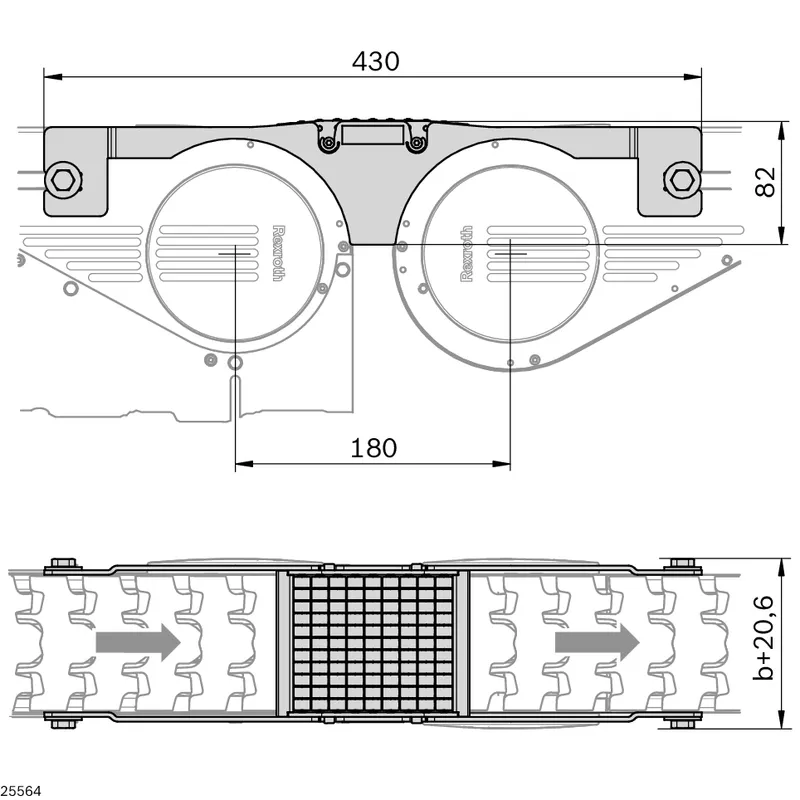

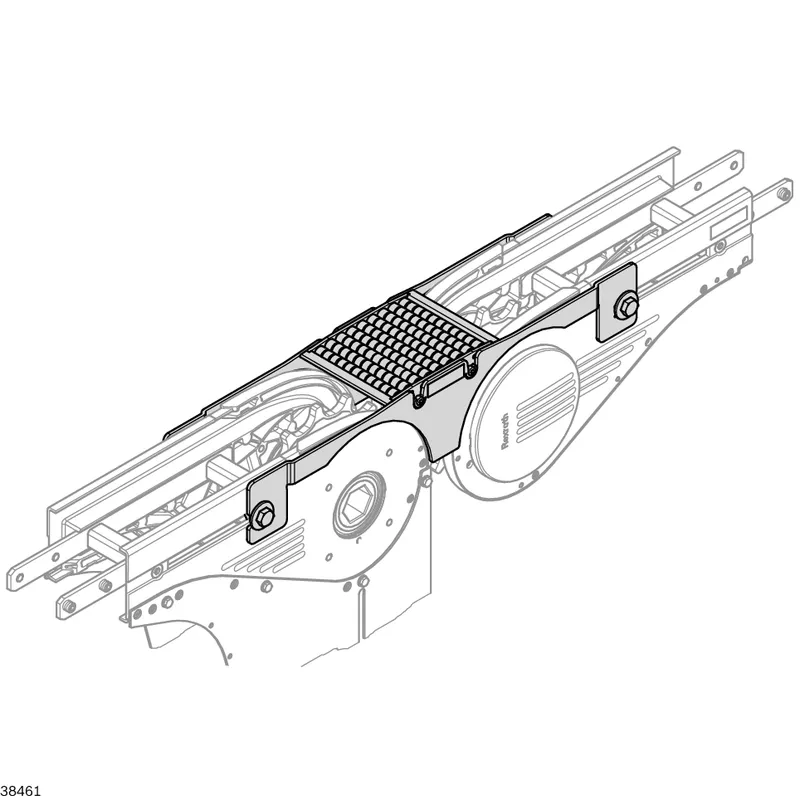

Connection kit passive bridge VFplus 120

The passive bridge is used as a transfer unit between the basic unit and return unit or with the connection drive to bridge the conveyor trench

Only for flat conveyor chain and static friction chain

For dimensionally stable products with an even transport surface

Height adjustment: Approx. 2 mm

The conveyed goods are transferred via passive rollers

Suitable for goods from approx. 300 mm length

Can be retrofitted into a standard configuration at any time

Specifications

Size [b] [mm]	120
Scope of delivery	Incl. fastening material
Delivery information	Partially assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Non-rusting steel 1.4301, POM
Weight [kg]	1.19
