Bosch Rexroth 3842548970
DOOR LOCK MULTI USE,UNIFORM KEY
- MPN
- 3842548970
- Category
- Door lock
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842548970?

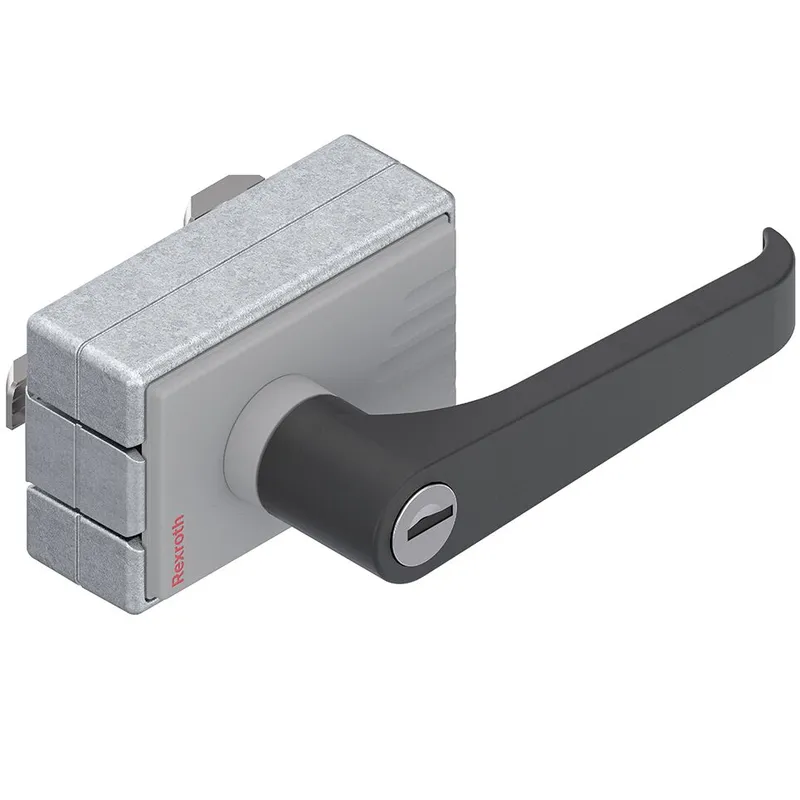

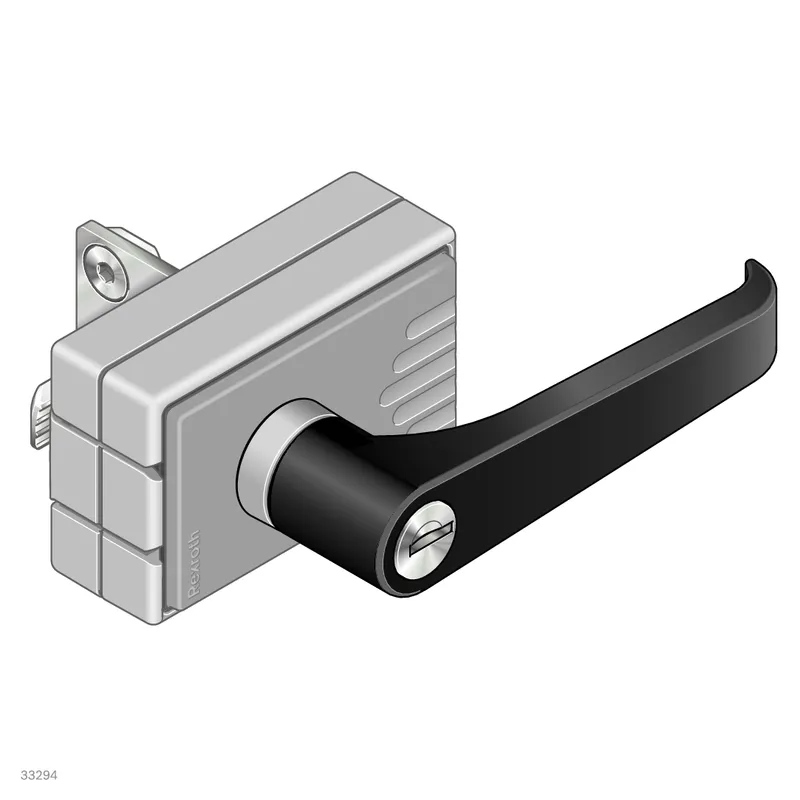

Door lock "multi-use" for swing and sliding doors, uniform locking

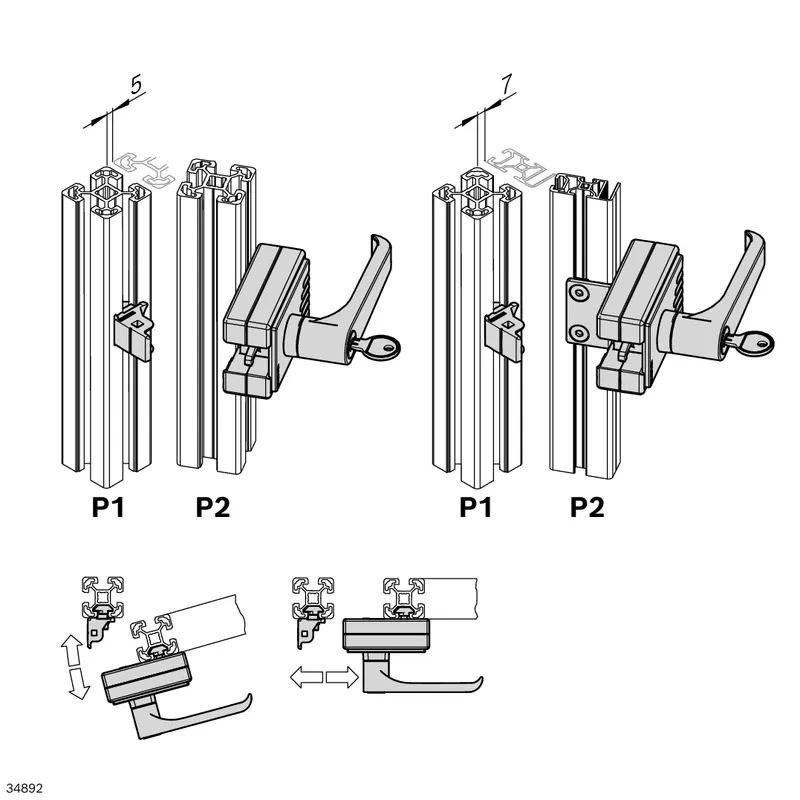

Opening to the right and left
Compatible with numerous profile combinations
“Uniform locking” variant always has the same key
Version with door handle or as two-way lock
Covered fastening screws
Differing gap measurements for doors <400 mm with modular dimensions up to 45 mm and <600 mm for modular dimensions of 50 mm (see assembly instructions 3 842 554 184)
Profile finishing: not required
Specifications
Specifications
| Profile slot | 10; 8 |
| Door type | Swing door; sliding door |
| Series | Multi Use |
| Packaging unit | 1 |
| Scope of delivery | Incl. 3 x key, fastening material (FS) |
| Material information | Cover: PP signal gray (RAL 7004); Door handle: PA6, black; Fastening material: Steel, galvanized; Housing: Diecast zinc |
| Fastening material | 1x cylinder head screw ISO4762-M6x12; 1x cylinder head screw ISO4762-M6x16; 2x cylinder head screw DIN7984-M6x30; 2x cylinder head screw DIN7984-M6x35; 3x T-nut 10 M6; 3x T-nut 8 M6; 3x washer ISO7089-6 |
| Weight [kg] | 0.67 |
3842548970: frequently asked questions
When can 3842548970 be shipped?
3842548970 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842548970 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842548970 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842548970, subject to availability and destination.
