Bosch Rexroth 3842547949

ASSEMBLY KIT VF+ 65 30° CURVE WHEEL

MPN: 3842547949
Category: Lateral guide for workpiece pallets

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547949?

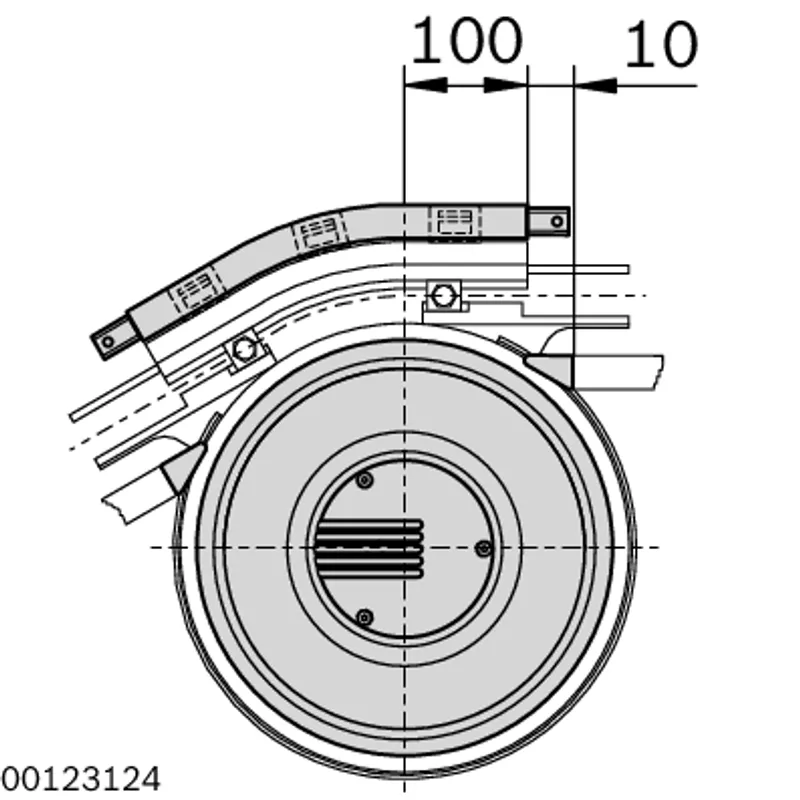

Lateral guide 30°, VFplus 65

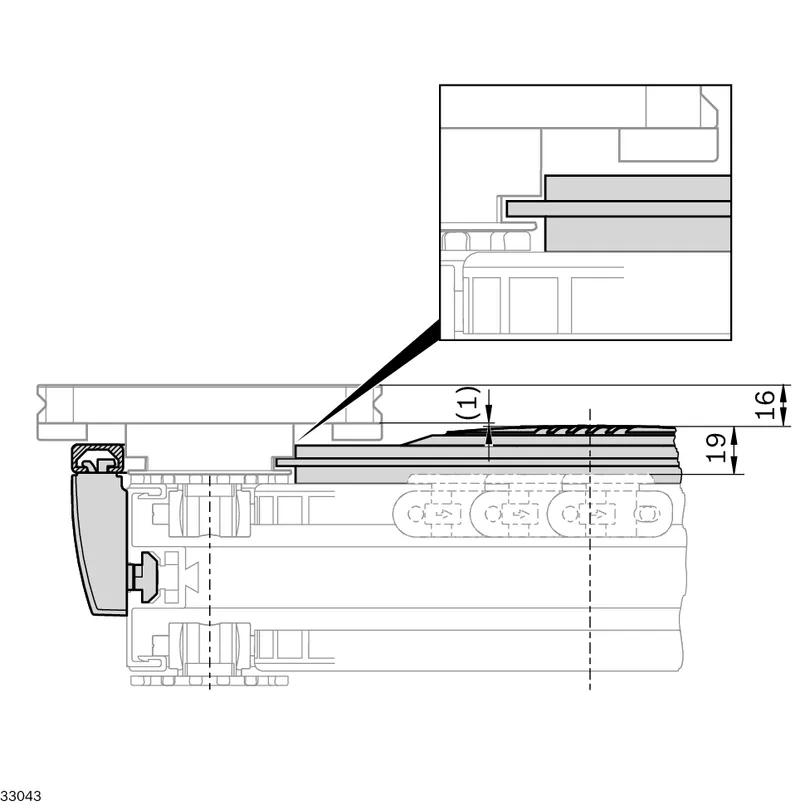

Lateral guide of the workpiece pallet (WT) in the wheel curve or curve wheel drive

Prevents the WT from ascending in accumulation operation or tipping over at high conveying speeds

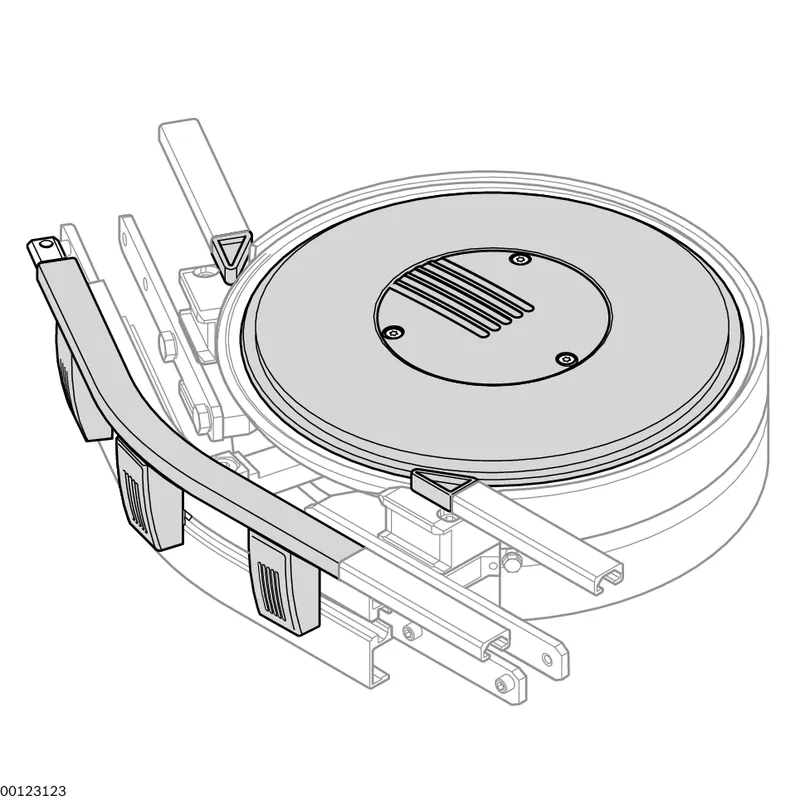

Complete kit for mounting on an existing curve wheel or curve wheel drive

Lateral guide for curve wheels with other angles as well as lateral guide for curves available on request

Specifications

Size [b] [mm]	65
Scope of delivery	Kit incl. fastening parts (as shown)
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Fastening parts: Steel, galvanized; Guide disc, holder: PA, black; Guide rail: Aluminum; natural, anodized
Weight [kg]	1.5
