Lateral guide for workpiece pallets Parts

Bosch Rexroth

SUPPORT VF+ PALLET GUIDE HD

Bosch Rexroth

SUPPORT 30X56X21,5

Bosch Rexroth

CONNECTION LINK 8/50 VF

Bosch Rexroth

ASSEMBLY KIT VF+ 90 90° CURVE WHEEL

Bosch Rexroth

ASSEMBLY KIT VF+ 90 45° CURVE WHEEL

Bosch Rexroth

ASSEMBLY KIT VF+ 90 30° CURVE WHEEL

Bosch Rexroth

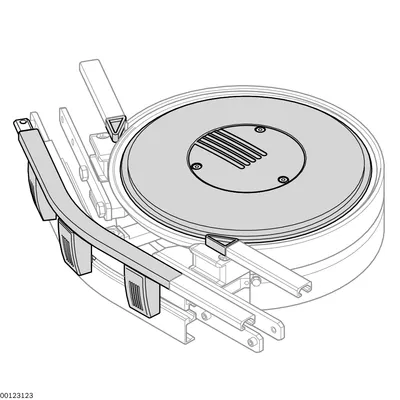

ASSEMBLY KIT VF+ 90 180° CURVE WHEEL

Bosch Rexroth

ASSEMBLY KIT VF+ 65 90° CURVE WHEEL

Bosch Rexroth

ASSEMBLY KIT VF+ 65 45° CURVE WHEEL

Bosch Rexroth

ASSEMBLY KIT VF+ 65 30° CURVE WHEEL

Bosch Rexroth

ASSEMBLY KIT VF+ 65 180° CURVE WHEEL

Compare Lateral guide for workpiece pallets

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Size [b] [mm]	Scope of delivery	Weight [kg]
3842557005	65; 90	Incl. fastening material	0.04
3842531552	65; 90	Incl. fastening material	0.04
3842536787	—	Incl. fastening material	0.04
3842547955	90	Kit incl. fastening parts (as shown)	2.3
3842547954	90	Kit incl. fastening parts (as shown)	1.9
3842547953	90	Kit incl. fastening parts (as shown)	1.7
3842547956	90	Kit incl. fastening parts (as shown)	2.8
3842547951	65	Kit incl. fastening parts (as shown)	2.1
3842547950	65	Kit incl. fastening parts (as shown)	1.7
3842547949	65	Kit incl. fastening parts (as shown)	1.5
3842547952	65	Kit incl. fastening parts (as shown)	2.6
