Bosch Rexroth

Bosch Rexroth 3842547523

BASE UNIT 90+ STS DIRECT

MPN: 3842547523
Category: Drive and return unit STS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

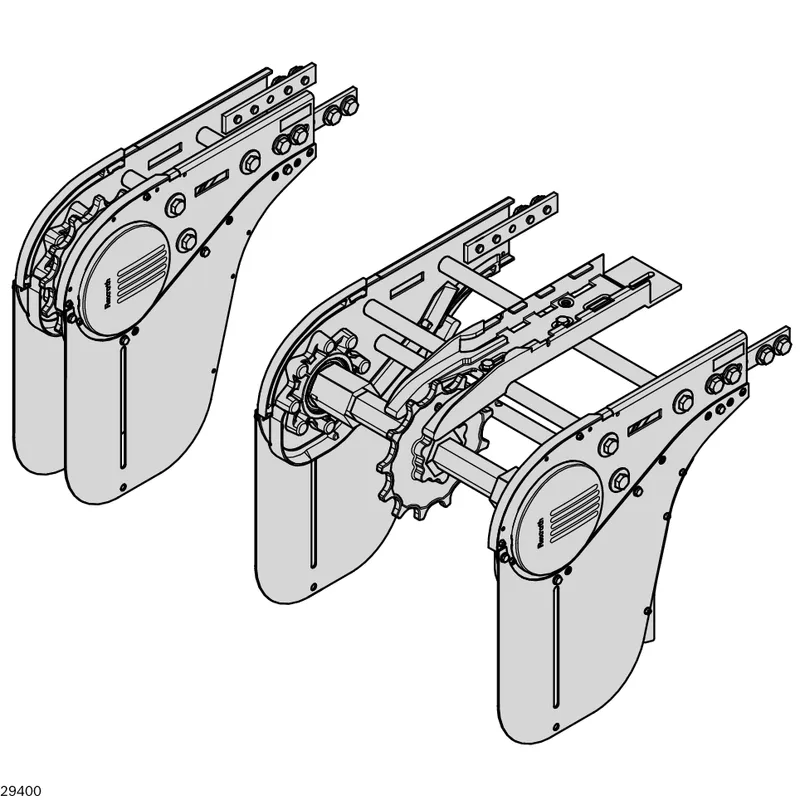

What is the Bosch Rexroth 3842547523?

Base unit STS, VFplus 90 dir.

Reduced noise emission due to slide rails guided in the head drive

Installation of the drive kit possible on the right/left (motor, coupling, flange)

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Side elements with mounting option for attaching holders for lateral guides, or similar

Specifications

Size [b] [mm]	90
Scope of delivery	Incl. fastening material
Delivery information	Connector, chain guard enclosed; Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain guide: PA; Chain wheel: PA; Connector: Non-rusting steel 1.4301; Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA; Housing: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,2
Effective sliding rail length [m]	0,881
Required accessories	Drive kit; Slide rail: Length calculation
Recommended accessories	Active or passive bridge connection kits; Synchronous drive connection kit
Weight [kg]	4.94
