Available on request

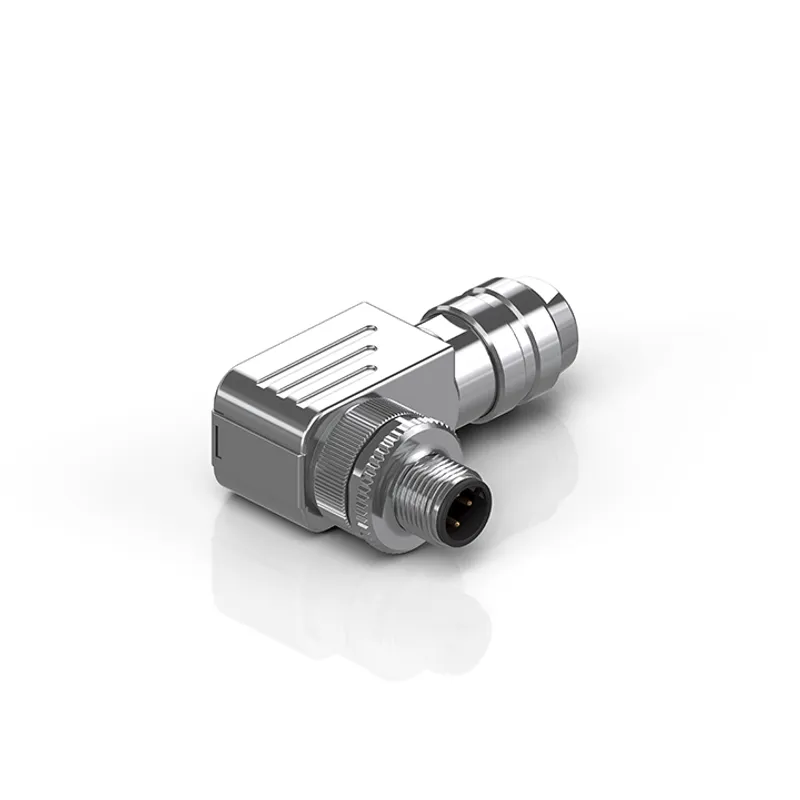

Plug field assembly PROFIBUS, Modbus, RS485, shielded
MPN: ZS1000-0630 · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | EtherCAT and fieldbus connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZS1000-0630 be shipped?
ZS1000-0630 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS1000-0630 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS1000-0630 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS1000-0630, subject to availability and destination.
plug, field assembly, for PROFIBUS, Modbus, RS485, IP67, M12, angled, male, 5-pin, B-coded
Specifications
Specifications
| Shielding | yes |
| Installation size | M12 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 5-pin |
| Coding | B‑coded |
| Rated current | 4 A |
| Rated voltage | 60 V |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 |
| Wire termination | screw connection |
| Max. wire cross-section | AWG18 (0.75 mm²) |
| Max. cable outer diameter | 6.0...8.0 mm |
| A1 | approx. 55.0 mm |
| A2 | 41.8 mm |
