Beckhoff ZS1000-0610

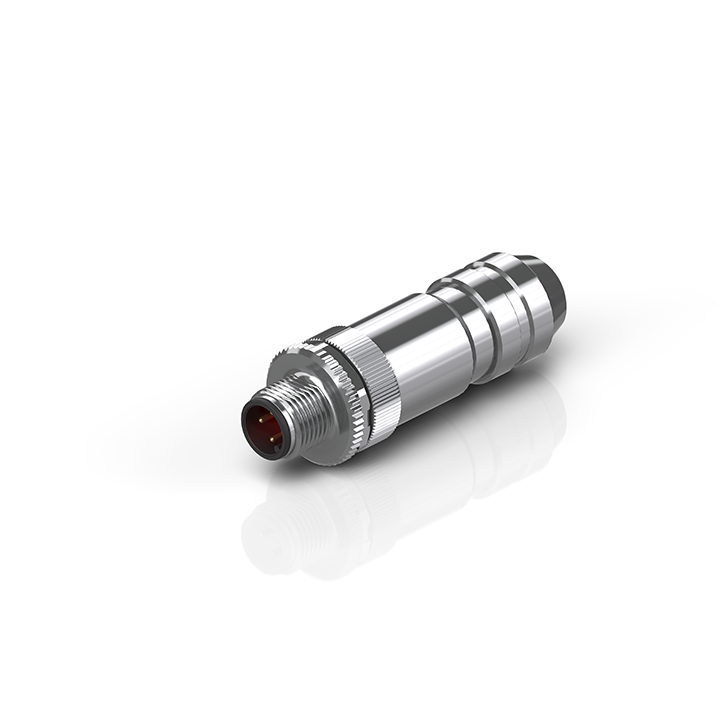

Plug field assembly for PROFIBUS, Modbus, RS485, shielded

MPN: ZS1000-0610
Category: EtherCAT and fieldbus connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS1000-0610?

plug, field assembly, for PROFIBUS, Modbus, RS485, IP67, M12, straight, male, 5-pin, B-coded

Specifications

Shielding	yes
Installation size	M12
Connector type	plug
Contact type	male
Number of positions (face)	5-pin
Coding	B‑coded
Rated current	4 A
Rated voltage	125 V
Recommended torque, nut	0.6 Nm
Mating cycles	≥ 100
Wire termination	screw connection
Max. wire cross-section	0.75 mm² (AWG18)
Max. cable outer diameter	6.0...8.0 mm
A1	62.00 mm
A2	Ø 20.00
