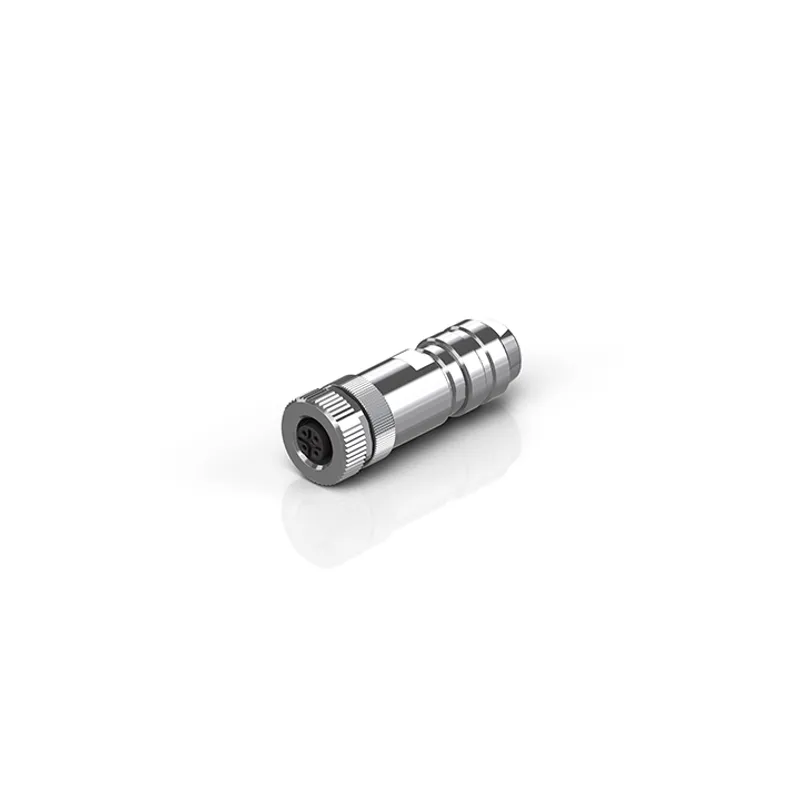

Beckhoff ZS1000-0620

Socket field assembly for PROFIBUS, Modbus, RS485, shielded

MPN: ZS1000-0620
Category: EtherCAT and fieldbus connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS1000-0620?

socket, field assembly, for PROFIBUS, Modbus, RS485, IP67, M12, straight, female, 5-pin, B-coded

Specifications

Shielding	yes
Installation size	M12
Connector type	socket
Contact type	female
Number of positions (face)	5-pin
Coding	B‑coded
Rated current	4 A
Rated voltage	60 V
Recommended torque, nut	0.6 Nm
Mating cycles	≥ 100
Wire termination	screw connection
Max. wire cross-section	0.75 mm² (AWG18)
Max. cable outer diameter	6.0...8.0 mm
A1	57.00 mm
A2	Ø 20.00 mm

ZS1000-0620: frequently asked questions

When can ZS1000-0620 be shipped?

ZS1000-0620 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZS1000-0620 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZS1000-0620 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS1000-0620, subject to availability and destination.
