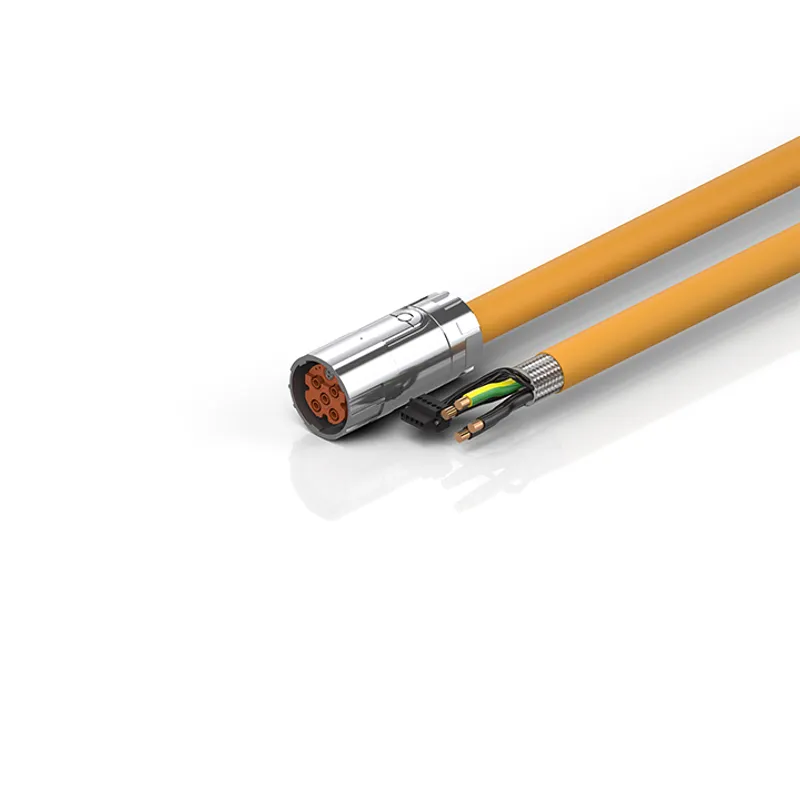

Beckhoff ZK4504-8018-xxxx – Motor connection cable 16 mm² with M40 speedtec® plug, drag-chain suitable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Motor cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK4504-8018-xxxx be shipped?
ZK4504-8018-xxxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK4504-8018-xxxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK4504-8018-xxxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK4504-8018-xxxx, subject to availability and destination.
flexible, drag-chain suitable cable with 5 million bending cycles, max. 180 m/min, max. 5 m/s², min. bending radius = 210 mm (7.5 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 16 mm² + (2 x 1.5 mm²) + (2 x 1.5 mm²)) The cable is UL
Specifications
Specifications
| Installation size | open end |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 8-wire + shield |
| Mating cycles | 25 |
| Wire termination | Clamping yoke connection |
| Max. wire cross-section | AWG26 ... AWG12 (0.13 mm² ... 4 mm²) |
| Operating voltage | max. 1000 V AC (UL) |
| Cross-section (power) | 16 mm² (approx. AWG5) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 23.0 mm ± 0.5 mm (0.9055" ± 0.0197") |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Max. number of cycles | 10 million |
| Jacket color | orange |
| A1 | 100.00 mm |
| A2 | 46.00 mm |
| B1 | 20.00 mm |
| B2 | 27.00 mm |
