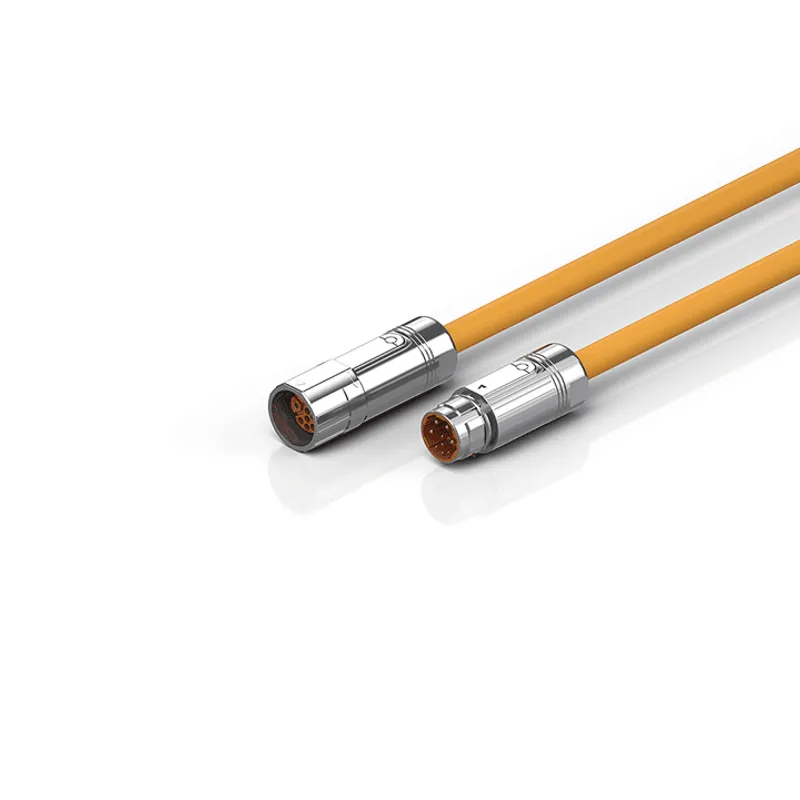

Motor extension cable 1.5 mm² with M23 speedtec® plug, torsionable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Motor cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK4501-8063-xxxx be shipped?
ZK4501-8063-xxxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK4501-8063-xxxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK4501-8063-xxxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK4501-8063-xxxx, subject to availability and destination.
Highly flexible, torsion-resistant cable with 2 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 164 mm (12 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 1.5 mm² + (2 x 0.75 mm²) + (2 x AWG22)). The cable is
Specifications
Specifications
| Installation size | M23 |
| Connector type | socket |
| Contact type | male |
| Number of positions (face) | Power: 3+PE, Signal: 5 |
| Mating cycles | 500 |
| Wire termination | crimp connection |
| Operating voltage | max. 1000 V AC (UL), Uo/U 600/1000 V (VDE) |
| Cross-section (power) | 1.50 mm² (approx. AWG16) |
| Cross-section (signal) | AWG22 (approx. 0.34 mm²) |
| Use | suitable for torsion/robotic application |
| Material jacket | TPU (thermoplastic polyurethane) |
| Outer cable diameter | 13.6 mm ± 0.3 mm (0.5354" ± 0.0118") |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Max. number of cycles | 2 million |
| Jacket color | orange |
| A1 | 79.00 mm |
| A2 | 28.00 mm |
| B1 | 70.00 mm |
| B2 | 20.00 mm |
