Beckhoff KM1644

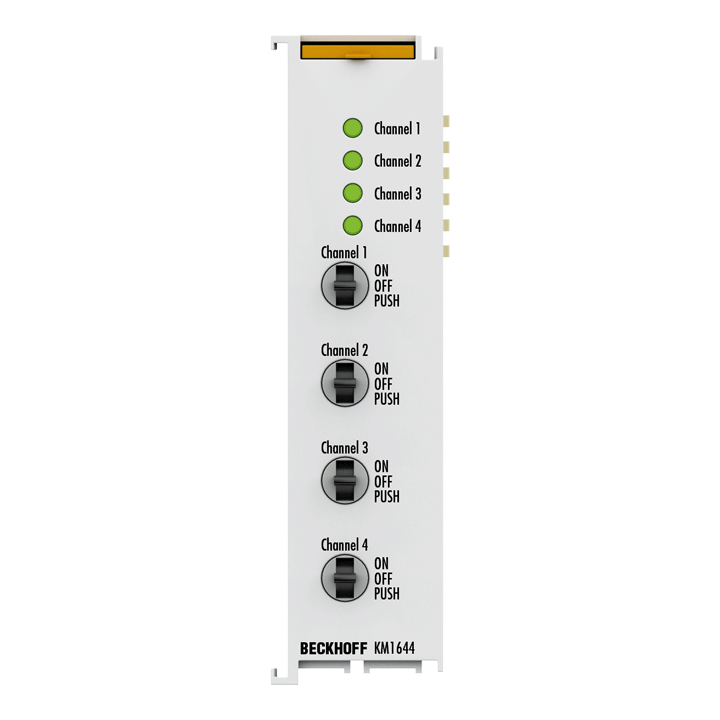

Bus Terminal module, 4-channel digital input, 24 V DC, manual operation

MPN: KM1644
Category: KL1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KM1644?

The digital KM1644 input terminal is used for manual input directly in the process data. The four switches supply their status to the control system as digital bit information. The four LEDs indicate the four output bits from the process data and cannot

Specifications

Specification	manual operation level
Number of inputs	4
Number of outputs	4
Nominal voltage	–
Current consumption K-bus	typ. 20 mA
Current consumption power contacts	– (no power contacts)
Switch settings	ON, OFF, PUSH
Bit width in the process image	4 inputs + 4 outputs
Special features	manual/emergency operation
Weight	approx. 65 g
Storage temperature	-25…+85°C
Operating temperature	0…55°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	specific push-in connection
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
