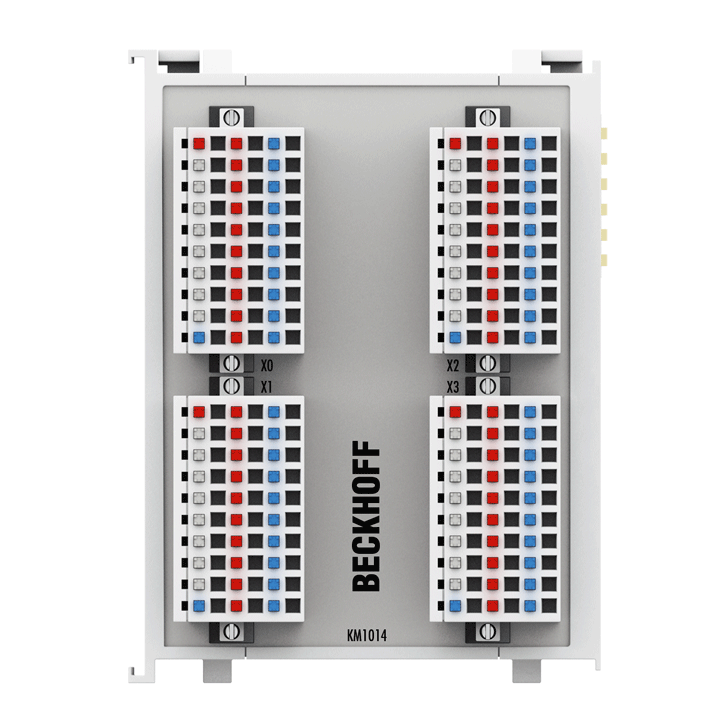

Beckhoff KM1014

Bus Terminal module, 32-channel digital input, 24 V DC, 0.2 ms

MPN: KM1014
Category: KL1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KM1014?

The KM1014 terminal module combines 32 digital inputs with eight channels per connector in a compact design. The control signals are transmitted (electrically isolated) to the higher-level automation unit. Like the standard Bus Terminals, the terminal

Specifications

Connection technology	plug
Specification	EN 61131-2, type 1
Number of inputs	32 (4 x 8)
Nominal voltage	24 V DC (-15%/+20%)
“0” signal voltage	-3…+5 V
“1” signal voltage	15…30 V
Input filter	typ. 0.2 ms
Input current	typ. 5 mA
Current consumption K-bus	typ. 3 mA
Current consumption power contacts	– (no power contacts)
Electrical isolation	500 V (K-bus/field potential)
Bit width in the process image	32 inputs
Configuration	no address or configuration setting
Weight	approx. 90 g with 1-pin connector, approx. 110 g with 3-pin connector
Storage temperature	-25…+85°C
Operating temperature	0…55°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
Design form	compact terminal module with pluggable wiring level
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Connection cross-section	0.08…1.5 mm², stranded wire, solid wire
Stripping length	8 mm
Dimensions (W x H x D)	75 mm x 100 mm x 55 mm
