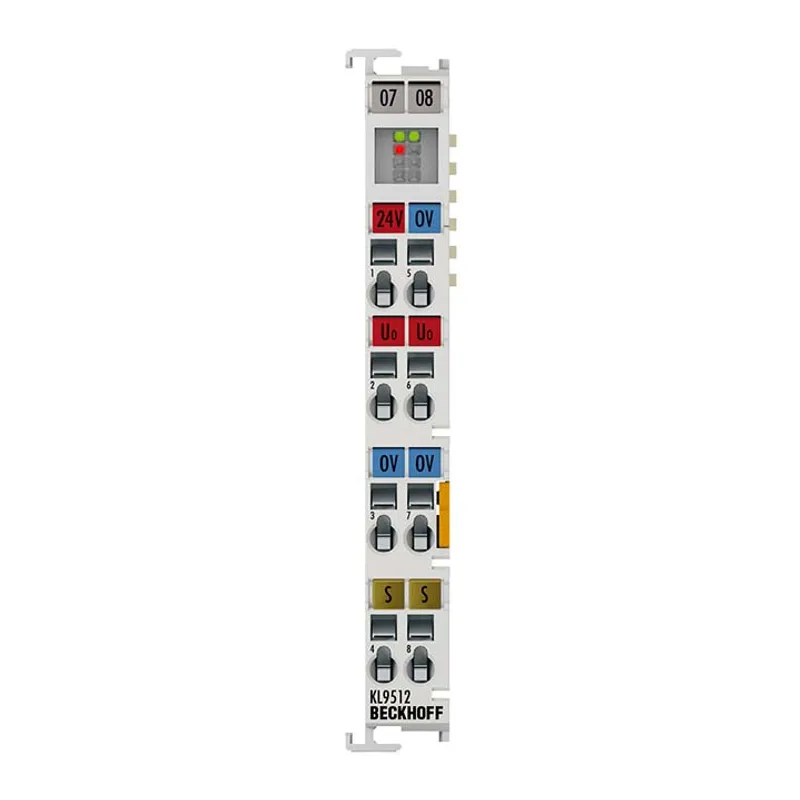

Beckhoff KL9512

Power supply terminal 12 V DC

MPN: KL9512
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9512?

The KL9512 power supply terminal generates an output voltage of 12 V DC from the (24 V DC) input voltage, which can be accessed at the terminal. The following Bus Terminals are also supplied with this voltage via the power contacts. The power LEDs

Specifications

Input voltage	24 V DC (-15%/+20%)
Output voltage	12 V DC ±1%
Output current	0.5 A
Short-circuit proof	yes
Residual ripple	5 mV
Special features	stabilized output voltage, overcurrent LED
Weight	approx. 65 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm

KL9512: frequently asked questions

When can KL9512 be shipped?

KL9512 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up KL9512 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for KL9512 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KL9512, subject to availability and destination.
