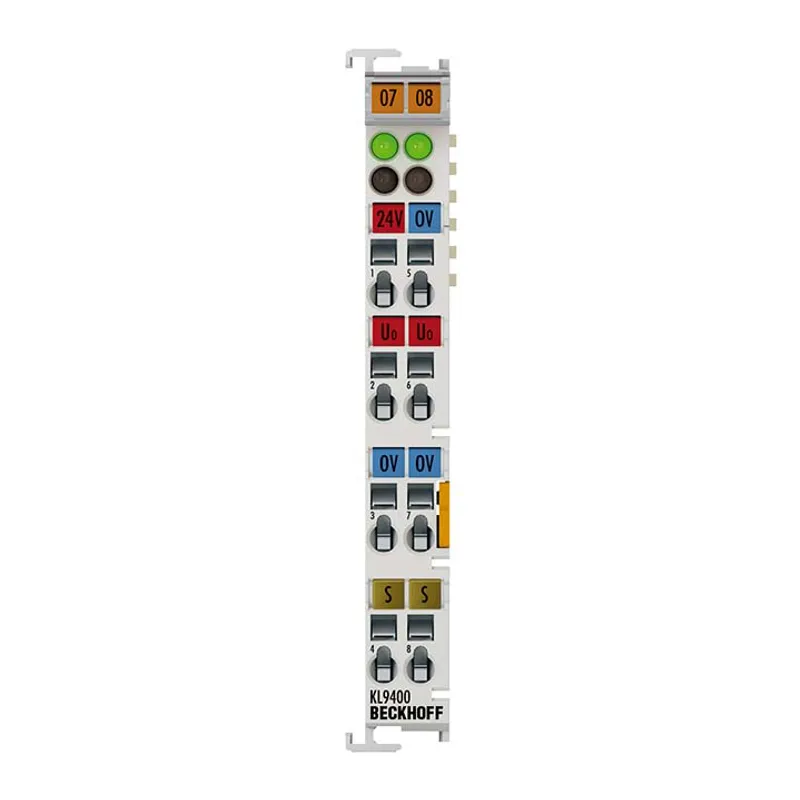

Beckhoff KL9400

Power supply unit terminal for the K-bus

MPN: KL9400
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9400?

The KL9400 power supply unit terminal is used to refresh the K-bus. Data is exchanged between the Bus Coupler and Bus Terminal over the K-bus. Each Bus Terminal draws a certain amount of current from the K-bus (see Current consumption K-bus in the

Specifications

Input voltage	24 V DC (-15%/+20%)
Output voltage	5 V DC
Output current	2 A for K-bus supply
Power contacts	max. 24 V DC/max. 10 A
Short-circuit proof	yes
Weight	approx. 65 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
