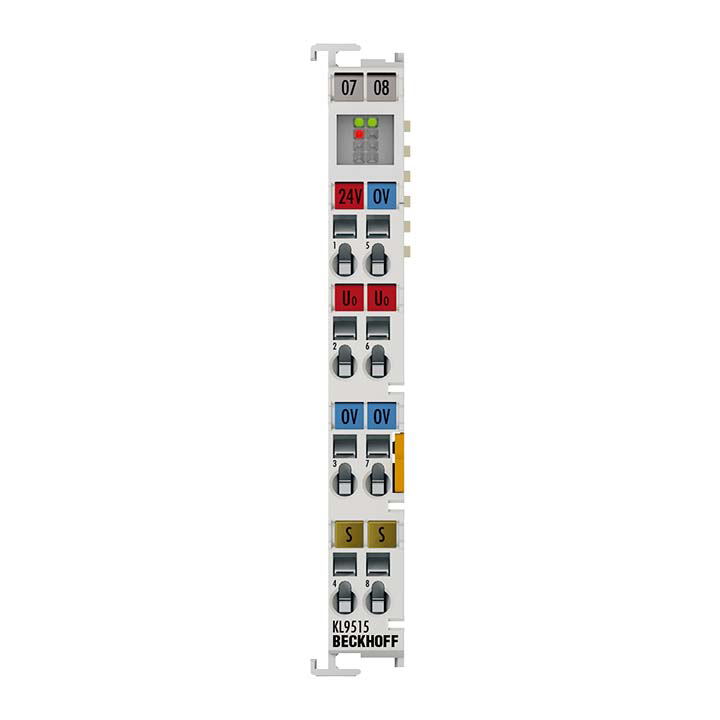

Beckhoff KL9515

Power supply terminal 15 V DC

MPN: KL9515
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9515?

The KL9515 power supply terminal generates an output voltage of 15 V DC from the (24 V DC) input voltage, which can be accessed at the terminal. The following Bus Terminals are also supplied with this voltage via the power contacts. The power LEDs

Specifications

Input voltage	24 V DC (-15%/+20%)
Output voltage	15 V DC ±1%
Output current	0.5 A
Short-circuit proof	yes
Residual ripple	5 mV
Special features	stabilized output voltage, overcurrent LED
Weight	approx. 65 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
