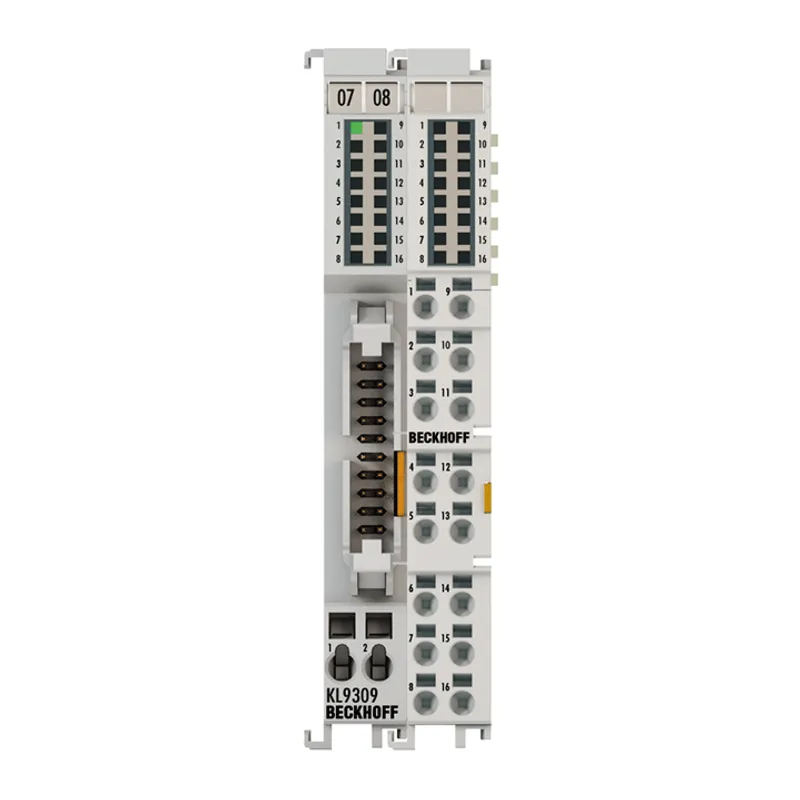

Beckhoff KL9309

Adapter terminal for manual operating modules

MPN: KL9309
Category: KL85xx | Manual operating

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9309?

The KL9309 adapter terminal has 16 terminal points, which provide the I/Os of the KL85xx manual operating modules. In addition, 24 V DC is fed in via two terminal points (1 x 0 V, 1 x 24 V). The terminal can be connected to the manual operating module

Specifications

Power supply	24 V DC (-15%/+20%)
Power contacts	max. 24 V DC/max. 10 A
Nominal voltage	24 V DC (-15%/+20%)
Electrical isolation	500 V (power contact/supply voltage/fieldbus)
Special features	passive Bus Terminal for the connection of KL85xx manual operating modules
Weight	approx. 85 g
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
