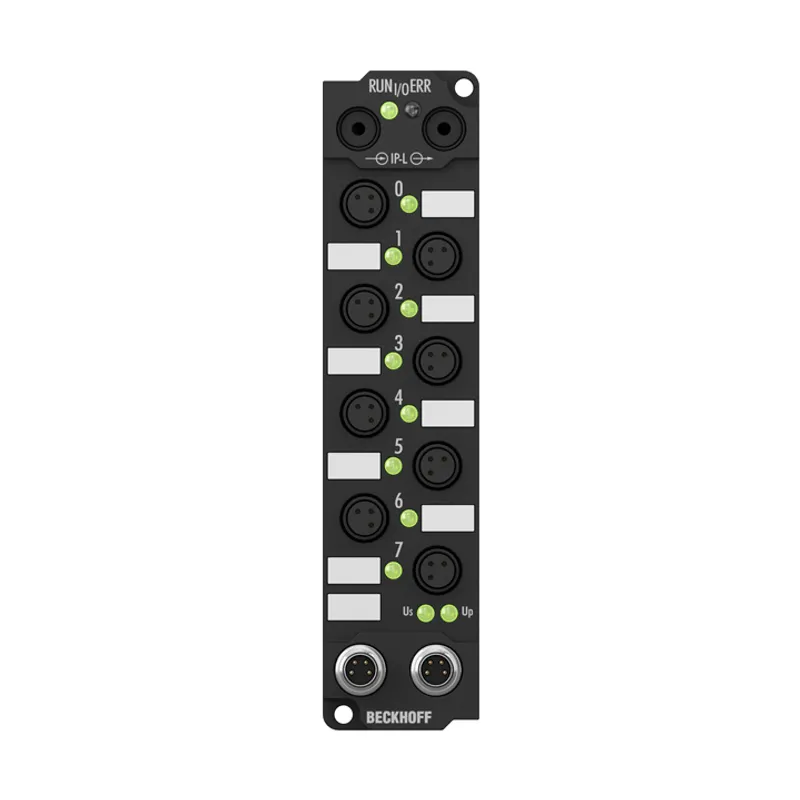

Beckhoff – IE2040 Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), Ø8

Name: Beckhoff – IE2040 Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), Ø8
Brand: Beckhoff
SKU: IE2040

MPN: IE2040 · Brand: Beckhoff

Price on request

Discontinued by Beckhoff — we can still source the original IE2040 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O service products (discontinued)
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the IE2040 now that it is discontinued?

Yes. Beckhoff has discontinued the IE2040, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IE2040 be shipped?

IE2040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IE2040 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IE2040 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IE2040, subject to availability and destination.

The IE2040 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2 A each, although the total current is limited to 12 A. The outputs

Beckhoff IE2040 — Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), Ø8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of outputs	8
Output connections	8 mm, snap type
Load type	resistive, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2 A per channel, individually short-circuit proof, sum current max. 12 A (channel 0…3: ∑ 4 A, 4+5: ∑ 4 A, 6+7: ∑ 4 A)
Short-circuit current	typ. 4 A
Auxiliary power current	typ. 50 mA per channel
Current consumption from U S (without sensor current)	25 mA
Power supply connection	feed: 2 x M8 male socket, 4-pin; no downstream connection
Bit width in the process image	8 outputs
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
